Energy saving double frequency vibrating screen for mining
- 30 Set / Sets per Month
- Tianjin, Dalian,Shanghai,Kunshan,Guangzhou,Fuzhou,Lianyungang,etc.
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
- 30 days
Product Details
Place of Origin: | China | Type: | Circular | Certification: | CE,ISO9001,ISO14001,OHSAS18001 |
Application: | Ore | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 years |
Weight: | 2-50Tons | Condition: | New |
Product Description

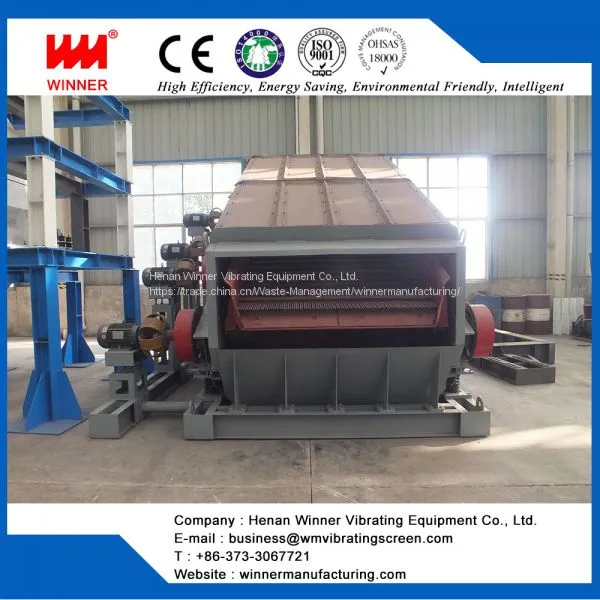

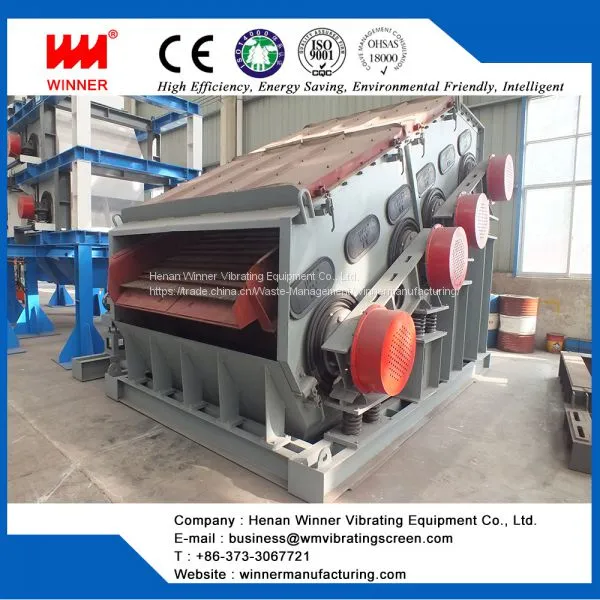

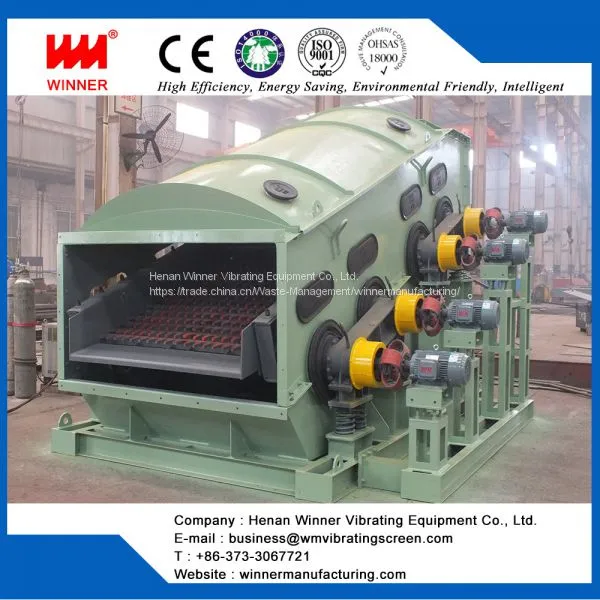

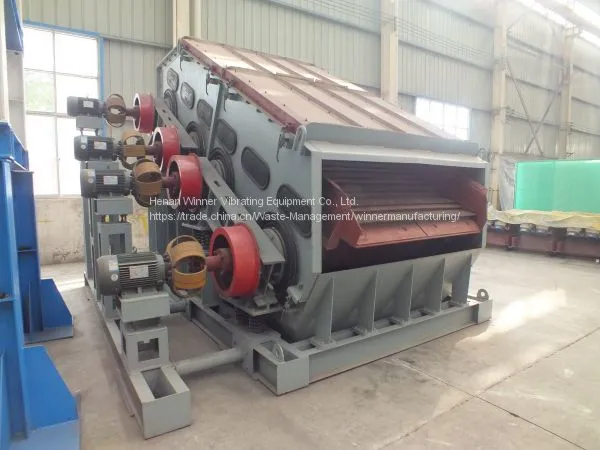

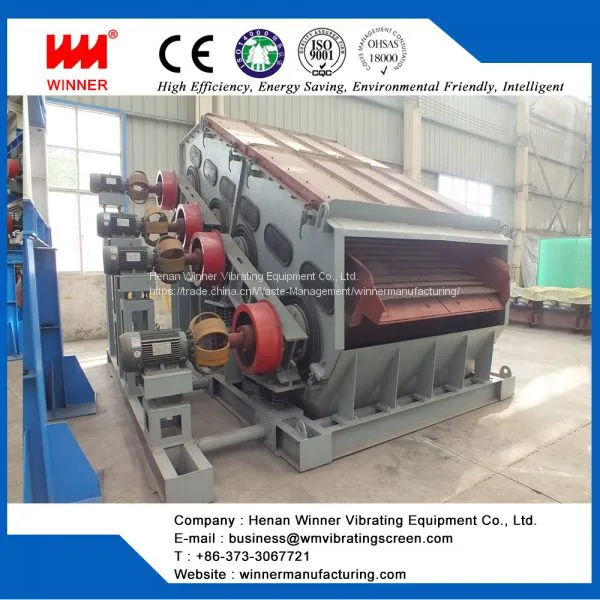

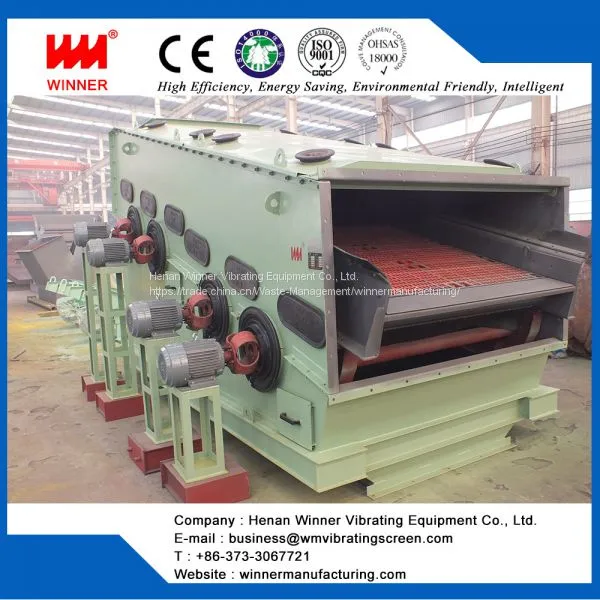

Energy saving double frequency vibrating screen for mining
Overview of Energy saving double frequency vibrating screen for mining:
Winner Group to achieve national environmental protection requirements,improve the sintering plant conditions of the environment, design a new ultra-environmental protection energy-saving double frequency vibrating screen, completely changed the sintering sieve site use environment, and effectively reduce the cost of sintering, to create green steel.
Advantages of Energy saving double frequency vibrating screen for mining:
1. The most advanced sieve concept, unique sieve structure.
A. By segment control, to achieve the sieve plate variable frequency, variable amplitude, variable trajectory movement, to achieve the purpose of efficient screening.
B. The use of patent sieve plate, a single sieve plate above the different frequency of loading, plugging the chance to reduce 80%.
2.Super environmental protection.
A. Double frequency only sieve plate vibration, sieve body does not vibrate, and truly achieve a full static seal, the structure of the sieve inside the formation of negative pressure, no vent point, the dust does not leak.
B. Double frequency screen sieve box to increase the internal walls of special insulation materials, compared to the traditional grizzly screen and elliptical screen can effectively reduce the noise 6-10dB.
3. super energy-saving.
Under the conditions of the same industrial and mining conditions, the weight of the compound frequency sieve is only 1/5 of that of the traditional elliptical sieve and 3/5 of the grizzly screen, so the double frequency screen is more than 1 times than the traditional oval sieve 1/3.
4. Ultra-high screening efficiency, large processing capacity.
The single-layer double-surface sieve perforation rate can reach 40%, through the frequency, amplitude and other means to improve the effective screening efficiency of 90%.
5. Super easy to maintain.
Double frequency screen using the overall replacement of the method, the replacement of a sieve 2 individuals only 2 hours will be able to resume production use, maintenance is simple, low-cost time.
6. Minimize construction costs.
Double frequency screen adopts the sectional vibration mode, which is 2 - 3 times of the normal dynamic load when starting and stopping. It greatly reduces the cost of the infrastructure construction and has obvious economic benefits.
7. The minimum spare parts consumption.
Double frequency screen bearing with Self-circulation cooling system, the exciter temperature can be controlled within 65 degrees, the bearing life is more than three times the traditional screen, the only oil required for the traditional screen sieve One-tenth of the machine.
8. The most complete combination.
According to customer requirements on the size of the material used in a variety of combinations, such as V-shaped, eight-shaped, laminated, etc. For viscous water-containing materials using multi-channel thin layer screening. For large capacity, double frequency granularity thickness probability screening principle, a variety of combinations to meet customer needs.
Applications of Energy saving double frequency vibrating screen for mining:
Mainly used in iron and steel enterprises solvent screening system (metallurgical industry sintering, blast furnace trough, coking, raw materials, etc.) and gravel aggregate system of construction industry. Using low amplitude, high frequency and other characteristics, for less than 5mm fine material screening is more excellent, but also to other industries, mainly for dry material screening. The sieve plate mainly bar, comb teeth, round steel welding, punching and so on.
Technical parameter table of Energy saving double frequency vibrating screen for mining:
Model | Aperture size(mm) | Motor speed r/min | Motor power kw | Amplitude mm | Feed size mm | Capacity t/h | Outside Dimension(L*W*H) |
WFPS-40100 | 0-5 | 720-1440 | 8*18.5 | 6-9 | ≤5 | 0-600 | 10800*6208*5500 |
WFPS-36100 | 0-5 | 720-1440 | 8*15 | 6-9 | ≤5 | 0-520 | 10800*5908*5500 |
WFPS-33100 | 0-5 | 720-1440 | 8*15 | 6-9 | ≤5 | 0-450 | 10800*5908*5500 |
WFPS-3082 | 0-5 | 720-1440 | 6*11 | 6-9 | ≤5 | 0-360 | 9000*5208*5000 |
WFPS-2575 | 0-5 | 720-1440 | 6*7.5 | 6-9 | ≤5 | 0-280 | 8196*4650*4500 |
WFPS-2075 | 0-5 | 720-1440 | 6*5.5 | 6-9 | ≤5 | 0-230 | 8196*4150*4500 |
