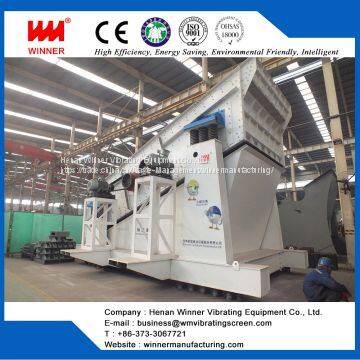

Large biaxial circular vibrating screen, mining vibrating sieve for coal
Application of Large biaxial circular vibrating screen, mining vibrating sieve for coal:
WDY Large biaxial circular vibrating screen, mining vibrating sieve for coal is round, it is a large-scale screening equipment developed by our company for the coal industry. The screen assembly adopts the most advanced ring groove riveting, which has the characteristics of strong and durable, not easy to plug the hole, large processing capacity and so on.
Overview of Large biaxial circular vibrating screen, mining vibrating sieve for coal:
1. Large biaxial circular vibrating screen, mining vibrating sieve for coal trajectory is round, more conducive to material stratification and through the sieve.
2. Large biaxial circular vibrating screen, mining vibrating sieve for coal consists of sieve body, damping spring, excitation device, motor bracket, transmission belt, motor.
3. Large biaxial circular vibrating screen, mining vibrating sieve for coal adopts two motor driving two exciter, and through a toothed belt connecting the two axes to maintain synchronization, convenient disassembly and maintenance.
Features of Large biaxial circular vibrating screen, mining vibrating sieve for coal:
1. Large biaxial circular vibrating screen, mining vibrating sieve for coal is our company for the coal industry developed large-scale screening equipment, with large processing capacity, high screening efficiency.
2. Sieve body assembly using the most advanced ring groove riveting, with strong and durable, not easy to plug holes and other characteristics.
3. By adjusting the eccentric block’s angle of vibrator, affecting the exciting force, and thus adjust the amplitude of the vibrating screen.
4. Large carrying capacity, long service life.
Applications of Large biaxial circular vibrating screen, mining vibrating sieve for coal:
1. Metallurgical beneficiation grading operations.
2. Coal preparation of dry materials grading operations.
3. Building materials of dry materials grading operations.
4. Power industry of dry materials grading operations.
Technical Data Sheet of Large biaxial circular vibrating screen, mining vibrating sieve for coal:
Model |
Sieve area (m²) |
Sieve size (mm) |
Granularity (mm) |
Capacity |
Double amplitude (mm) |
Vibration time(r/min) |
Motor |
Single point of maximum dynamic load(N) |
|
t/h |
Model |
Power(kw) |
|||||||
WDY3061 |
18.3 |
5-200 |
220-1800 |
8-11 |
730 |
Y200L-4 |
30x2 |
12000 |
|
2WDY3061 |
2x18.3 |
up:50-200 |
220-1800 |
8-11 |
730 |
Y200L-4 |
30x2 |
12000 |
|
down:5-50 | |||||||||
WDY3073 |
21.9 |
5-200 |
220-1800 |
10-12 |
708 |
Y200L-4 |
30x2 |
12000 |
|
2WDY3073 |
2x21.9 |
Up:50-200 down:5-50 |
620-1800 |
Y200L-4 |
30x2 |
15000 |
|||
WDY3373 |
24.1 |
5-200 |
240-2200 |
10-12 |
708 |
Y200L-4 |
30x2 |
15000 |
|
2WDY3373 |
2x24.1 |
up:50-200 down:5-50 |
680-2200 |
Y200L-4 |
30x2 |
18500 |
|||
WDY3673 |
26.3 |
5-200 |
260-2400 |
10-12 |
708 |
Y225M-4 |
45x2 |
19000 |
|
2WDY3673 |
2x26.3 |
up:50-200 down:5-50 |
740-2400 |
Y225M-4 |
45x2 |
22000 |
|||
