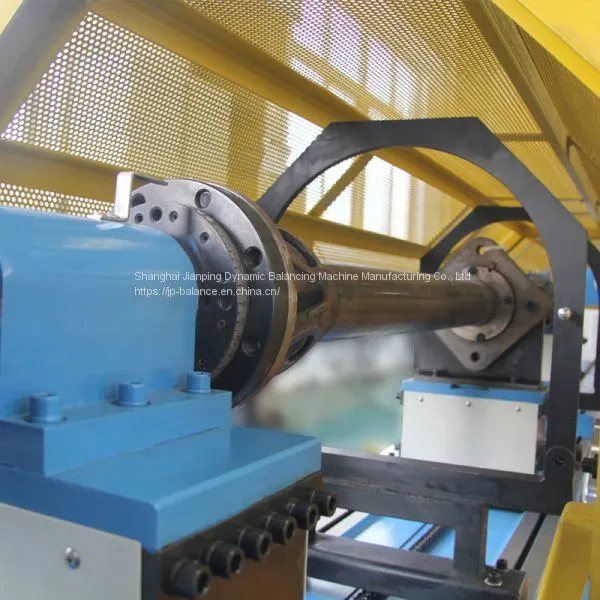

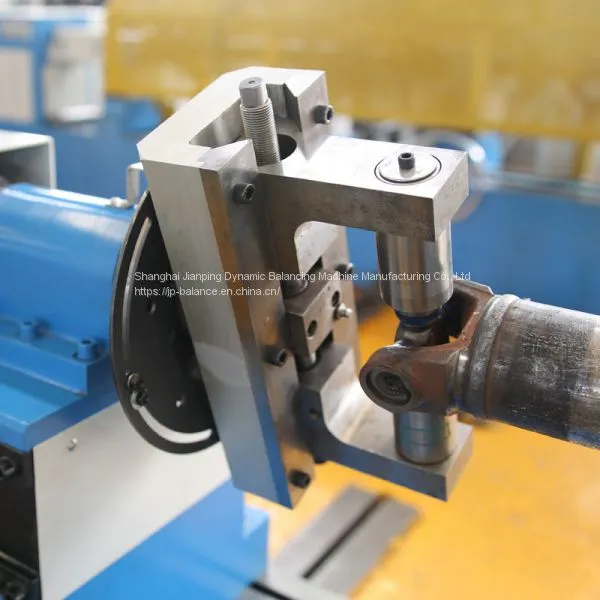

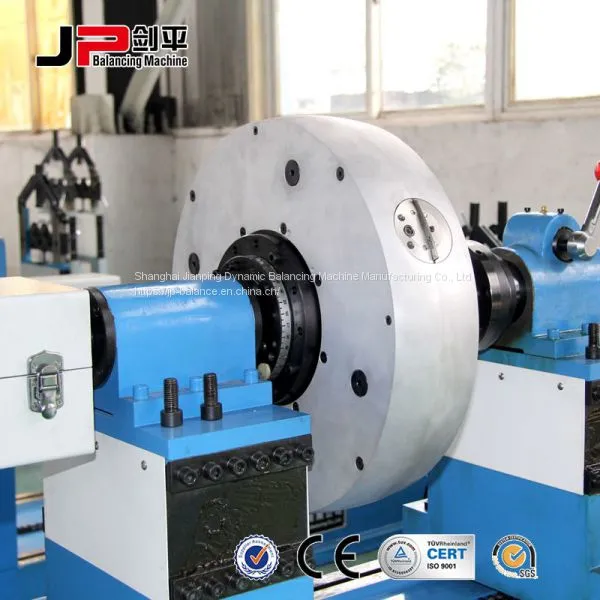

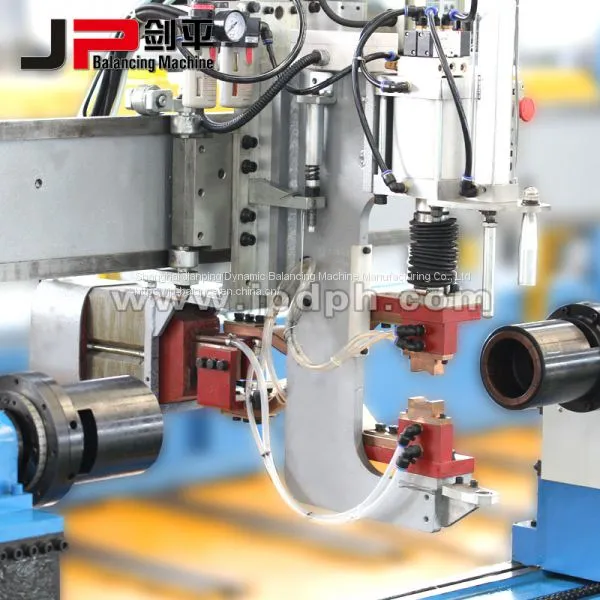

Help Center2018 Balancing Cardan,balancing Equipment for Cardan Shaft Balance
Related Products
-
2018 Driveshaft Balancing Machine , Balancing DriveshaftUS$ 1000 - 20000MOQ: 1 Set -
2017 Motor Rotor, Generator Rotor, Armature Dynamic Balancing MachineUS$ 10000 - 20000MOQ: 1 Set
-
Cooling Fan Automative Balancing MachineUS$ 1000 - 14000MOQ: 1 Set
-
2018 High-quality Micro-disk-shaped Vertical Balancing Machine in Hot SaleUS$ 1000 - 10000MOQ: 1 Set
-
2018 High-precise Fly Wheel Single-plane Vertical Balancing MachineUS$ 1000 - 12000MOQ: 1 Set
| Product Name | Drive shaft Balancing Machine |
| Application | Drive shaft |
| Dimensions | 3600mm*600mm*1300mm |
| Gross weight | 1200 kg |
| Drive power | 1.5 kw |
| Power supply | 220V 50Hz, or customization |
| Number of packages | one Fumigated wooden case |
| Delivery time | within 10 days |
| Precision unbalancing amount | 5 g.mm/kg |
| Warranty | 12 months |
• Specially designed brackets transmit mechanical force with high rigidity
• Durable and reliable sensor possesses high sensitivity
• Permanent calibration brings high accuracy with a permission of large initial unbalance amount
• Advanced electrical measuring system and friendly man-machine interface
This balancing machine is equiped with hard bearing structure. Electromechanical transducer adopts piezoelectric sensor Large output,small size, stable performance .Mainly used in the production and repair of all kinds drive shaft factories.With the advantages of high measuring speed, high precision, easy to load and unload, Investment at low cost .it is an ideal device for shaft manufacturers and maintenance factories.
Technical data at a glance |
PHCW-100/200 |
Mass Scope of Workpiece(kg) |
100/200 |
Max Diameter of Workpiece (mm) |
Ø130 |
Max Length of Workpiece (mm) |
2000 |
Shaft tube diameter of workpiece(mm) |
Ø120 |
Balancing speed(mm) |
1600~3200/1200~3200 |
Rotation Speed of the Main Axis (r/min) |
-3200 |
Motor Power (KW) |
1.5(variable-frequency) |
Universal joint torque(N.M) |
60 |
Min Achievable Residue Unbalance Amounte mar |
5g· mm/kg |
Once reduced rate (%) |
≥85 |
