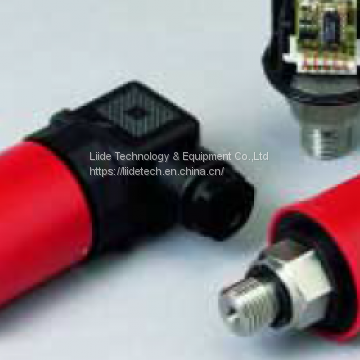

Huba 501 Pressure transmitter
Relative 0 – 40 bar
Absolute 2,5 – 16 bar
The distinct advantages
• Compact construction
• Automated manufacture in large
quantities for ideal price/performance
ratio
• Robust ceramic sensor
technology
• High resistance to extreme
temperatures
• No mechanical aging
• No mechanical creepage
Technical overview
The pressure transmitter of type series
501 with proved ceramic technology,
features calibrated and amplified
sensor signals which are available
as standardized current outputs.
Various application-specific pressure
and electrical connections can
be provided.
Legend to cross-section drawing
1 Connection Fitting
2 Seals
3 Ceramic element
4 Hybrid electronics
5 Connector DIN 43650
Pressure ranges
Relative pressure/Gage
(measurement of pressure relative
to ambient pressure).
Absolute pressure.
Overload
2x measuring range (fs)
Rupture pressure
3x measuring range (fs)
(0 – 40 bar max. 90 bar)
Accuracy
Total of linearity, hysteresis and repeatability
Adjustment accuracy zero point and
full scale (repeatable, stable)
0 – 5 V ± 50 mV
1 – 6 V ± 50 mV
0 – 10 V ±100 mV
4 – 20 mA ±0.16mA
10 – 90 % ± 1%
Housing material
Cover Pa 6
Materials in contact with the medium
Ceramic/Stainless steel 1.4305
(AISI 303)
Sealing materials:
optionally Viton, EPDM, NBR, silicone,

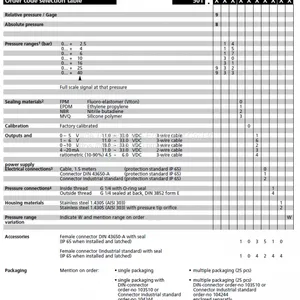

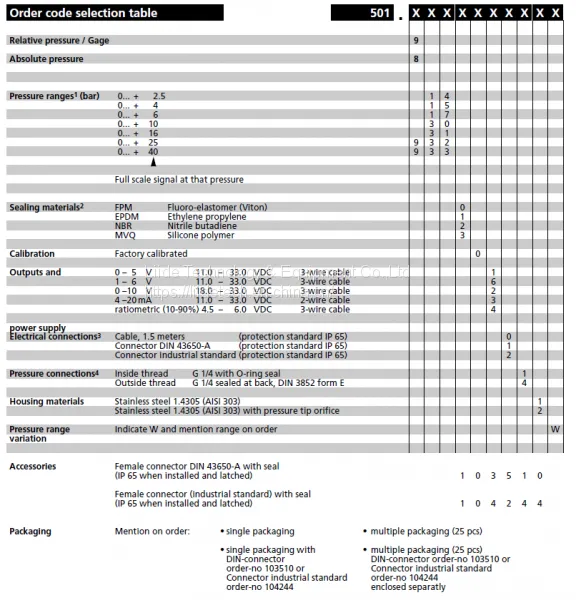

according to order code selection
table.
Temperature influences
Medium and ambient temperature
–15 °C to + 80 °C
TC zero point 2.5 to 40 bar
TC sensitivity
typically
Load cycle
Dynamic response
Suitable for static and dynamic
measurements.
Response time

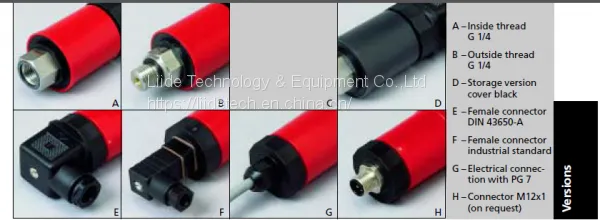

Pressure connections
Inside thread G 1/4
Outside thread G 1/4
DIN 3852 form E
Weight
Inside thread 50 grams
Outside thread 70 grams
Installation arrangement
Unrestricted.
Signal Power supply
• 0 – 5 V 11 – 33 VDC
3-wire cable
• 1 – 6 V 11 – 33 VDC
3-wire cable
• 0 – 10 V 18 – 33 VDC
3-wire cable
• 4 – 20 mA 11 – 33 VDC
2-wire cable
• 10 – 90% 4.5 – 6.0 VDC
3-wire cable
ratiometric
• Short circuit-proof and protected
against polarity reversal. Each
connection against other with max.
+/– supply voltage.
Load
0 – 5 V > 10 kOhm/
1 – 6 V > 10 kOhm/
0 – 10 V > 10 kOhm/
4 – 20mA _ [Ohm]
10– 90%
> 10 kOhm/
Current consumption
With max. signal output:
0 – 5 V
1 – 6 V
0 – 10V
4 – 20mA
10 – 90%
Electrical connections/protection class
Cable 1.5 meters, IP 65
Connector DIN 43650-A, IP 65
Connector industrial standard, IP 65
Calibration by customer
Calibrated in the factory.
