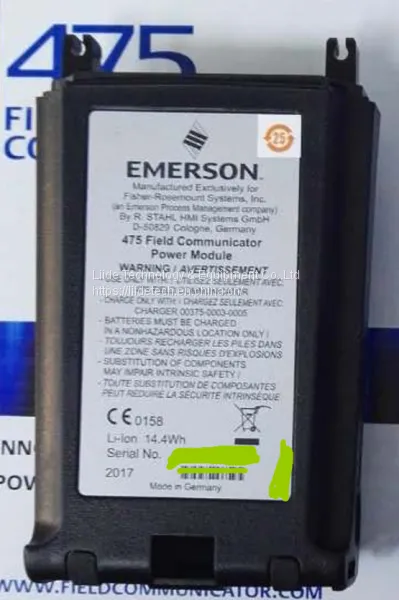

Emerson 475 Field communciator Rechargeable Lithium Ion Li-Ion Power Module/Battery

Emerson 475 Field communciator  Rechargeable Lithium Ion  Li-Ion Power Module/Battery

part no.: 00475-0002-0022

Make: Emerson

Origin: Germany

Used for Emerson 475 field communicator.

Shipping weight:0.7kg

A Lithium Ion (Li-Ion) battery used to power the 475 Field

Communicator. The battery has a green, 6-pin power supply/charger

connector. The battery must be charged by the Field Communicator

power supply/charger with the matching green connector. A fully charged Li-Ion Power Module is capable of delivering power for 40 hours of typical field use.

BATTERY SPECIFICATIONS

Battery type Two rechargeable Li-Ion cells, not serviceable

Connection Green six-pin mini din (female) jack on the side of the battery

Charge +50°F to +104°F (10°C to +40°C)

Guidelines for the Li-Ion battery (Power Module)

• Do not recharge the battery in hazardous areas. The power

supply/charger is not IS-approved.

• Charge or power using only the Field Communicator power

supply/charger.

• Recharge the battery frequently, preferably after each use. Limit full

discharges, if possible.

Lights Five lights (LEDs) on the side of the battery indicate the remaining

level of battery charge. When you press and release the Charge

Indicator button below these lights, the lights slowly illuminate. Each

light indicates 20 percent of remaining charge, and the battery is fully

charged when all of the lights are illuminated. See Figure 2-1 on

page 2-12 for the location of the Charge Indicator button.

Operating time 10 or more hours when the backlight is to highest setting

20 or more hours when the backlight is off

80 or more hours when using standby

Storage -4°F to +131°F (-20°C to +55°C) less than one month

Storage Guidelines for the Li-Ion Battery

• Use a location at room temperature or cooler. Prolonged storage at

higher temperatures can permanently reduce the charge capacity

and performance.

• Ensure the remaining charge is at or near mid-capacity. The charge

will slowly drain during storage. Periodically recharge the battery

during storage to ensure it does not drain to low levels.

Warnings:

You can install or remove the Lithium Ion (Li-Ion) battery (Power

Module) in a hazardous area environment.You cannot charge the

battery in this environment because the power supply/charger

(00375-0003-0005) is not IS-approved.
