Emerson 475 Field communciator Rechargeable Lithium Ion Li-Ion Power Module/Battery
part no.: 00475-0002-0022
Make: Emerson
Origin: Germany
Used for Emerson 475 field communicator.
weight:0.5kg

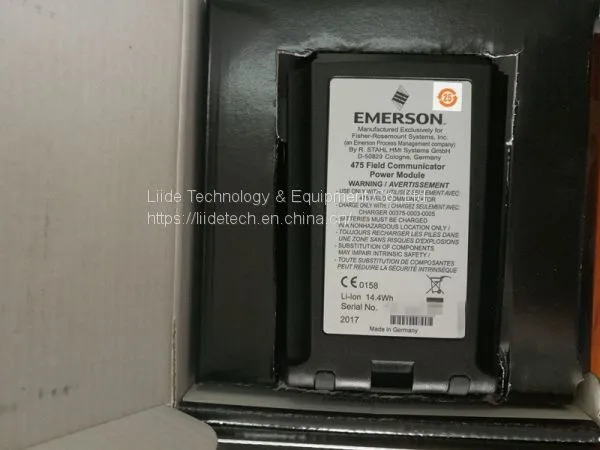

A Lithium Ion (Li-Ion) battery used to power the 475 Field
Communicator. The battery has a green, 6-pin power supply/charger
connector. The battery must be charged by the Field Communicator
power supply/charger with the matching green connector. A fully charged Li-Ion Power Module is capable of delivering power for 40 hours of typical field use.
BATTERY SPECIFICATIONS
Battery type Two rechargeable Li-Ion cells, not serviceable
Connection Green six-pin mini din (female) jack on the side of the battery
Charge +50°F to +104°F (10°C to +40°C)
Guidelines for the Li-Ion battery (Power Module)
• Do not recharge the battery in hazardous areas. The power
supply/charger is not IS-approved.
• Charge or power using only the Field Communicator power
supply/charger.
• Recharge the battery frequently, preferably after each use. Limit full
discharges, if possible.

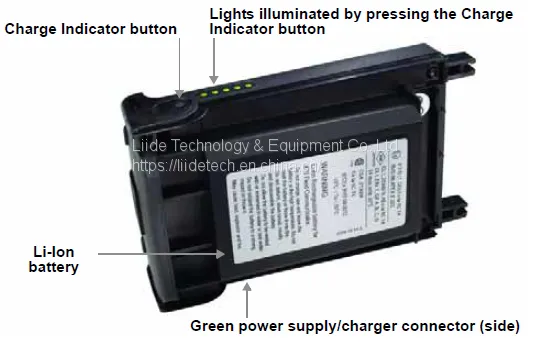

Lights Five lights (LEDs) on the side of the battery indicate the remaining
level of battery charge. When you press and release the Charge
Indicator button below these lights, the lights slowly illuminate. Each
light indicates 20 percent of remaining charge, and the battery is fully
charged when all of the lights are illuminated. See Figure 2-1 on
page 2-12 for the location of the Charge Indicator button.
Operating time 10 or more hours when the backlight is to highest setting
20 or more hours when the backlight is off
80 or more hours when using standby
Storage -4°F to +131°F (-20°C to +55°C) less than one month
Storage Guidelines for the Li-Ion Battery
• Use a location at room temperature or cooler. Prolonged storage at
higher temperatures can permanently reduce the charge capacity
and performance.
• Ensure the remaining charge is at or near mid-capacity. The charge
will slowly drain during storage. Periodically recharge the battery
during storage to ensure it does not drain to low levels.
Warnings:
You can install or remove the Lithium Ion (Li-Ion) battery (Power
Module) in a hazardous area environment.You cannot charge the
battery in this environment because the power supply/charger
(00375-0003-0005) is not IS-approved.
