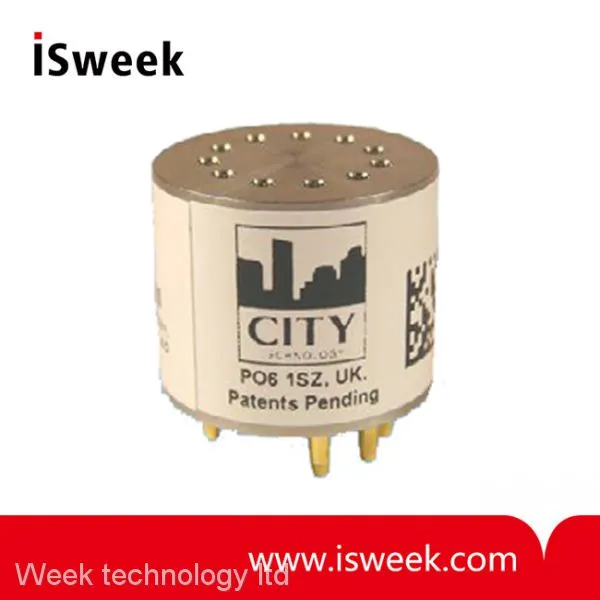

IRceL CH4 NDIR Methane (CH4) Gas Sensor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
City Technology Ltd
Place of Origin:
United Kingdom
Model Number:
IRceL CH4
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
OPC-N3 PM2.5 Particle SensorNegotiableMOQ: 1 Piece -
EDT-01 Electronic Diffusion TubeNegotiableMOQ: 1 Piece
-
CO-CE High Concentration Carbon Monoxide (CO) SensorUS$ 30 - 80MOQ: 1 Piece
-
CO-CF Carbon Monoxide (CO) SensorUS$ 30 - 60MOQ: 1 Piece
-
PrimePell Infrared Gas Sensor for Oil Industry Methane SensorNegotiableMOQ: 1 Piece
Brand Name
City Technology Ltd
Place of Origin
United Kingdom
Model Number
IRceL CH4
Usage
Gas Sensor
Theory
Other, NDIR Gas Sensors
IRceL CH4 NDIR CH4 Sensor Description
Miniature infrared sensor with on-board EEPROM and thermistor
IRceL CH4 NDIR CH4 Sensor Key Features & Benefits:
• Integrated thermistor for accurate temperature compensation
• EEPROM programmed with sensor specfic performance characteristics
• Compact Size
IRceL CH4 NDIR CH4 Sensor Technical Specifications
| MEASUREMENT | |
| Operating Principle |
Non-Dispersive Infra-Red (NDIR) |
| Measurement Range |
0-5% vol. Methane |
| Accuracy (-20°C to +50°C) |
Within ± (0.1% vol CH 4 + 4% of concentration) |
| Response Time (T90) |
|
| Repeatability: Zero 5% CH |
|
| Linearity |
See Operating Principles OP17 |
| ELECTRICAL | |
| Supply Voltage |
3-5 VDC, 3.3 V to utilise EEPROM calibration |
| Power Consumption |
|
| Recommended Lamp Frequency |
2 Hz, 50% duty cycle |
| Minimum Resolution |
0.03% CH 4 at zero 0.1% CH 4 at range |
| Warm-up Time |
|
| MECHANICAL | |
| Housing Material |
Stainless Steel (see back page) |
| Weight |
23 g |
| Orientation |
Any |
| ENVIRONMENTAL | |
| Typical Applications |
General Purpose Portable Fixed Methane Detection |
| Operating Temperature Range |
-20°C to +50°C |
| Operating Humidity Range |
0 to 99% RH (non-condensing) |
| Operating Pressure Range |
700 to 1300 mBar with compensation |
| LIFETIME | |
| Long Term Zero Drift |
|
| Recommended Storage Temp |
-20°C to +50°C |
| MTBF |
> 5 years |
| Standard Warranty |
12 months from date of despatch |
IMPORTANT NOTE:
Connection should be made via PCB sockets only. Soldering to the pins will seriously damage your sensor.
All performance data is based on conditions at 20°C, 50%RH and 1013mBar, using City Technology recommended circuitry. For sensor performance data under other conditions, refer to the Characterisation Note and Operating Principles.
