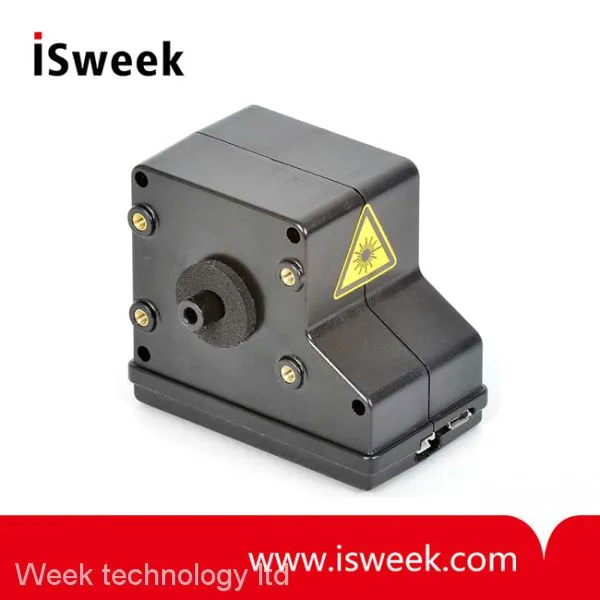

Help CenterOPC-N3 PM2.5 Particle Sensor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
OPC-N3
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
EDT-01 Electronic Diffusion TubeNegotiableMOQ: 1 Piece -
CO-CE High Concentration Carbon Monoxide (CO) SensorUS$ 30 - 80MOQ: 1 Piece
-
CO-CF Carbon Monoxide (CO) SensorUS$ 30 - 60MOQ: 1 Piece
-
PrimePell Infrared Gas Sensor for Oil Industry Methane SensorNegotiableMOQ: 1 Piece
-
Cirius1 Infrared Methane Sensor Infrared CH4 Sensor for HydrocarbonsNegotiableMOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
OPC-N3
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
OPC-N3 PM2.5 Particle Sensor Schematic Diagram
* PM1 , PM2.5 and PM10
* Reduced power standby mode
* Capability to measure up to 2,000 µ g/m 3
* Onboard temperature and humidity sensor
* SPI interface not included, order code 000-0SPI-00
| OPC-N3 PM2.5 Particle Sensor MEASUREMENT | ||
| Particle range |
Spherical equivalent size (based on RI of 1.5, S of 1.65) |
0.38 to 40 |
| Size categorisation |
Number of software bins |
24 |
| Sampling interval |
Histogram period (seconds) |
1 to 30 |
| Total flow rate (typical) |
L/min |
1.2 |
| Sample flow rate (typical) |
mL/min |
220 |
| Max particle count rate |
Particles/second |
10,000 |
| Max coincidence probability |
% concentration at 10 6 particles/L |
0.84 |
| % concentration at 500 particles/L |
0.24 |
|
| OPC-N3 PM2.5 Particle Sensor POWER | ||
| Measurement mode |
mA (typical) |
175 |
| Standyby mode |
mA (typical) |
|
| Voltage range |
VDC |
4.8 to 5.2 |
| Switch-on transient |
mW for 1ms |
|
| OPC-N3 PM2.5 Particle Sensor DATA | ||
| Digital interface/connections |
SPI (real-time data and communications) |
|
| Micro USB (firmware updates and standalone mode) | ||
| Data storage |
micro-SD (.CSV format) (GB) |
16 |
| OPC-N3 PM2.5 Particle Sensor KEY SPECIFICATIONS | ||
| Digital interface |
SPI (Mode 1), USB |
|
| Laser classification |
as enclosed housing |
Class 1 |
| Temperature range |
°C |
-10 to 50 |
| Humidity range |
% rh (continuous) |
0 to 95 (non-condensing) |
| Weight |
g |
|
