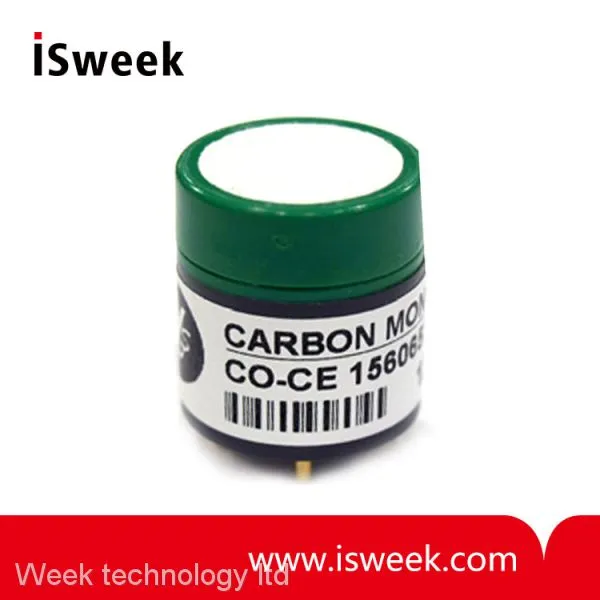

CO-CE High Concentration Carbon Monoxide (CO) Sensor
US$ 30 - 80
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Alphasense
Place of Origin:
United Kingdom
Model Number:
CO-CE
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
CO-CF Carbon Monoxide (CO) SensorUS$ 30 - 60MOQ: 1 Piece -
PrimePell Infrared Gas Sensor for Oil Industry Methane SensorNegotiableMOQ: 1 Piece
-
Cirius1 Infrared Methane Sensor Infrared CH4 Sensor for HydrocarbonsNegotiableMOQ: 1 Piece
-
CL2-A1 Chlorine Sensor (CL2 Sensor) for Portable Gas DetectorUS$ 45 - 65MOQ: 1 Piece
-
NO2-A43F Nitrogen Dioxide (NO2) Sensor 4-ElectrodeNegotiableMOQ: 1 Piece
Brand Name
Alphasense
Place of Origin
United Kingdom
Model Number
CO-CE
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensor
CO-CE Carbon Monoxide Sensor Description
Alphasense Carbon Monoxide gas sensors operate using proven fuel cell technology.
CO-CE Carbon Monoxide Sensor size:
20mm diameter with extra height for additional filter material when measuring combustion gases
The Alphasense family of CO sensors have proven themselves in the field with long term stability and reliable operation, well beyond the two-year warranty, using our patented electrode technology.
| CO-CE Carbon Monoxide Sensor PERFORMANCE | ||
| Sensitivity |
nA/ppm in 2,000ppm CO |
10 to 25 |
| Response time |
t90 (s) from zero to 2,000ppm CO |
|
| Zero current |
ppm equivalent in zero air |
|
| Resolution |
RMS noise (ppm equivalent) |
|
| Range |
ppm CO limit of performance warranty |
10,000 |
| Linearity |
ppm error at full scale, linear at zero and 2,000ppm CO |
|
| Overgas limit |
maximum ppm for stable response to gas pulse |
100,000 |
| CO-CE Carbon Monoxide Sensor LIFETIME | ||
| Zero drift |
ppm equivalent change/year in lab air |
|
| Sensitivity drift |
% change/year in lab air, monthly test |
|
| Operating life |
months until 80% original signal (24 month warranted) |
> 24 |
| CO-CE Carbon Monoxide Sensor ENVIRONMENTAL | ||
| Sensitivity @ -20℃ |
% (output @ -20℃/output @ 20℃) @ 400ppm CO |
70 to 90 |
| Sensitivity @ 50℃ |
% (output @ 50℃/output @ 20℃) @ 400ppm CO |
102 to 112 |
| Zero @ -20℃ |
ppm equivalent change from 20℃ |
|
| Zero @ 50℃ |
ppm equivalent change from 20℃ |
|
| CO-CE Carbon Monoxide Sensor CROSS SENSITIVITY | ||
| Filter capacity |
ppm-hours H2S |
4,000,000 |
| Filter capacity |
ppm-hours NO2 |
10,000,000 |
| Filter capacity |
ppm-hours NO |
2,000,000 |
| Filter capacity |
ppm-hours SO2 |
5,000,000 |
| H2S sensitivity |
% measured gas @ 20ppm H2S |
|
| NO2 sensitivity |
% measured gas @ 10ppm NO2 |
|
| NO sensitivity |
% measured gas @ 50ppm NO |
|
| SO2 sensitivity |
% measured gas @ 20ppm SO2 |
|
| Cl2 sensitivity |
% measured gas @ 10ppm Cl2 |
|
| H2 sensitivity |
% measured gas @ 400ppm H2 at 20℃ |
|
| C2H4 sensitivity |
% measured gas @ 400ppm C2H4 |
|
| NH3 sensitivity |
% measured gas @ 20ppm NH3 |
|
| CO-CE Carbon Monoxide Sensor KEY SPECIFICATIONS | ||
| Temperature range |
℃ |
-30 to 50 |
| Pressure range |
kPa |
80 to 120 |
| Humidity range |
% rh continuous |
15 to 90 |
| Storage period |
months @ 3 to 20℃ (stored in sealed pot) |
6 |
| Load resistor |
Ω (recommended) |
10 to 47 |
| Weight |
g |
|
