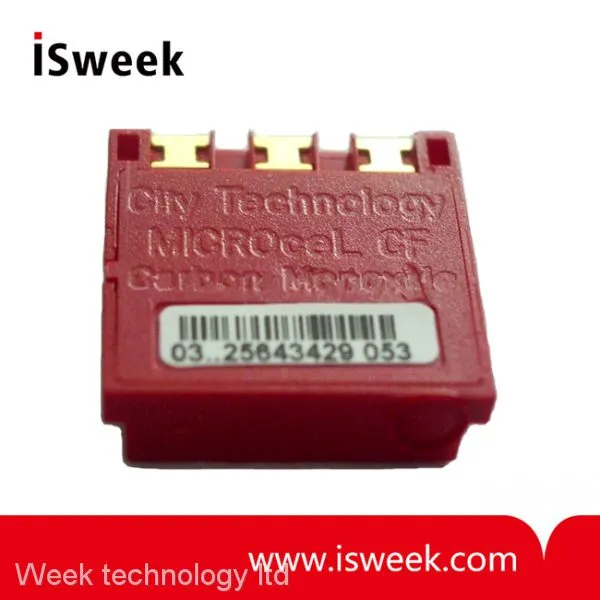

MICROceL CF Carbon Monoxide (CO) Gas Sensor
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
City Technology Ltd
Place of Origin:
United Kingdom
Model Number:
MICROceL CF
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
PID-A1 Photoionization Gas SensorUS$ 500 - 560MOQ: 1 Piece -
IRceL CH4 NDIR Methane (CH4) Gas SensorNegotiableMOQ: 1 Piece
-
OPC-N3 PM2.5 Particle SensorNegotiableMOQ: 1 Piece
-
EDT-01 Electronic Diffusion TubeNegotiableMOQ: 1 Piece
-
CO-CE High Concentration Carbon Monoxide (CO) SensorUS$ 30 - 80MOQ: 1 Piece
Brand Name
City Technology Ltd
Place of Origin
United Kingdom
Model Number
MICROceL CF
Usage
Gas Sensor
Theory
Other, Electrochemical Gas Sensors
MICROceL CF Carbon Monoxide Sensor Description
MICRO 3-electrode carbon monoxide sensor with inboard filter.
MICROceL CF Carbon Monoxide Sensor Key Features & Benefits
• A robust carbon monoxide sensor suitable for portable life safety applications
• Extremely small size
MICROceL CF Carbon Monoxide Sensor Technical Specifications
| MEASUREMENT | |
| Operating Principle |
3-electrode electrochemical |
| Measurement Range |
0-500 ppm CO |
| Maximum Overload |
1500 ppm CO |
| Filter |
To remove TLV levels of interfering gases |
| Sensitivity* |
0.045 ± 0.01 µA/ppm |
| T50 Response Time |
|
| Typical T90 Response Time |
15 to 20 seconds |
| Baseline Offset (clean air) |
-4 to +2 ppm CO equivalent |
| Maximum Zero Shift* (+20°C to +40°C) |
2 ppm CO equivalent |
| Linearity |
Linear up to 1500 ppm CO |
| ELECTRICAL | |
| Recommended Load Resistor |
10 Ω |
| Bias Voltage |
Not Required |
| MECHANICAL | |
| Weight |
1.2 g |
| Housing Material |
ABS |
| Orientation |
Any |
| ENVIRONMENTAL | |
| Operating Temperature Range |
-40°C to +50°C |
| Recommended Storage Temp |
0°C to 20°C |
| Operating Pressure Range |
Atmospheric ± 10% |
| Operating Humidity Range |
15 - 90% RH non-condensing |
| LIFETIME | |
| Expected Operating Life |
Two years in air |
| Long Term Output Drift |
|
| Storage Life |
6 months in CTL container |
* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
