Our official Website:

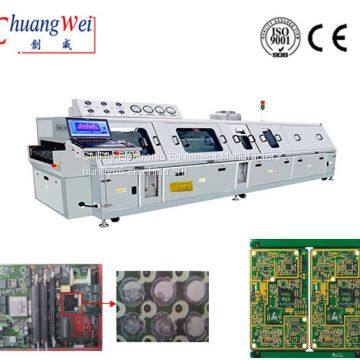

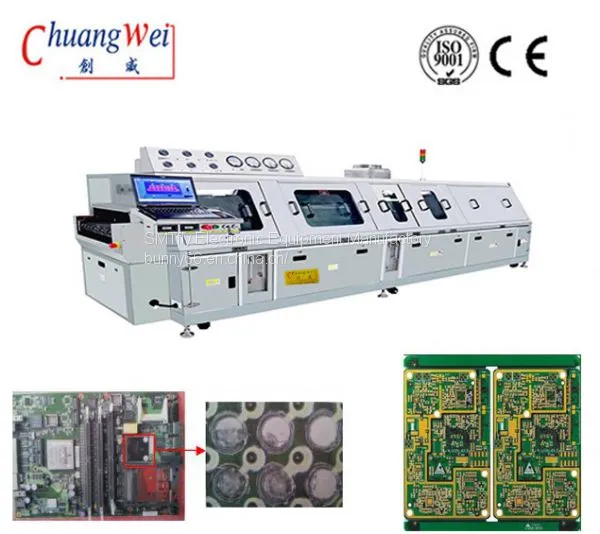

PCBA On-line Cleaning Machine,CW-6200 Features:
1.Suitable for large quantities of cleaning, online chemical cleaning, rinsing, drying all
the processes
2. Excellent cleaning effect, effective removal of rosin, water-soluble flux, no-clean flux
and other organic and inorganic pollutants
3. The overall 304 stainless steel body is durable, acid and alkaline cleaning fluid
4. Wind knife cut water + long infrared hot air circulation drying section
5. Optional spray cleaning knife, so that cleaning better
6. Compatible with running water or chemical cleaning
7. Lower equipment investment costs
8. Short lead times
9. Localized service teams as well as adequate spare parts supply
CW-6100 PCB Cleaning Machine PCB Machine SMT Machine Cleaning stage:
1. Immersed SUS High Efficiency Heater: Turns on for 15 minutes to heat up quickly
2. PID temperature control system: temperature control accuracy ± 1 ℃, with temperature compensation control system
3. Up and down pressure regulation control, before and after the pressure gauge display
4. Spray module easy to remove the spray bar (SUS nozzle)
5. No large area of the water jet device
6. High performance 10 HP centrifugal pump stainless steel pump
7. Quick Release Stainless Steel High Pressure Piping System
8. Removable filter
9. Redundant low level protection, high alarm function
10. Dislocation Arrangement nozzles eliminate blind spots
11. Automated chemical system (option)
12. Online concentration monitoring system (option)

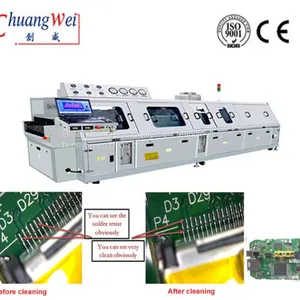

Flux is conductive, cleaning can prevent the formation of conductive channels :
CW-6200 PCB Cleaning machine Device configuration:
1.Mesh belt conveyor system ：
width： 600mm
Platen system ： Internet with pressure plate system （ option ）
Optional mesh belt shape ： Shaped, convex, concave （ option ）
2.High pressure wind cutting + infrared hot air circulation drying unit
3.14″ PC control Full Chinese/ English interface
4. System can count capacity, outboard sensor system
5. Rinse water quality resistivity monitoring system
6.Chemical filtration system
If you need the machine,please contact us:
Skype/Email: s5@smtfly.com
WhatsApp/Wechat: +86 136 8490 4990
