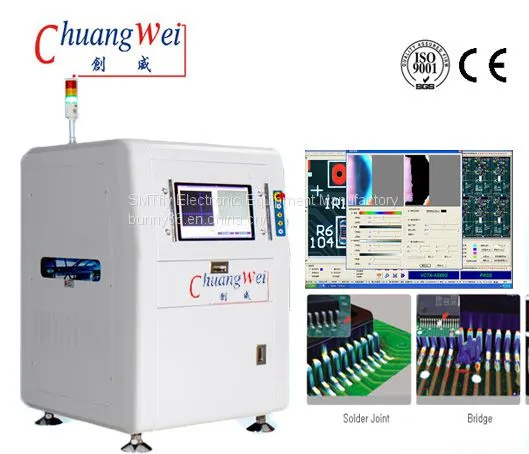

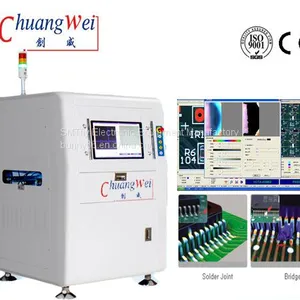

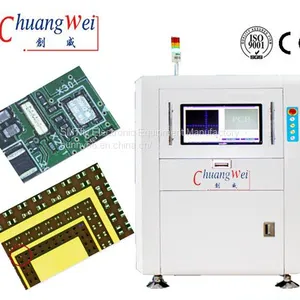

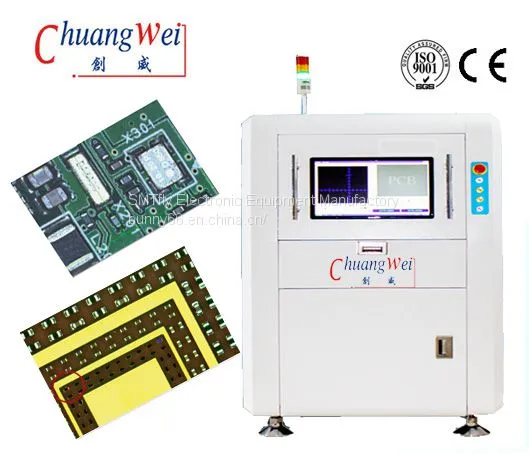

Solder Paste Inspection - Used for SMT/PCB Equipment Marketplace,CW-A586 Features:
1. Multiple-Function
Different AOI model can be placed at several quality controlling points in SMT line such as to check 2D paste printing quality, Check component before reflow soldering, check PCBA quality after reflow soldering, and DIP after wave soldering.
2. Simple Interface
Simple software interface accord with daily and effective operation,
The work guide, makes the equipment to maintain consistently,
The safe is comprehensive and nimble,
The Lowest training request.
3. Option and customized
Portable tracking doors design, easier for maintenance;
With overspecialization it can meet different demands;
The machine can work with OK/NG loader, make the seamless connection of on-line testing,PCBreceiving and repairing;
With the application of off-line programming and offline debugging ,m-acing the equipment with best value;
Various algorithms applications and combination, make the application of software is more flexible;
The new algorithm OCR and short test, meet the request of quality ins-software is more flexible;
With high intellectualized control system, it can control the quality and give feedback in the first time;
Fully meet the requirements of lead-free process.
Solder Paste Inspection - Used for SMT/PCB Equipment Marketplace,CW-A586 Sample:
Solder Paste Inspection - Used for SMT/PCB Equipment Marketplace,CW-A586 Specification:
Category |
Item |
Specification |
|||
Recognitionsystem |
Inspection |
Using multiple algorithms synthetically such as WIDM Color image contrast technology color extracting technology,similarity,two-value handing technology,OCR/OCV etc. |
|||
Camera |
Distal and high speed color CCD camera:20um(15um/12um/10um for option) |
||||
Lamp-house |
Ring tower structure, high intensity RGB flash lamp-house |
||||
FOV |
Standard FOV:20*20mm,the maximum FOV:40*40mm |
||||
|
Imageprocess Speed |
0201 Cgip |
||||
Per-image time |
|||||
Inspection Items |
Component Defects |
Missing , Misaligned ,overflow ,insufficient ,pasting open, stain |
|||
Solder Defects |
Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity,wrong,damaged |
||||
Inspection items |
01005&0.3mm pitch()15um |
||||
Machine system |
PCB conveyor |
||||
PCB size |
|||||
PCB thickness |
|||||
PCB warp tolerance |
|||||
Component clearance |
|||||
Machine system |
X,Y platform |
Driver |
AC server, camera moves in the directions of X/Y |
||
Orientation |
10um |
||||
Moving Speed |
50mm/s |
||||
Soft system |
Operation system |
Microsoft Windows XP professional |
|||
|
Controlling Recognizing |
Characteristics |
Set template images real time, count data and error gate value automatically , WIDM ,study ok template, input CAD date, Have the powerful function of feedback the inspect data and template library |
|||
Operation |
Graphic programming, Chinese English |
||||
Quality |
10000 COMPONET/PCBA |
||||
Network |
NG adaptable, check and correct PCBA defects at repair station |
||||
Computer |
CPU:intel dual-core,Memory:4G,harddisk:500G |
||||
Others |
Air supply |
4-6bar |
|||
Machine Dimensions |
950*1000*1580mm |
||||
Weight |
580KG |
||||
Power Supply |
AC220V,10%,single phase 5A 50/60HZ,power consumption 1000W |
||||
