PCBA Misprinting Board Cleaning Machine,CW-800

Our official Website:

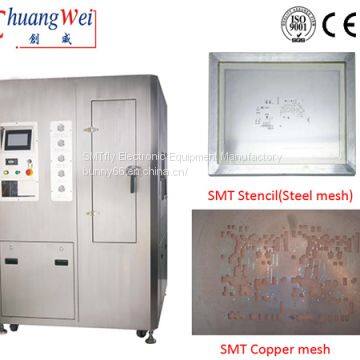

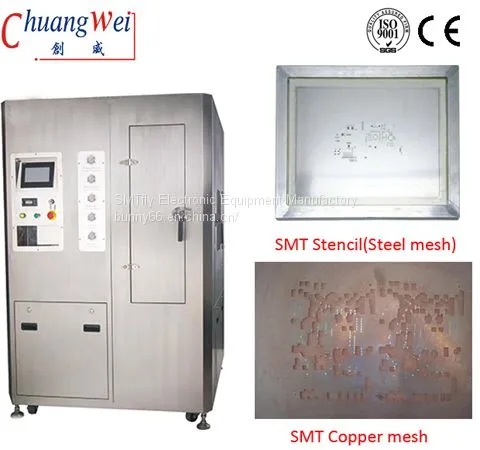

Large Size Stencil Cleaning Machine,Wave Solder Pallet Cleaning Machine,CW-800 :

1.Quick & super clean effect: SMT steel mesh, copper mesh, resin mesh, screen, PCB misprinting board and PCBA board, can quickly and effectively clean the surface after printing to the residual solder paste, red plastic and other pollutants;

2.Standard water-based automatic cleaning mode: In a cleaning room to complete the cleaning, rinsing, drying all the cleaning process, small size, compact structure;

3.Full Process Visualization: The cleaning room is equipped with a visual window, the cleaning process at a glance;

4. Wide range of applications: SMT stencil, screen, India plastic governance, SMT scraper, large size PCBA, Misprint plate;

5.DI water real-time resistivity cleanliness monitoring system:Used to monitor the cleaning effect, the resistivity can be set, resistivity control range 0 ~ 18MΩ;

6.Nozzle pressure adjustable and symmetrical design: To solve the SMT steel mesh in the cleaning process by high pressure spray conditions under the tension problem;

7.Standard cleaning tank heating system: Water-based process on the needs of heating emulsification, greatly improving the cleaning efficiency, shorten the cleaning time;

8.Low operating costs:

Built-in filter device can be used to achieve the recycling of solvents to extend the pollutant load saturation time, at the end of the cleaning using compressed air recovery pipeline and the pump within the residual chemical solution, can effectively save 50% cleaning agent;

9.Can be cleaned oversize size PCBA （800mmx800mm)

10.High pressure fan + four wind knife wind cut dry: Using 5.5HP high pressure fan, more efficient (3 to 5 minutes), more thoroughly!

11.Full Chinese large touch screen interface:Color touch screen, PCL control, according to the program run; can set the solution temperature, cleaning time, rinse times / time, rinse temperature, drying time, drying temperature, conductivity monitoring and other parameters.

If you need the machine,please contact us:

Skype/Email: s5@smtfly.com

WhatsApp/Wechat:  +86 136 8490 4990

CW-800 Technical specifications for Water - based Steel Net Cleaning Machines

1. Applicable screen size: maximum 750(L) ×750(W) × 40(H)mm （ Special size should be customized ）

2. Liquid tank capacity ：50L* 2PCS

3. Cleaning method ：Steel net reciprocating movement, cleaning liquid high pressure liquid jet

4. Rinse method: Open loop DI water or closed-loop chemical spray

5. Drying method: Four wind knife wind cut dry

6. Cleaning time: 2-5mins

7. Cleaning isolation time: 1min

8. Rinse time: 2-5 mins

9. Rinse Drying time: 3-5 mins

10. Resistivity tester range: 0--18MΩ

11. Liquid heating temperature: Room temperature ～60℃

12. Liquid tank heater power(KW)： 9KW

13. Rinse tank heater power(KW):       9KW

14. noise: Less than 65 decibels

15. Drying temperature: Room temperature --90℃

16. Drying heater power （KW）： 9KW

17. The total power is about: 33KW Normal working power 3-6KW

18. Chemical liquid level filter: 0.45μm

19. DI water filter: 0.45μm

20.  DI water supply: 30~60L/min

21.  DI water pressure: ≤0.4mpa

22.  water intake: G3/4” Inner teeth

23.  Drainage: G3/4” Inner teeth

24.  Row of chemical liquid mouth: Φ 12 hose

25. Spray pump: 4HP Stainless steel multi - stage centrifugal pump

26. Exhaust size: Φ123mm

27. Power supply / gas source: AC380V  50HZ  90A  /  0.45Mpa-----0.7Mpa

28. net weight: 500Kg

29. dimension: about 1500mm(L) ×1260mm(W) × 1900mm(H)
