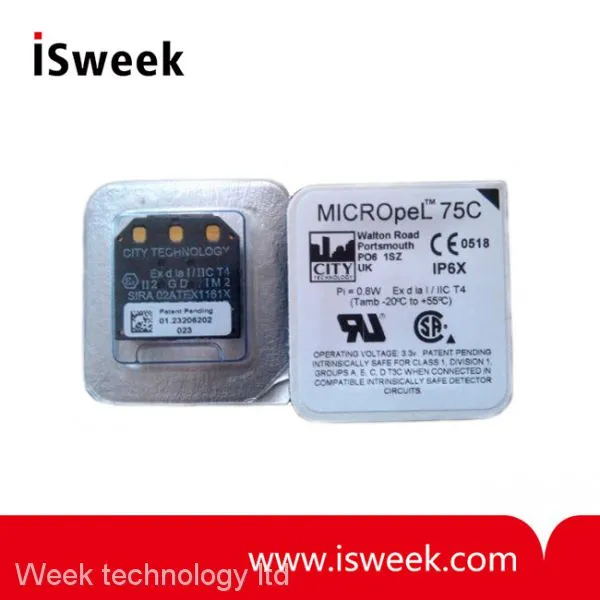

MICROpeL 75C
Combustible Gas Sensor
MICROpeL 75C Combustible Gas Sensor Key Features & Benefits:
• ATEX, UL and CSA Approvals
• Withstands EN/IEC 60079-0 impact test
• Enhanced H2S and silicone poison resistance
• Reduced Orientation Effects
MICROpeL 75C Combustible Gas Sensor Performance Characteristics
| MEASUREMENT | |
| Operating Principle | Catalytic Oxidation |
| Gases Detected | Combustible gases |
| Suitable for | Methane, ethane, propane, butane, pentane, hexane, carbon monoxide & hydrogen |
| Unsuitable for | Higher hydrocarbons, alcohols, ketones, esters, hydrogen sulfide and other sulfur containing compounds |
| Range | 0-100% LEL |
| Sensitivity* | 31 ± 5 mV/%methane |
| T90 Response Time* | |
| Poison Resistance | Resistance to H2S poisoning Superior silicone resistance |
| H2S Filter Lifetime | Typically 1000 ppm hr |
| Linearity | Linear up to 3% methane |
| ELECTRICAL | |
| Operating Voltage | 3.30 ± 0.02 VDC |
| Detector Operating Current | 78 ± 6 mA |
| Maximum Power Consumption | 295 mW |
| Resolution | 1% LEL |
| MECHANICAL | |
| Weight | 2 g (nominal) |
| Orientation Sensitivity | None |
| ENVIRONMENTAL | |
| Operating Temperature Range | -20 ºC to +55 ºC |
| Operating Pressure Range | 1 atm ± 20% |
| Operating Humidity Range | 0-90% RH non-condensing |
| LIFETIME | |
| Long Term Span Drift* | |
| Long Term Zero Drift* | |
| Recommended Storage Temp | 0 ºC to 20ºC |
| Shelf life | 6 months in sealed container |
| Warranty | 12 months from date of despatch |
* Specifications are valid at 20°C, 50%RH and 1013 mbar at a flow rate of 300 ml/min.
Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
