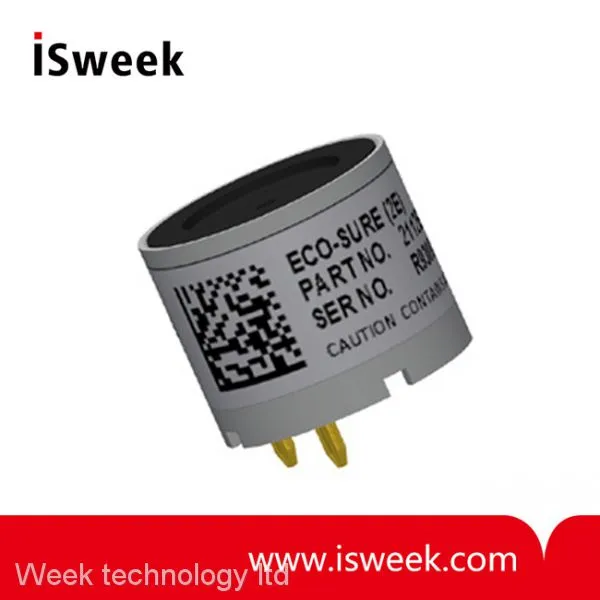

ECO-SURE (2E) Carbon Monoxide (CO) Gas Sensor
- 1000 Piece / Pieces per Month
- HK
- T/T PayPal
- 7 days
- IRM-AT Infrared Methane (CH4) Sensor Thermopile Detector
- IRC-AT Infrared Carbon Dioxide (CO2) Sensor Thermoplie Detector
- MS8607-02BA01 Integrated Pressure, Humidity and Temperature (PHT) Sensor
- FS4001 MEMS Mass Flow Sensors
- MF5700 Series Protable Gas Flow Meters - MF5706/MF5712
- FS6122B Medical Respiratory Sensor
Product Details
Brand Name: | City Technology Ltd | Place of Origin: | United Kingdom | Model Number: | ECO-SURE (2E) |
Usage: | Gas Sensor | Theory: | Other, Electrochemical Gas Sensor | Output: | Other |
Product Description
ECO-SURE (2E) Carbon Monoxide (CO) Gas Sensor Description
ECO-SURE (2E) Carbon Monoxide Sensor, 2 Electrode, long life sensor designed for residential, fire detection and ventilation control applications. UL certified.
ECO-SURE (2E) Carbon Monoxide (CO) Gas Sensor Features:
Long Life
Stable Performance
UL Certified - UL2075
ECO-SURE (2E) Carbon Monoxide (CO) Gas Sensor Applications:
Residential
Fire Detection
Ventilation Control
ECO-SURE (2E) Carbon Monoxide (CO) Gas Sensor Technical Specifications
MEASUREMENT | |
Operating Principle | 2-electrode electrochemical |
Measurement Range | 0-500 ppm CO |
Maximum Overload | 1000 ppm CO |
Sensitivity | 45 ± 15 nA/ppm |
Sensitivity Banding | A : 30.0 - 35.9 nA/ppm B : 36.0 - 42.9 nA/ppm C : 43.0 - 50.9 nA/ppm D : 51.0 - 60.0 nA/ppm |
Response Time (T90) | <30 seconds |
Baseline Offset (clean air) | -2 to 4 ppm equivalent |
Zero Shift* (-10°C to +50°C) | <+10 ppm equivalent |
Repeatability | <±5% |
Linearity | Within ±5% |
ELECTRICAL | |
Recommended Load Resistor | 5 Ω |
Bias Voltage | Not required |
MECHANICAL | |
Housing Material | Noryl N110 |
Weight | 5 g (nominal) |
Orientation | Any |
ENVIRONMENTAL | |
Operating Temperature Range*: Continuous Intermittent | -10°C to +50°C -20°C to +50°C |
Operating Pressure Range | 1 atm ± 10% |
Operating Humidity Range*: Continuous Intermittent | 15% to 90% RH non-condensing 0% to 99% RH non-condensing |
INTRINSIC SAFETY DATA* | |
Maximum at 1000ppm | 0.1 mA |
Maximum o/c Voltage | 1.3 V |
Maximum s/c Current | <1.0 A |
LIFETIME | |
Long Term Output Drift | <5% per annum |
Recommended Storage Temp | +10°C to +30°C |
Expected Operating Life* | > 6 years in normal use from date of manufacture |
Storage Life | 6 months in original packaging |
With the exception of items marked * the stated parameters have been verified under the UL component recognition programme.
All measurements were taken at 20°C and 50% rH at 1 atm pressure unless otherwise indicated. Sensor performance may vary with environmental conditions
Performance characteristics outline the performance of sensors supplied within the first 3 months
