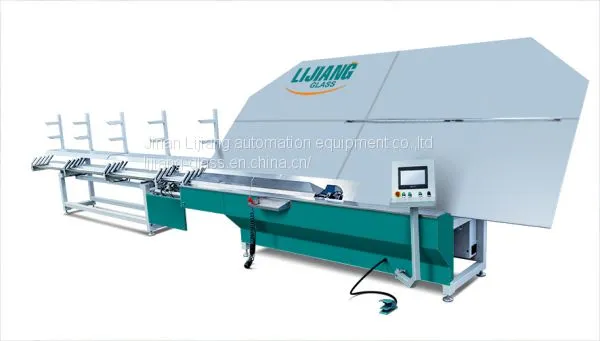

Automatic spacer bending machine LJZW 2020A
Main feature

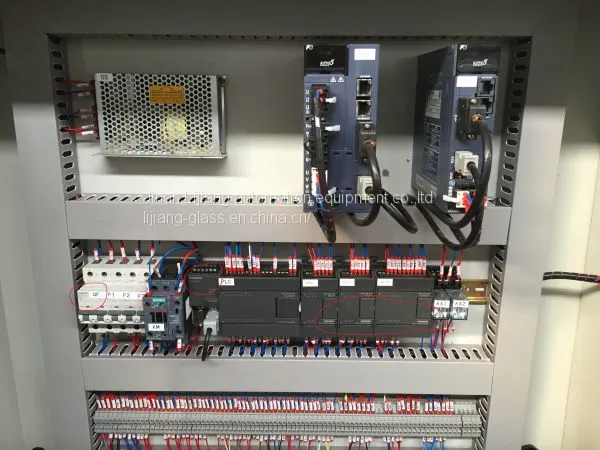

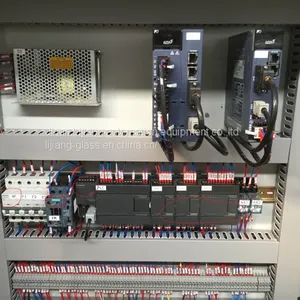

1.Germany Siemens PLC control system
2.Japan Fuji CNC servo control system
3.Four spacer size storage units
4.CNC servo control feeding mechanism
5.Auto furnishing and cutting spacer fuction
6.Auxiliary function of adjustment for bending Large aluminum frame
7.Can be optional to different specifications and sizes of aluminum space
8.Supporting bending for different shapes’ spacers Continuously
9.Separated guard board outside of bender
10.Automatically avoid the connection while bending and cutting
11.Pause/set device, convenient for machine malfunction maintenance, protect the servo motor
12.USB input function, read the excel format file directly etc(optional)
13.Spacer printing function(Optional)

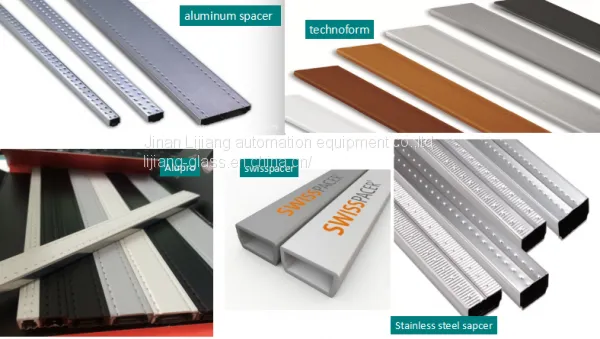

14.Can bend aluminum spacer ,Technoform, Alupro, Thermix, Swisspacer and Stainless steel(Stainless steel optional)
15.Automatic drill gass filling hole(Optional)
Technical data
Max.bending size |
2000mm*2000mm |
Min.bending size |
250mm*200mm |
Aluminum spacer width |
5.5-24mm |
Dimensional error |
≤±0.5mm |
Angle error |
≤±1º |
Processing speed |
≤26s |
Air supply |
≥0.65MPa |
Total power |
AC220/380V 50Hz 2.5KW |
Dimension |
10500mm*2200mm*2600mm |
