Specifications
Double Glass Alu-spacer strip bender machine1.for insulating glass
2.automatic alu-spacer bar bend
3.Fuji servo feed
Semi-automatic Alu-spacer Bending Machine/Double Glass Machine(LW02)
Semi-automatic Alu-spacer bending machine for double glass/insulating glass/vacuum glass
1.Main Function Introduction
1).The startup was controlled by single button, and it is adopted touch screen.
2).The head of the cutter can be adjusted automatically.It can operates without changing the cutter aluminum spacer when the width of the spacer is bigger than 6mm.
3).Fuji servo feeding system with digital control, bending angle. digital control system, siemens control system.
4).To reconnect the ends automatically, and to prevent the ends being clashed intelligently.
5).Judging the processing data intelligently.
6).The remanent can be processed again and no tailings exist.
7).Cutting the feed supply automatically when the processing is done.
8).Counting the output.
9).Remaining dormant state to save energy consumption when there is no processing.
10).Adopting the emergency stop.
11).Adjusting the bending speed automatically.
12).Performing the processing at a high speed, efficiency and continuity.
13).Adopting an automatic storage tank which can feed the material automatically and reconnect the aluminum spacer automatically.
14).Can bend both the arc and shaped aluminum spacers.
15).Manual control to debugging the trial run.
16).The head of the cutters is adjustable and processing data can be figured by customers themselves.
17).Indicating the relevant information when there is no supply, when it is in dormant state, when there is any malfunction, when it is in working state, and even can indicate debugging information for any wrong with the machine.
18).Adopting clock to display the current date and time.
Kindly note:
Before you buy the machine, please make sure then tell me your local power supply,then we can make the right according to your true voltage.
Kindly and friendly inform:
we have skilled engineers with well English ability in this field about 20 years, they can directly to give you any help on machines by calling or by video link or by email in short time, and before our machine reach your workshop, if you need we help you to design a drawing that tell you all machines should how to place in your workshop ,we can help you to give you a drawing to give you suggestion in short minutes; and if you need we suggest you how many Squaremeters workshop is better for you, you can tell us your plan production, then we can tell your how many machines you needs, then tell you how much Squaremeters workshop is better for you.
2.Main Technical Data
model |
LW02 |
Power supply |
AC220V,50HZ |
Motor |
2.5KW |
Air supply |
0.6MPa |
Aluminum bar size |
width:6mm-24mm |
Length:2000-4000mm | |
Aluminum spacer size |
min 250*150mm |
max 2500*2500mm | |
Processing speed |
<30s/pcs(1000mm*1000mm) |
Date number |
set 4 groups of specification*8 kinds of size*9999 piece at the same time |
Figure Dimension |
10500×2100×2200mm |
Total Weight |
1800Kg |

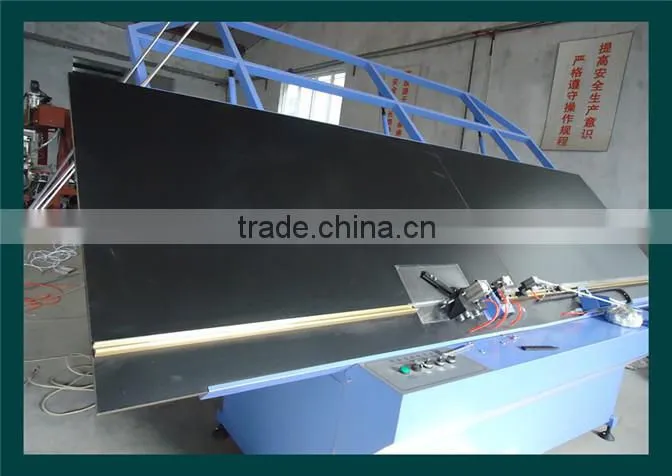

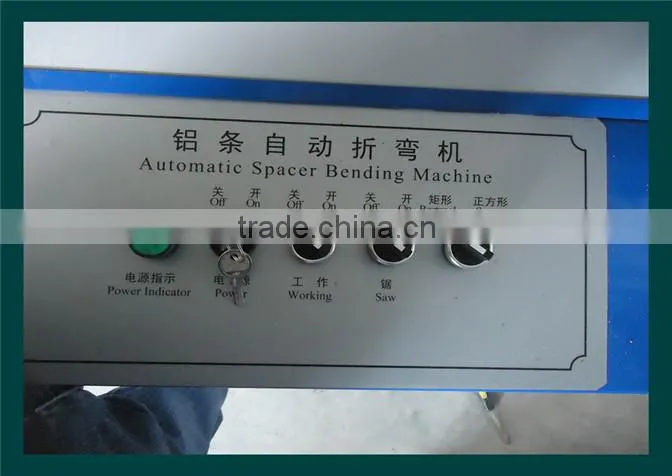

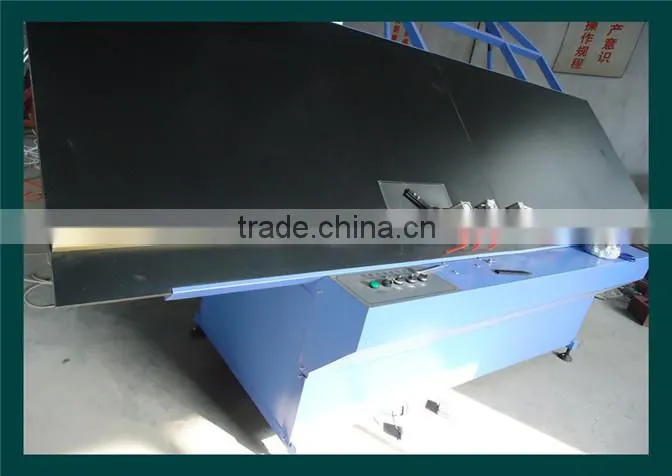

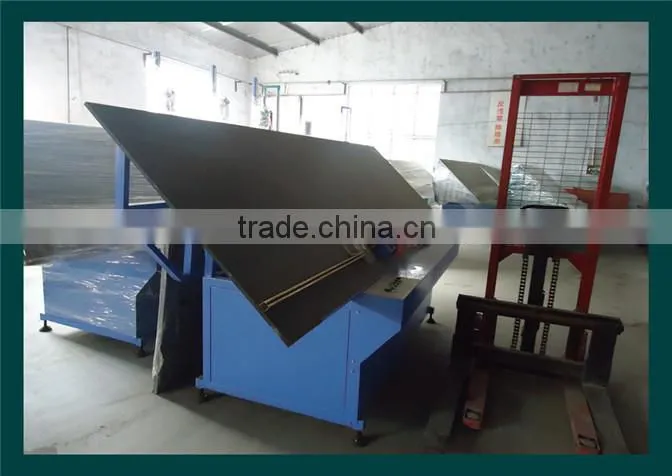

3.More pictures of the model LW02

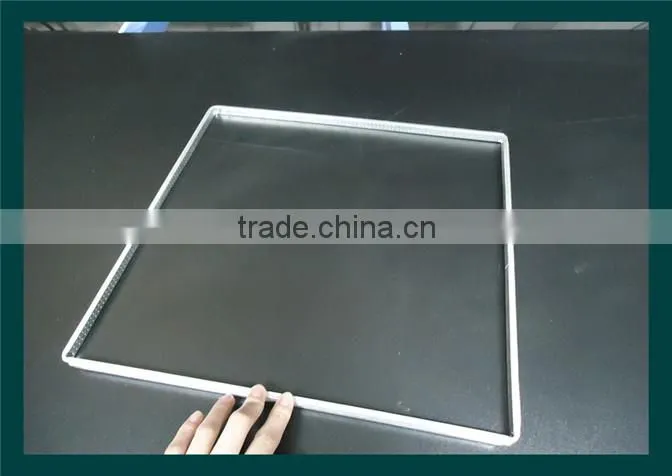

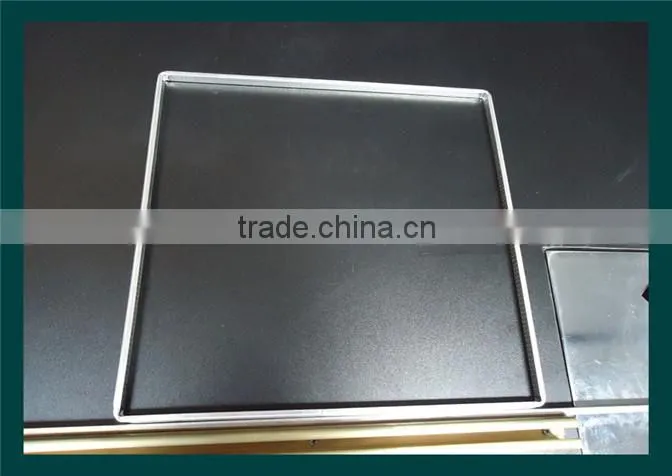

4.Bended Aluminum spacer sample

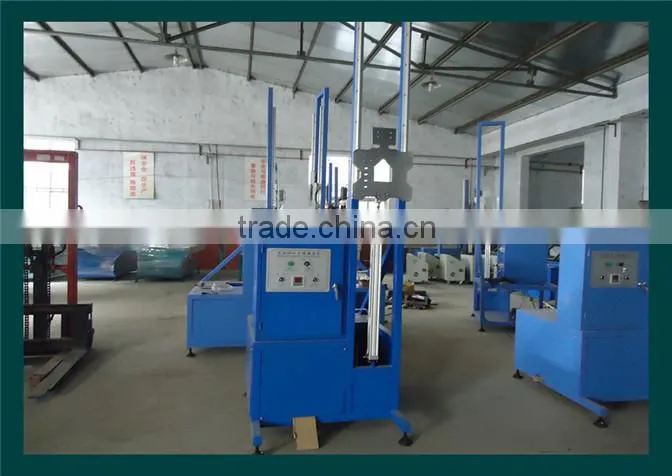

5.Full-automatic desiccant filling machine
This machine can togther work with the semi-automatic alu-spacer bending machine.
6.Insulating glass/double glass/hollow glass good advantages
1).sound insulation, noise reduction
2).keep warm
3).dust prevention
4).reduce thermal radiation

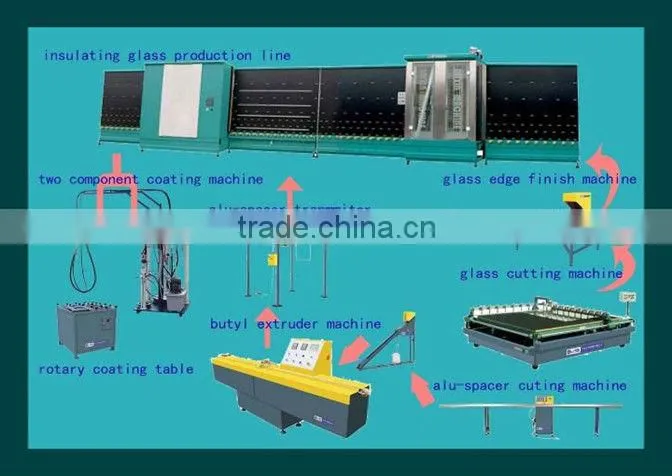

7. Related insualating glass processing flow chart
You need the following machines to complete the insulating glass production.
1.Insulating glass production line, model: LB1600P
2.Butyl extruder machine, model:JT01
3.Two component glue coating machine, model:ST01
4.Rotary coating table, model:SZT01
5.Alu-spacer cutting machine, model:LJ180
6.Argon filling machine, model:ZCJ02
7.Alu-spacer-frame transfer machine, model:LZDJ01
8.Desiccant filler machine, model:FGJ01
9.Glass edge finishing machine, model:SM95

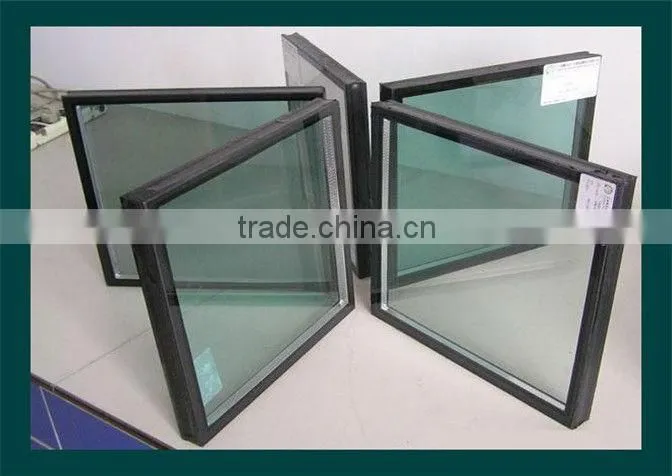

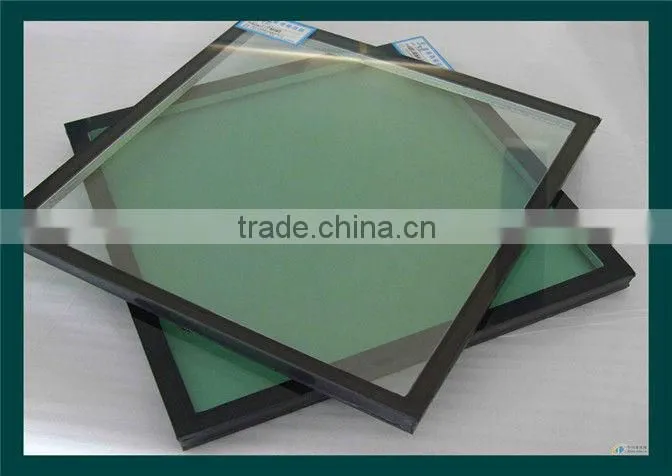

8.Insulating glass/double glass/hollow glass/vacuum glass products sample

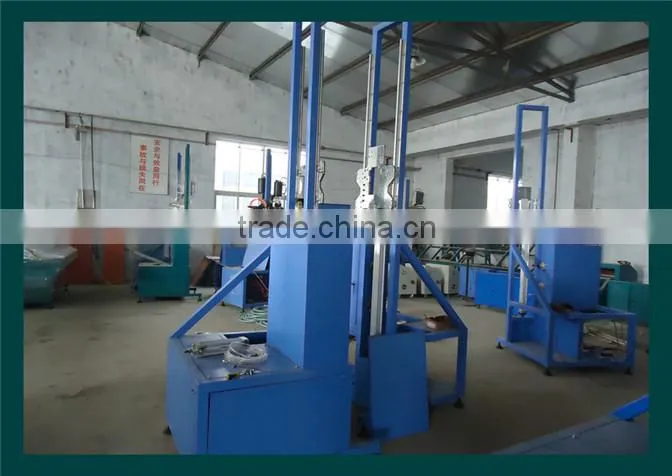

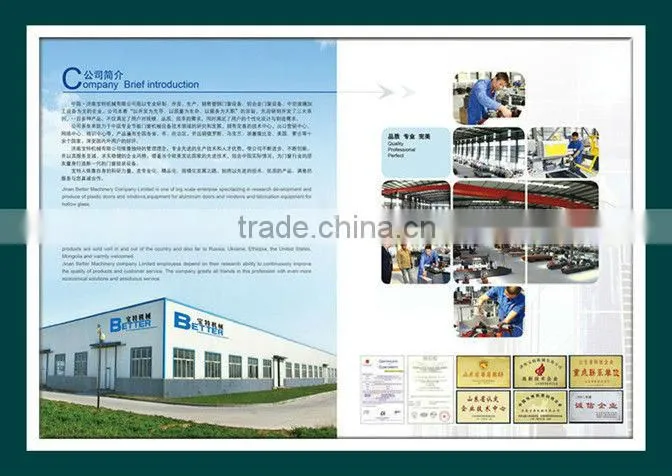

9.Our Factory
10.Contact Information
Contact Person: jack lee
Jinan Better Machinery Co.,Ltd
Address: No.6 Lashan North Road., Jinan, China
Tel: 0086-531-85608516
Mobile No: 0086- 14706304987 (24H on Line)
Fax: 0086-531-61311202
Skype:li.yang2806
11.Aftersale Sevice
1). We will provide all spare parts needed for maintenance of the equipments.
2). During the period of guarantee, within 2 years (24 months), the seller we will be responsible for the damage due to the defects in designing and manufacturing.
3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
please contact us for detailed information,your inquiry will be highly appreciated and replied in less than 24 hours
