Main feature

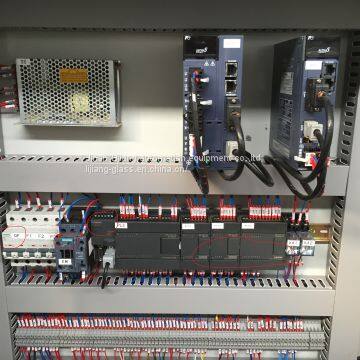

Japan Fuji CNC servo control system
Four spacer size storage units
CNC servo control feeding mechanism
Auto furnishing and cutting spacer fuction
Auxiliary function of adjustment for bending Large aluminum frame
Can be optional to different specifications and sizes of aluminum spacer
Supporting bending for different shapes’ spacers Continuously
Separated guard board outside of bender
Automatically avoid the connection while bending and cutting
Pause/set device, convenient for machine malfunction maintenance, protect the servo motor

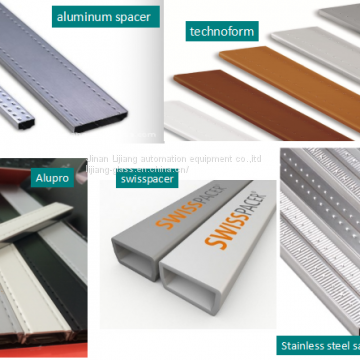

Can bend aluminum spacer, Technoform, Alupro
USB input function, read the excel format file directly etc(optional)
Spacer printing function(Optional)
Technical data
Max.bending size |
2000mm*2000mm |
Min.bending size |
250mm*200mm |
Aluminum spacer width |
5.5-24mm |
Dimensional error |
≤±0.5mm |
Angle error |
≤±1º |
Processing speed |
≤26s |
Air supply |
≥0.65MPa |
Total power |
AC220/380V 50Hz 2.5KW |
Dimension |
10500mm*2200mm*2600mm |
