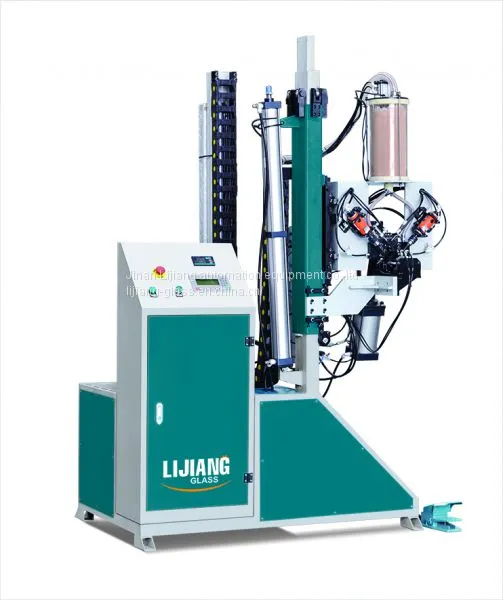

Automatic Desiccant Filling Machine for IG Production Machine
US$ 6500 - 8000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Lijiang
Place of Origin:
China
Model Number:
LJGZ 2020
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
20 days
Related Products
-
Insulating Glass Production Line /Double Glazing Glass Production LineUS$ 28000 - 85000MOQ: 1 Set -
Automatic Vertical Glass Washing MachineUS$ 15000 - 35000MOQ: 1 Set
-
Automatic Profile Spacer Bending Machine for Double Glazing Glass MachineryUS$ 25000 - 28000MOQ: 1 Set
-
Automatic Profile/ Spacer Bending Machine for Warm SpacerUS$ 31000 - 35000MOQ: 1 Set
-
ZFGJ-02B Automatic Desiccant Filling MachineUS$ 5100 - 5600MOQ: 1 Set
Brand Name
Lijiang
Place of Origin
China
Model Number
LJGZ 2020
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
one year
Weight
410KG
Dimension(L*W*H)
1300*1100*3650mm
Production Capacity
30
Condition
New
Voltage
220v
Power(W)
1kw
Main feature
Germany Siemens PLC control system
Touching screen interface, simple and visible
Desiccant auto loading and replenish
The filling height of can be adjusted according to the size of spacer frame
Filling time can be adjusted
Technical data
Filling aluminum frame’s maximum size |
2000mm*2000mm |
Filling aluminum frame’s minimal size |
300mm*250mm |
Aluminum specifications |
5.5-24mm |
Air source |
≥0.65MPa |
Power supply and power consumption |
AC220V 50Hz 1KW |
Molecular sieve diameter needed |
0.5-0.9mm |
Dimension |
1300mm*1100mm*3650mm |
