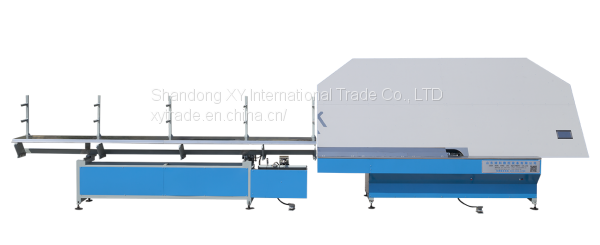

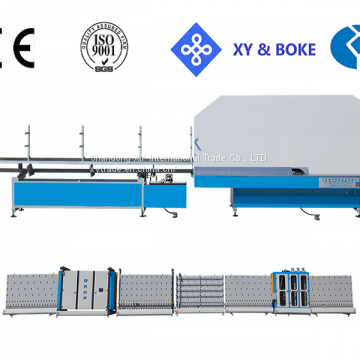

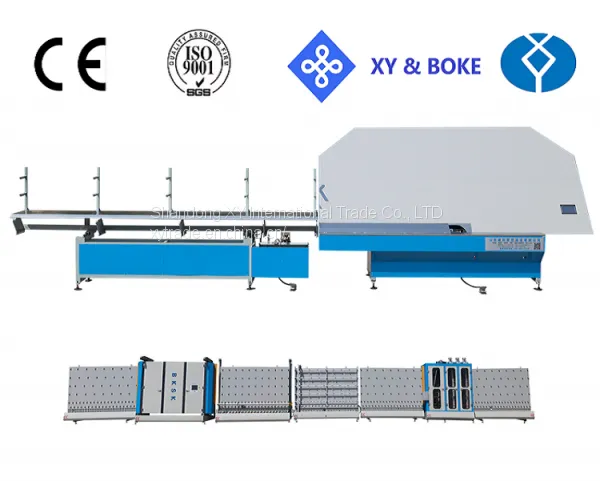

ZLZW02 Automatic aluminum spacer bending machine
Main Features
1. Adopt PLC control system and touch human-machine interface. Multi-screen clear and technical parameter simply input.
2. Feeding material and bending aluminum spacer by servo motor guarantees the precision of the bending form (angle and arc).
3. Aluminum frame have smooth arc, which is beautiful after butyl coating.
4. Bending aluminum frame and theoretical size error is less than 1mm, high speed, high efficiency.
5. Can feed four different size of aluminum spacer with four store tanks.
6. Automactic avoid spacer joint when bending and cutting spacer.

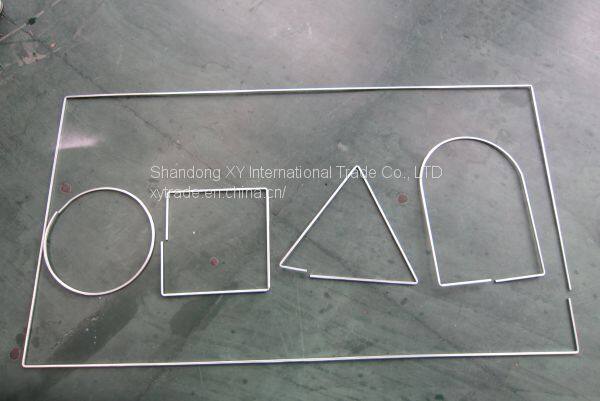

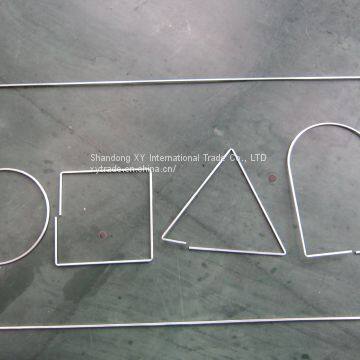

7. Can do shaped aluminum frame.
Power Supply |
220V/50Hz |
Total power |
2.5Kw |
Air pressure |
0.6 Mpa |
Aluminium width |
6-30mm |
Spacer specification |
4000-6000mm |
Max. aluminum frame size |
2000 x 2000mm |
Min. aluminum frame size |
280 x 200mm |
Outline dimension L*W*H |
10500x2200x2100mm |

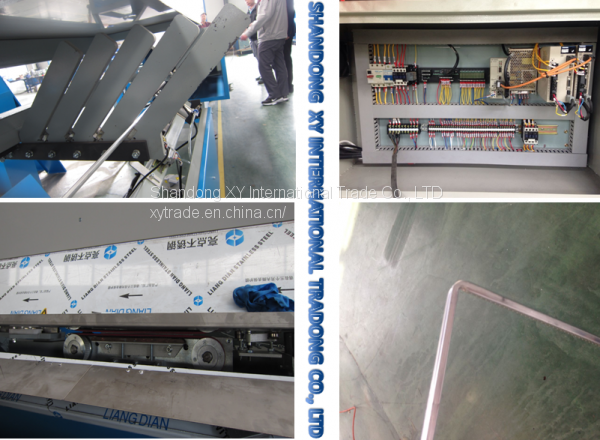

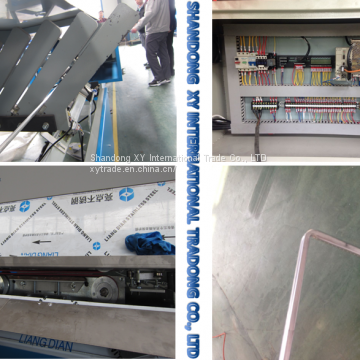

We pay attention on product details:
The production line adopts the world famous brand famous low-voltage apparatus, sensors and PLC, ect.
We are Shandong XY International Trade Co.,Ltd, a professional supplier of Insulating glass machinery with our own OEM factory.
Our factory is initially founded in July 2000, engaged in the production, research, development and selling high and middle grade glass process equipment.
Our I.G.U line includes double glazing glass machinery, automatic sealing robot, aluminum spacer bending, Butyl coating machine, glass cutting machine and so on.
We have passed the authentication if ISO9001:2000, SGS certificate and the products has obtained CE certificate.
Package Service:
Covering the machine with plastic sheet, then pack with wooden/steel pallet which is suitable for shipping by sea
If you have any question, please feel free to contact me.
