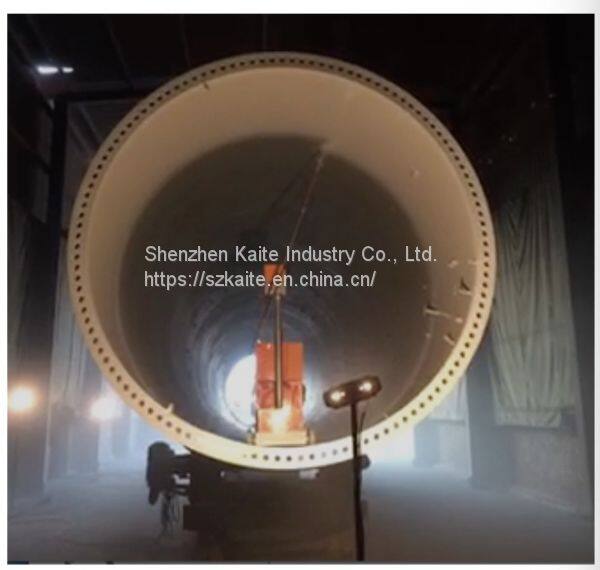

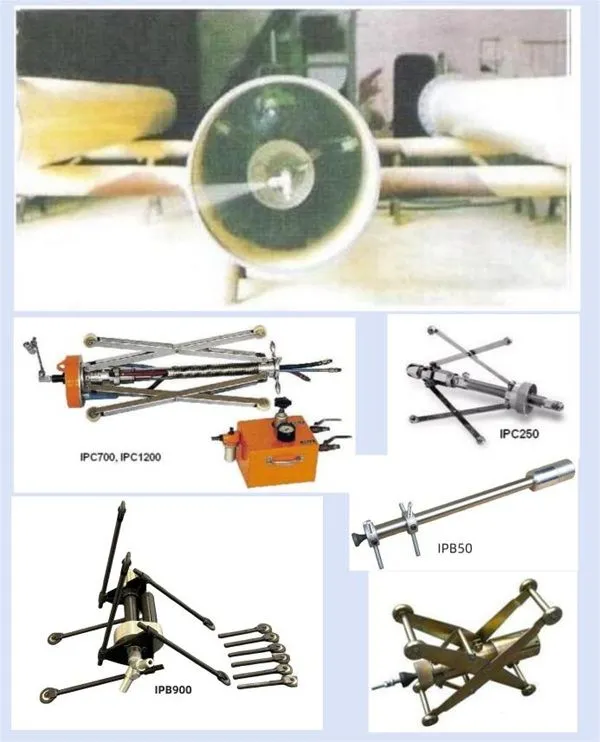

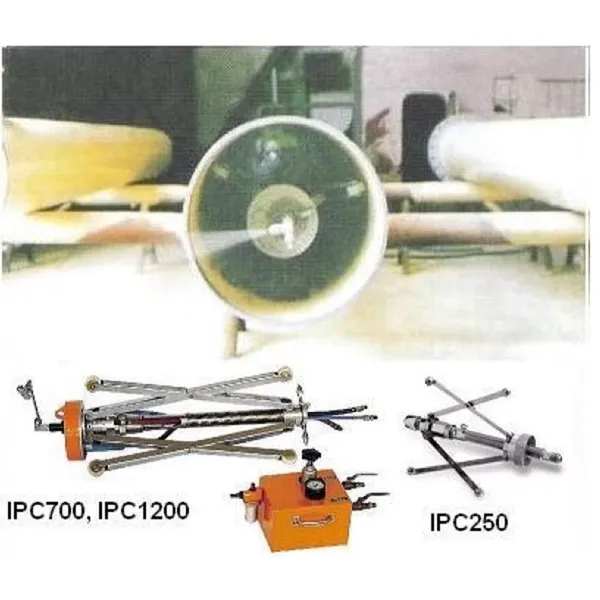

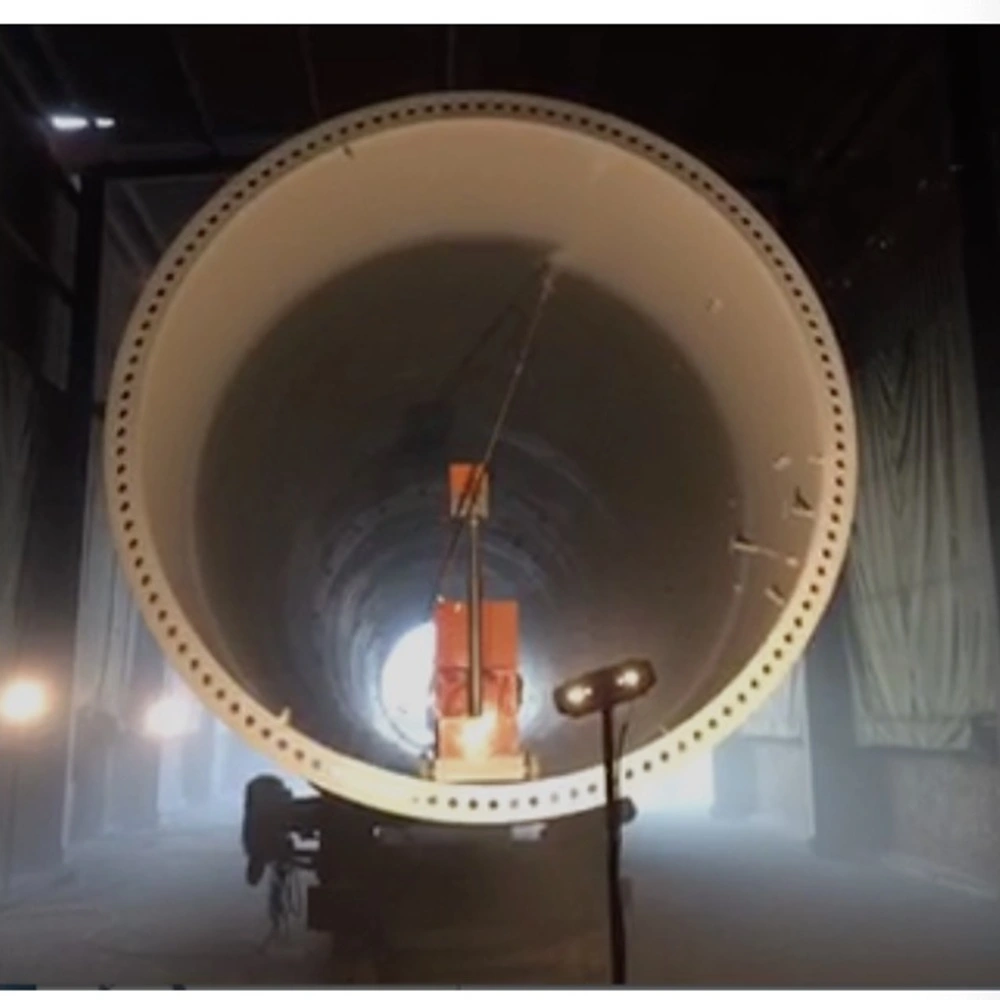

Interior pipe coater is specially developed for coating of the interior surface of pipe or tube without need to rotate pipe or tube. Interior pipe coater IPC1020, IPC2045 is specially developed for coating of the interior surface of large pipe or tube without need to rotate pipe or tube. The spray system is installed on an air-driven vehicle. The speed of vehicle and rotary speed are adjustable according to the demands.
| |||||
Model |
IPC250 |
IPC700 |
IPC1200 |
IPC1020 |
IPC2045 |
Processable pipe, ID mm |
50-300 |
250-700 |
300-1200 |
1000-2000 |
2000-4500 |
Air inlet pressure, Mpa |
0.4-0.6 |
0.4-0.6 |
|||
Rotary speed, rpm |
10-100 |
10-100 |
6-36 |
6-36 |
|
Move speed, mm/min |
320-1200 |
320-1200 |
|||
Dimension, mm |
50x280 |
250x250x620 |
300x300x950 |
560x470x1000 |
560x470x2200 |
Weight, kg |
8kg |
33 |
42 |
55 |
60 |
Remark |
with manual spray gun and 5 meter high pressure |

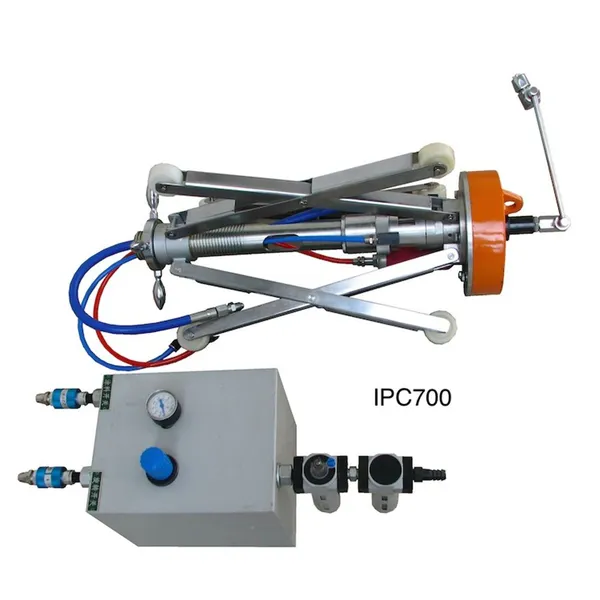

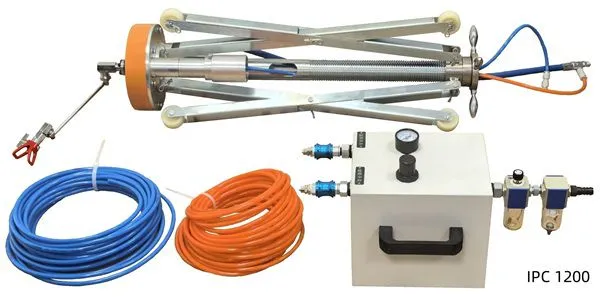

with control panel, filters, pressure gauge, pressure regulator, and 2 pcs of 15 meter long PU hoses, etc. |
with air-driven vehicle, control panel, filters, pressure gauge, pressure regulator, and spray gun, etc. |
||
