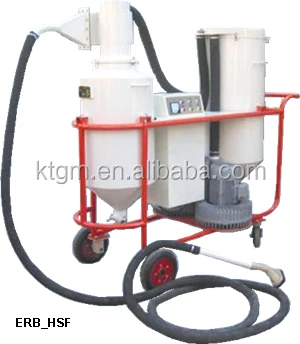

Vacuum abrasive recycle machine

Name: Vacuum abrasive recycle machine
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Payment Terms:T/T L/C D/P D/A
Delivery Detail:21 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

China

Model Number:

ERB-HSF

Product Description

1/. Electric Vacuum abrasive recycle machine ERB-HSF is specailly designed to be used together with portabl blast machines, for recovery and recycling the abrasive, reduce the abrasive consumption, eliminate sweeping and minimize abrasive disposal costs. It is generally used for cleaning or bulk suction in any industrial application wherer high capacity is required tgether with flexibillity, mobility, reliableility.

Product Feature

1/. Vacuum module: Two powerful vacuume pumps to produce maximum vacuum to convey abrasive over typical distance and revers pulse dust collector to ensure dust emission complance with local requirement during abrasive recovery and classification.
2/. Reclaimer and recycle unit: to recycle and classfy the abrasive. One 150L abrasive storage hopper fitted under reclaimer. Only clean properly sizes abrasive reach this bottom hopper.
3/. Suction hose with pick-up head assembly.
4/. cartridge filter dust collector, manually dust cleaning.

5/. Electrical control unit.

6/. Electrical powered only.

7/. Portable by Cart

Model	ERB-HSF8.0	ERB-HSF7.5
Power, KW	8.0	7.5
Abrasive pot diameter,mm	500
Storage capacity, L	200L
Suction hose ID,mm	50
Suction hose long,m	20
Abrasive cleaning capacity, kg/h,	500, approx. (steel media)
Abrasive size,mm	1.5 max
Weight,kg	250	200
Size,m	2.04x0.92x1.91	2.04x0.77x1.91

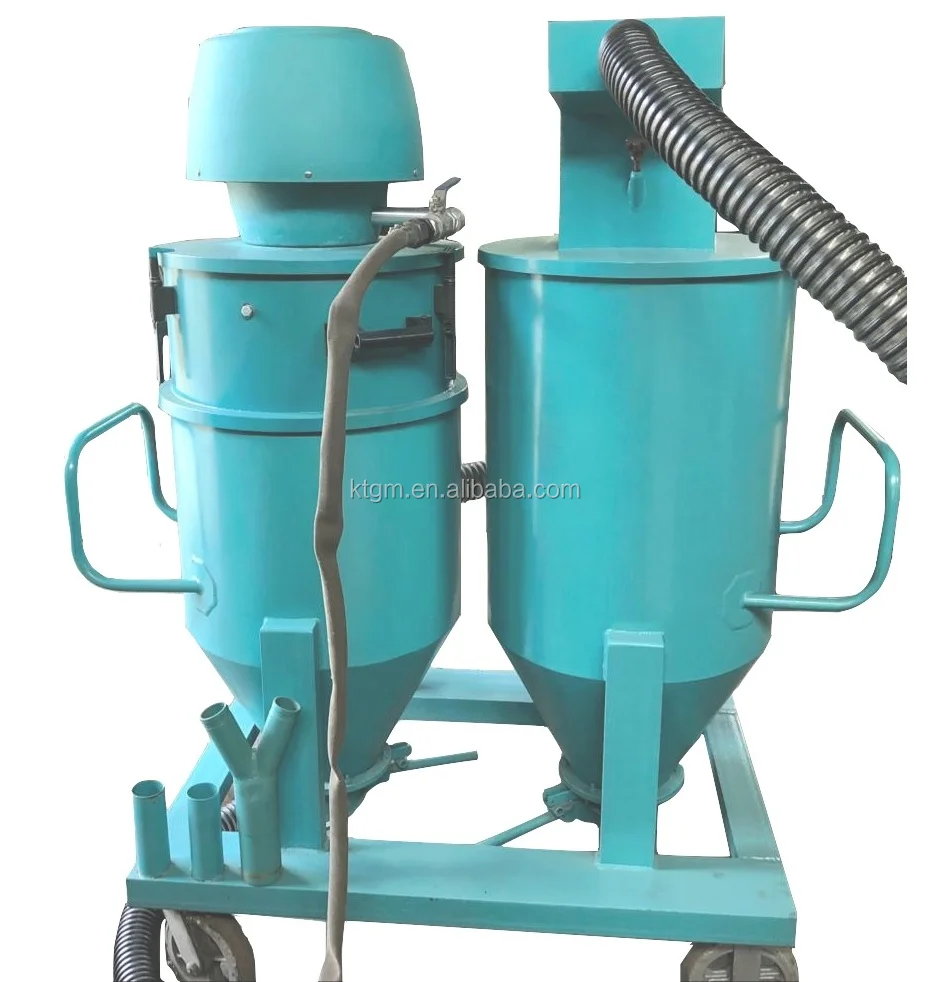

2/. Pneumatic Vacuum Abrasive Recycle Machines

Vacuum abrasive recycle machine is especially designed to be used together with portable blast machines, for recovery and recycling the abrasive, reduce the abrasive consumption, eliminate sweeping and minimize abrasive disposal costs. It is generally used for cleaning or bulk suction in any industrial application where the high capacity is required together with flexibility, mobility, reliability.

Features:

Powered only compressed air, efficient and reliable
No electrical source required.
Highly efficient cartridge filter dust
collecting.
Easy empty sand and dust.
Cart for easy movement.

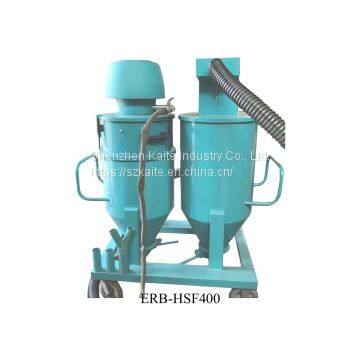

Model	ERB-HSF400
Abrasive cleaning capacity	2000kg/hour (steel grit)
Abrasive storage	400L
Ventilation	330CBM/H max.
Noise	70 dba
Vacuum	60.8KPa
Required compressed air	5.5CBM/min, 7bar.
Air-Inlet ID	1”
Suction hose ID	3”
Suction hose Length	20m
Dimension	1400x900x1800,mm
Weight	230kg
