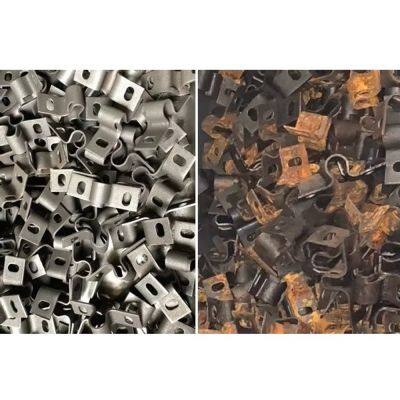

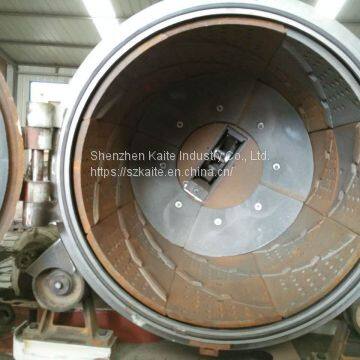

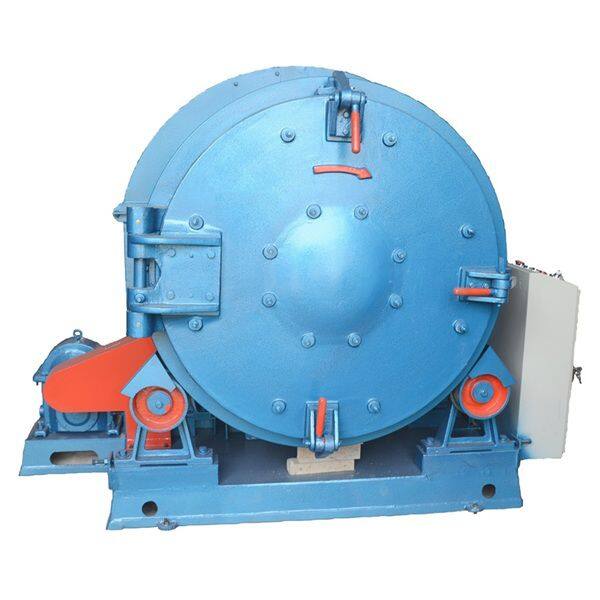

Rotary drum Shot Blasting Machine specially designed for economic and consistent treatment of small to mid-sized iron, steel, alloy and non-ferrous castings, forgings, heat treated parts, pressings and Fabrications components, which are small, flat and light and normally unsuitable for processing in tumble drum shot blast machines at the lowest possible cost.
Specifications | |||||
3110 | 3110 | 3110B | |||
1 | Drum Diameter | 1000mm | |||
2 | Drum Length | 800mm | |||
3 | Drum speed | 3.0 rpm | |||
4 | Drum Effective Volume | 100L max | |||
5 | Loading capacity | 300kg max | |||
6 | Processable component length | 400mm max | |||
7 | Processable single component weight | 15kg max | |||
8 | Production capacity | 600-1500kg/h | |||
9 | Cleaning period | Iron castings | 3-10 min | ||
Steel castings | 10-20 min | ||||
forgings | 4-8 min | ||||
10 | Drum | Motor | 1.1kw | ||
Speed | 48rpm | ||||
11 | Disc Bucket Elevator | Quantity | 16 | ||
Capacity | 0.4L | ||||
12 | Blast wheel | Motor | 7.5kw, 1450rpm | ||
Rotary | 2300rpm | ||||
Diameter | 427mm | ||||
Width | 62mm | ||||
Blast capacity | 100kg/min | ||||
Speed | 60m/s | ||||
Direction | Clockwise | ||||
Blast area | 60°~70° | ||||
Blast width | 100-200mm | ||||

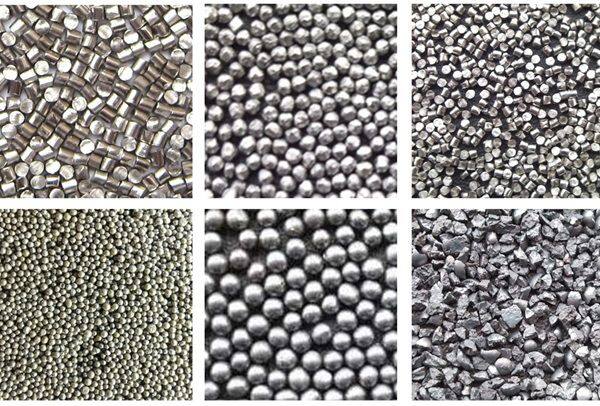

13 | Abrasive | Dia. | 0.8-1.2mm | ||
14 | Abrasive consumption | Iron castings | 5-10kg/T | ||
Steel castings | 10-20kg/T | ||||
forgings | 8-15kg/T | ||||
15 | Dust collector | Cyclone separator | Dry filter | ||
Ventilation volume, m3/h, approx. | 800 | 2000 | |||
Separate efficiency | 85% | 99% | |||
Separate motor | 1.1kw, 2825rpm | 2.2kw, 2900rpm | |||
Dust Cleaning | -- | 0.37kw, 1400rpm | |||
16 | Total power | 9.7KW | 11.17kw | ||
17 | Dimension, mm | 2078*2458*1861 | 3400x2458x3370 | ||
18 | weight | 3575kg | 4100kg | ||
