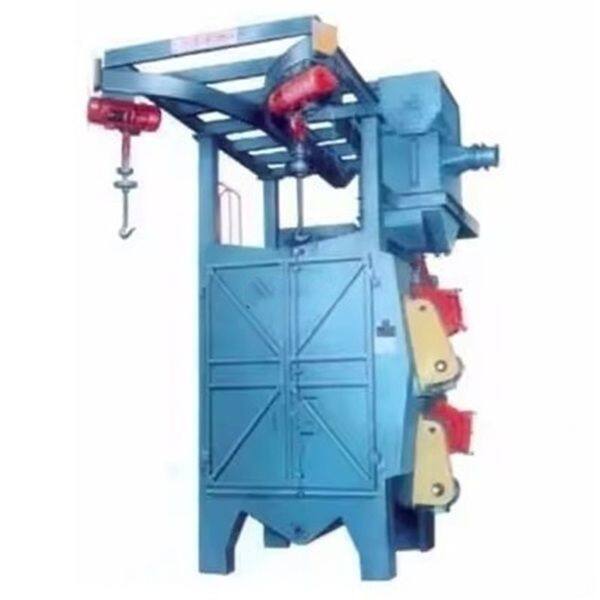

Overhead rail spin hanger(s) blasting machine are specially suitable for the treatment of sensitive parts, particularly complex, heavy, or large metal castings or forging parts without part-on-part contact possible. The parts are mounted on a hook and transported into the blasting chamber.
Multiply highly efficient blast wheels fixed on the machine housing make it possible to treat the components on all sides.
The rotating of the hanger(s) ensure that the blasting media, accelerated by the blast wheels, reache every component, providing the best possible uniform blasting result.
Model |
Unit |
RHSB376 |
RHSB376E |
RHSB378B |
RHSD378B |
RHSB378C |
RHSB378E |
|
Max part size ( Dia.×H) |
mm |
Φ600×1100 |
Φ800×1500 |
|||||
Hanger |
Number of hanger |
pc |
1 |
2 |
1 |
2 |
1 |
2 |
Max single hook loading |
t |
0.5 |
0.8 |
1 |
||||
Self-spin speed |
r/min |
2.8 |
||||||
|
Spin motor power |
kW |
0.75 |
||||||
Moving speed |
m/min |
20 |
||||||
Moving motor power |
kW |
[hanger] ×0.2 |
||||||
Lifting speed |
m/min |
8 |
||||||
Lifting motor power |
kW |
[hanger] ×1.5 |
||||||
Rail |
Straight |
Y |
Straight |
Y |
Straight |
Y |
||
Blast wheel |
Number |
pc |
2 |
|||||
Capacity |
kg/min |
2×120 |
2×180 |
2×240 |
||||
Power |
kW |
2×7.5 |
2×11 |
2×15 |
||||
Elevator |
Capacity |
t/h |
15 |
22 |
30 |
|||
Power |
kW |
1.5 |
4 |
|||||
Separator |
Capacity |
t/h |
15 |
22 |
30 |
|||
|
Screw conveyor |
Capacity |
t/h |
15 |
22 |
30 |
|||
|
Cleaning time for single hook |
Casting part |
min |
8~16 |
5~13 |
4～10 |
|||
Weldings or forging part |
6~14 |
4~11 |
3～8 |
|||||

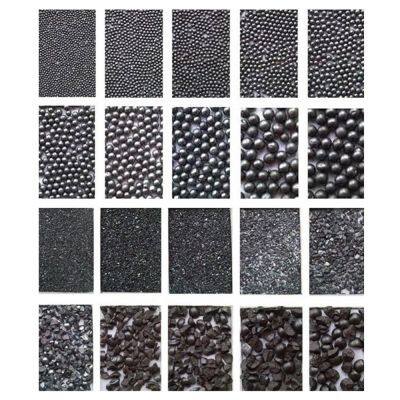

Abrasive |
First loading |
t |
0.5 |
1 |
||||
size |
mm |
φ1～2 |
||||||
Ventilation |
Total ventilation |
m3/h |
2800 |
5500~6200 |
8300 |
|||
Dimension |
mm3 |
4429×2850×3943 |
4325×2660×4959 |
5704×3805×5156 |
||||
Total power |
kW |
22 |
23 |
36.2 |
37.9 |
32.95 |
39.65 |
|
Weight |
t |
5.2 |
5.2 |
7.43 |
7.48 |
7.76 |
7.98 |
|
Remark: The final prices should be subject to the negotiated prices.
