Garnet Recycling Systems is used to reclaim and separate granular material. Main function is to remove all coarse contaminations like nails, nuts, stones, welding rod ends, cigarette butts, broken glass, wood, extract dust to get reusable material.

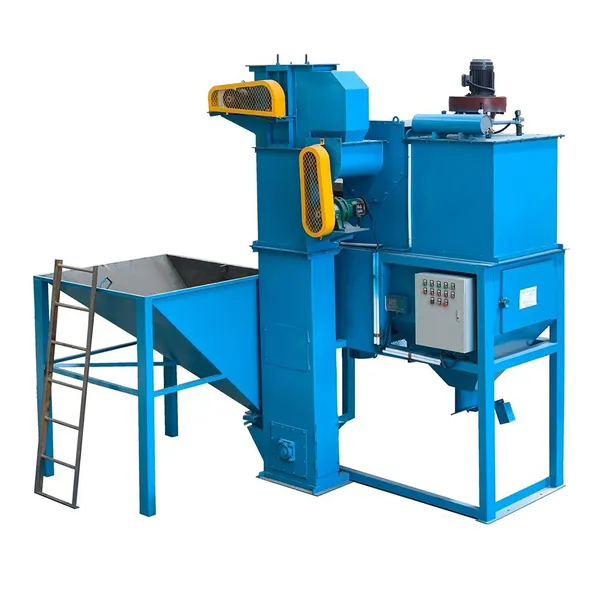

The system consists of inlet port, bucket elevator, screw conveyor, air separator, vibratory screen,sand hopper, cartridge filter dust collector with automatic reverse pulse dust cleaning, and electrical control system etc.
The contaminated abrasive garnet is loaded into the feed port, and then it is picked up by the bucket of the elevator and raised up by elevator and dropped into the inlet chute to the rotating screen.
The internal screw of the rotary screen remove the large contaminates to the end for disposal. Particles small than 4.8mm fall through the rotary screen mesh and form a curtain, falling onto the vibrating screen.
Air current generated by the built in dust collector are introduced to create a simple air wash. Bu adjusting the air flow, the amount of the undersized material or fines removed can be controlled. The dusty air is then drawn to the dust collector and the fines drop into the disposal container.
The garnet then falls through the vibratory screen. The particles smaller than 0.7mm will pass through this screen, and collected in the hopper below and can be emptied into a bulk bag or drum.
Dust collector has 4 Cartridge, 12 square meter filter area per cartridge. Reverse pulse cartridge dust collectors allow non-stop, high-production. The cartridges are automatically pulse cleaned for maximum filter efficiency.
Model |
RS5.0 |
Appplicable media |
|
Capacity: |
5000kg/hour max |
Elevator motor: |
2.2kW |
Screw conveyor motor: |
2.2 kW |
Vibratory screen motor: |
2x0.125 kW |
Dust exhauster motor: |
3.0kW |
Dimension: |
3000mm(W)×2600mm(L)×3700mm(H) |
Required compressed air: |
0.9m3/min, 0.6 Mpa. |
