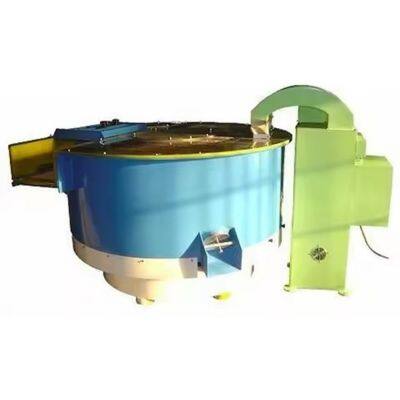

Help CenterAutomatic Centrifugal Disk Finishing Machine for Mass Finishing Deburring Polishing Tumble Machine
Related Products
-
Heavy Duty Tumble Bowl Vibratory Finishing Machine Vibratory Bowl Machine Polishing Machine With Work Pieces SeparationUS$ 1000 - 10000MOQ: 1 Set -
Automatic Double Batch Centrifugal Disc Finishing MachineUS$ 10000 - 20000MOQ: 1 Set
-
Centrifugal Dryer Hot Air Vibratory Belt Conveyor Rotary Conveyor for Mass Finishing DryingUS$ 1000 - 3000MOQ: 1 Set
-
Heavy Duty Tumble Bowl Vibratory Finishing Machine Vibratory Bowl Machine Without Parts Separation Tumble MachineUS$ 10000 - 20000MOQ: 1 Set
-
Circular Vibratory Finishing Machines With Part Automatic DischargingUS$ 1000 - 10000MOQ: 1 Set
Remark: The final prices should be subject to the negotiated prices.
Centrifugal Disc Finishing Machines are specially suitable for removal of strong burrs, intensive radiusing of small and MID-size parts as well as gently smoothing and high gloss polishing.
High speed processing allows for finishing performance up to 10 times faster than vibratory machine and over 20 times than barrel machine.
The working barrel is lined inside with hot poured high wear-resistant. Polyurethane for protracting working life.
Infinitely adjustable the spinner speed.
Low noise, movement smoothly and stably.

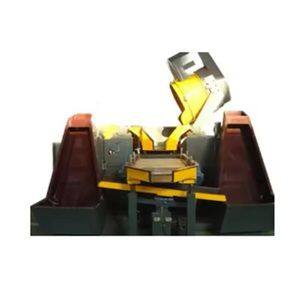

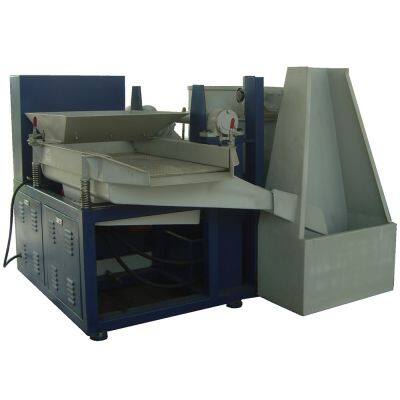

Automatic double disc centrifugal finishing machines combine two automatic disc finishing machine by sharing one intermediate hopper and one screening machine only. While one batch with finished parts is separated on the screening machine, a second batch is processed in the work bowl, save idle times for parts/media separation.
Model | LLF120A | LLF230A |
| |
Barrel capacity, L | 120 | 230 | ||
Working capacity, L | 60 | 150 | ||
Spiner motor | Power, kW | 5.5 | 7.5 | |
Speed, rpm | 1440 | 1440 | ||
Spiner disc speed, rpm | 0-180 | 0-160 | ||
Pivot/loader motor | Power, kW | 1.1 | 1.1 | |
Speed, rpm | 910 | 910 | ||
Vibratory motor | Power, kW | 2 x 0.12 | 2 x 0.12 | |
Speed, rpm | 1450 | 1450 | ||
Barrel pivoting, degree | 140 | 140 | ||
Dimensions,mm | 2060 x 1700 x 1200 | 3200x2700x1800 | ||
Weight, kg | 1200 | 2000 | ||
Remark: The final prices should be subject to the negotiated prices.
