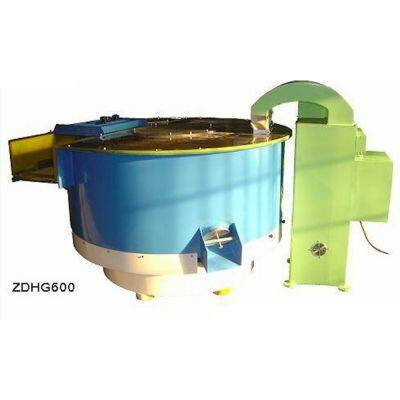

Vibratory Dryers are mostly suitable for drying small to mid-sized components requiring a clean surface without any water stains after wet mass finishing processing.
Features
Suitable for batch or continuous drying processing.
Integrated stand-alone heating unit consist of replaceable heating rods.
Moisture on the parts is absorbed by the heated drying medium.
Constant relative movement between parts and drying media also offering polishing effect on the parts. Built in spiral ramp working bowl PU coated.
Internal separator with manual operated flap for easily separation of components and drying media and discharging of parts automatically
Protective cover to decrease noise and dust.
Option: Pneumatic flap
Model |
ZDHG150 |
ZDHG200 |
ZDHG600 |
ZDHG900 | |
Capacity (L) | 150 | 200 | 600 | 900 | |
Loading Heigh (mm) | 750 | 750 | 960 | 1200 | |
Unloading Heigh (mm) | 750 | 650 | 800 | 1200 | |
Vibratory Motor | Power (kW) | 2.2 | 1.5 | 5.5 | 7.5 |
Speed (rpm) | 1440 | 1400 | 1440 | 1440 | |
Bowl Channel Width (mm) | 190 | 320 | 400 | 475 | |
PU Line Thickness (mm) | 20 | 20 | 30 | 30 | |
Heating Tube Power (kW) | 1.5 x 4 | 1x6 | 1.5 x 6 | 1.5 x 6 | |
Fan Power (kW) | 0.065 | 0.065 | 0.065 | 0.065 | |
Height (mm) | 850 | 920 | 1050 | 1550 | |
Weight (kg) | 300 | 550 | 1200 | 1900 | |
Installation Area (mm) | 1900 x 1000 | 1420x1270 | 2600 x 1700 | 3100 x 1700 | |
Remark: The final prices should be subject to the negotiated prices.
