Centrifugal Disc Finishing Machines are specially suitable for removal of strong burrs, intensive radiusing of small and mid-size parts as well as gently smoothing and high gloss polishing.
High speed processing allows for finishing performance up to 10 times faster than vibratory machine and
over 20 times than barrel machine.

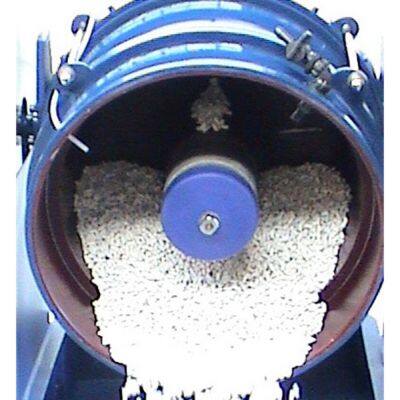

The working barrel is lined inside with hot poured high wear-resistant.
Polyurethane for protracting working life.
Infinitely adjustable the spinner speed.
Low noise, movement smoothly and stably.

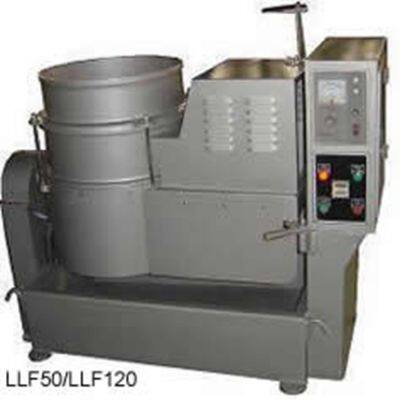

LLB50, LLF50 and LLF120, the working barrel can be manually pivoted 100º for easy discharging of medias and parts.

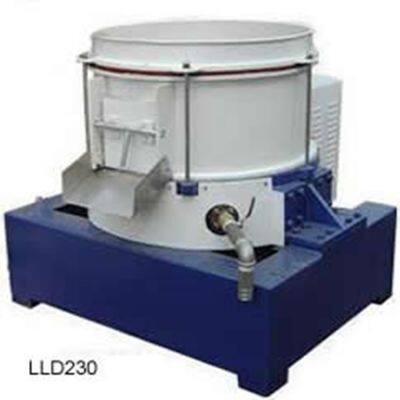

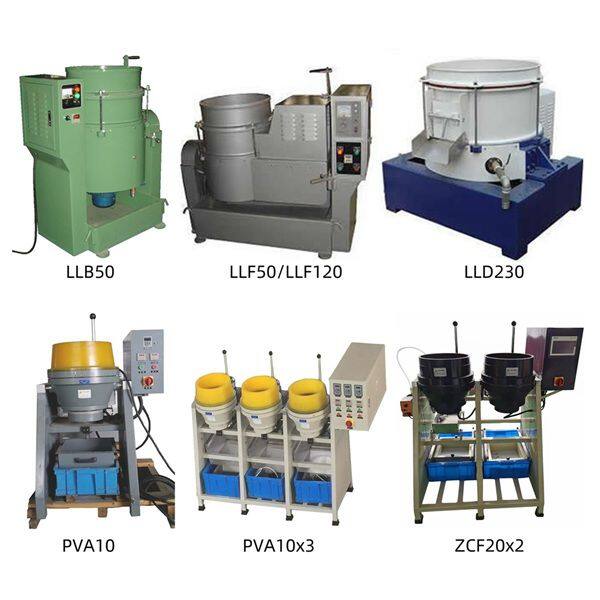

Model | LLB50 | LLF50 | LLF120 | LLD230 | |
Barrel capacity (L) | 50 | 50 | 120 | 230 | |
Working capacity (L) | 25 | 25 | 60 | 130 | |
Motor power (kW) | 1.5 | 1.5 | 4 | 7.5 | |
Motor speed (rpm) | 1500 | 125-1250 | 125-1250 | 940 | |
Spiner disc speed (rpm) | 50-180 | 50-180 | 50-160 | 0-140 | |
Discharge height (mm) | 280 | 280 | 320 | 550 | |
Dimensions (mm) | L | 1000 | 1390 | 1740 | 1620 |
W | 660 | 700 | 900 | 1008 | |
H | 1120 | 1240 | 1470 | 1135 | |
Operation noise (dB) max | ≤60 | ≤60 | ≤60 | ≤80 | |
Weight (kg) | 300 | 400 | 600 | 1100 | |
Remark: The final prices should be subject to the negotiated prices.
