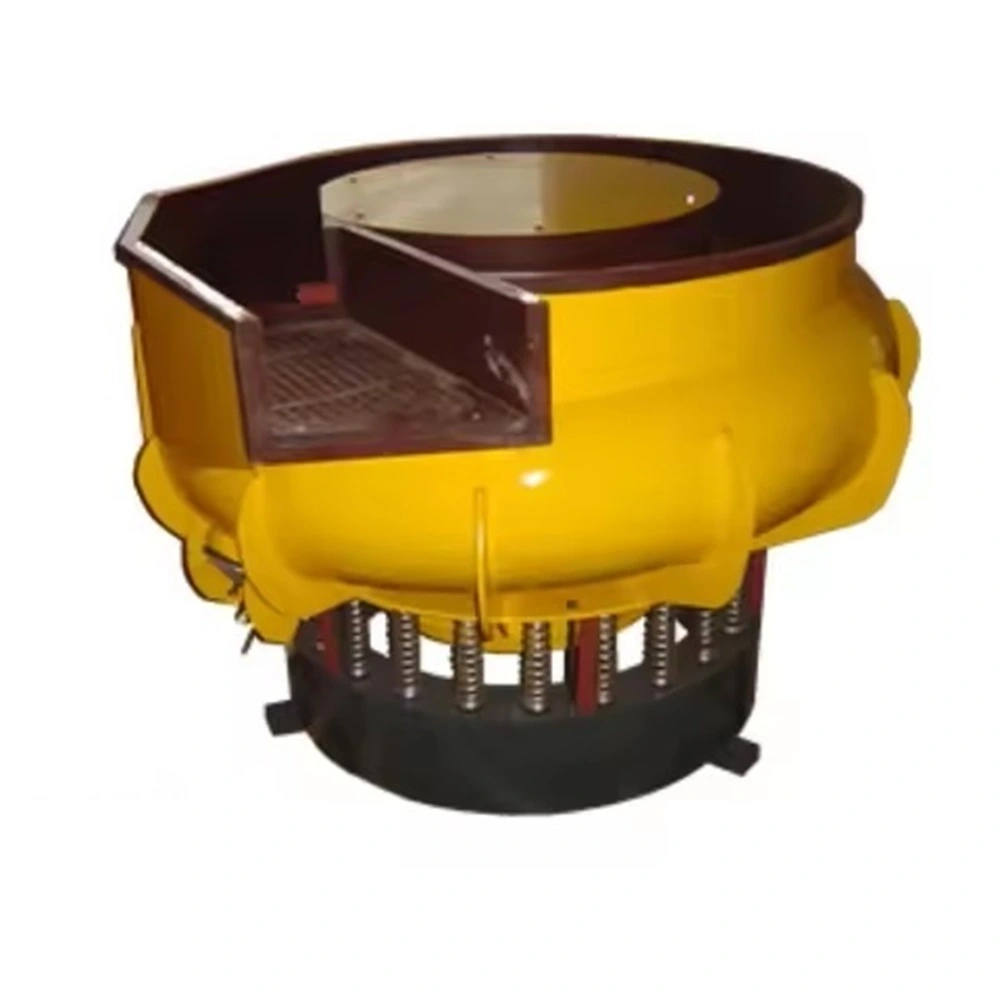

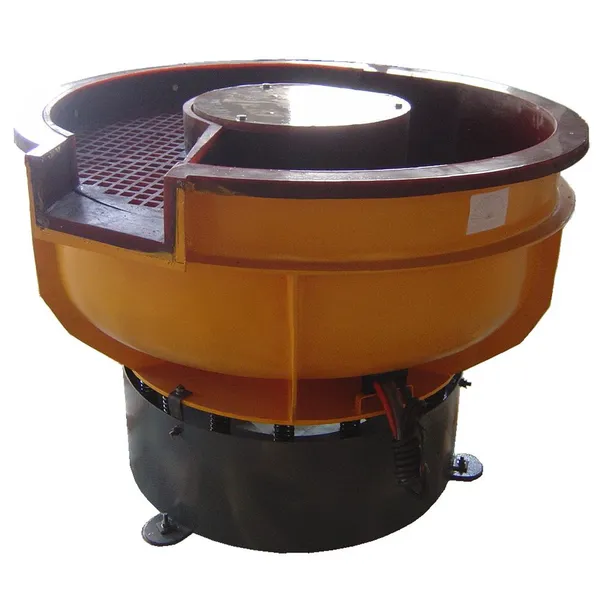

Circular Vibratory Finishing Machines are specially designed for processing of all types of components, from high gloss polishing to heave deburring, radiusing, chamfering, grinding, descaling, degreasing, washing...
Compact design.
High abrasive efficiency, good surface finishing result.
Heavy-duty electric vibration motor.
Adjustable vibration control.
High durable hot-poured polyurethane lined processing bowl to reduce the collide and prolong processing bowl working life.
LZG/LZGC (with cured wall,LZGS with straight wall) with an integrated screening system consisting of manually (standard option) or pneumatically activated separation flap and a built-in separation screen.Separating screen is changeable.
Manually (standard option) or pneumatically activated separate flap for automatic separation, media and components are delivered over the separation screen and the media returns through the screen to the bowl and components discharge to a collect bin or secondary operation. This series machines are suited for the processing of high production, small components, or flat, lightweight parts which easy stick together. They are also suitable for steel ball burnishing processing.

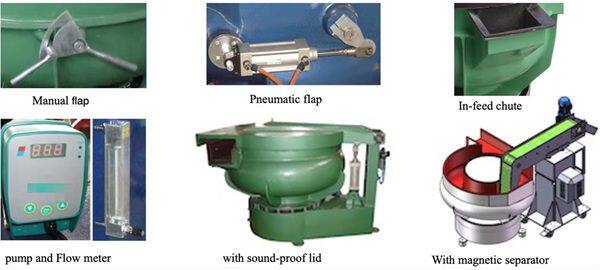

Option:
Variable frequency drive speed controller control for automatic operation.
Pneumatic operated separation flap for automatic operation.

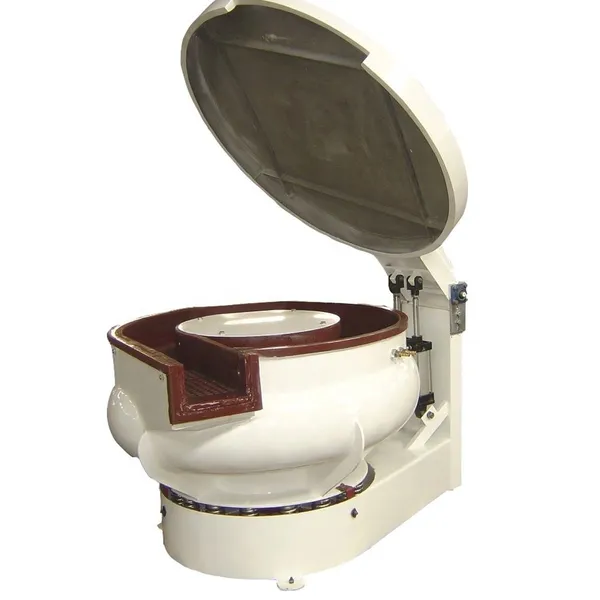

Sound-proof lid to reduce the noise
Compound metering system and flowmeter
In-feed chute (only for LZGS series) for connection with other machinery for automatic processing line.
Magnetic separator
LZGS | ||||||
| Model | Capacity (L) | PU (mm) | Power (KW) | Dimensions LxWxH (mm) | Weight (KG) |
LZGS100 | 100 | 20 | 1.5 | 1300x1150x860 | 340 | |
*LZGS100Z | 100 | 20 | 2.2 | 1300x1150x860 | 340 | |
LZGS150 | 150 | 20 | 2.2 | 1250x1200x1020 | 360 | |
LZGS200 | 200 | 20 | 3 | 1200x1200x1100 | 650 | |
LZGS300 | 270 | 22 | 3.7 | 1400x1350x1000 | 650 | |
*LZGS300Z | 270 | 22 | 5 | 1400x1350x1000 | 650 | |
LZGS400 | 480 | 24 | 5 | 1480x1430x1100 | 780 | |
LZGS600 | 660 | 26 | 5.5 | 2000x1800x1350 | 1400 | |
*LZGS600Z | 660 | 26 | 7.5 | 2000x1800x1350 | 1400 | |
LZGS900 | 900 | 26 | 9.0 | 2160x2153x1100 | 200 | |
LZGC | ||||||
| Model | Capacity (L) | PU (mm) | Power (KW) | Dimensions LxWxH (mm) | Weight (KG) |
LZGC100 | 100 | 20 | 1.5 | 1170x1100x950 | 320 | |
*LZGC100Z | 100 | 20 | 2.2 | 1170x1100x950 | 320 | |
LZGC200 | 200 | 20 | 3 | 1310x1150x950 | 400 | |
LZGC300 | 260 | 22 | 3.7 | 1480x1330x1050 | 650 | |
*LZGC300Z | 260 | 22 | 5 | 1480x1330x1050 | 650 | |
LZGC600 | 580 | 26 | 5.5 | 2000x1800x1350 | 1400 | |
*LZCC600Z | 580 | 26 | 7.5 | 2000x1800x1350 | 1400 | |

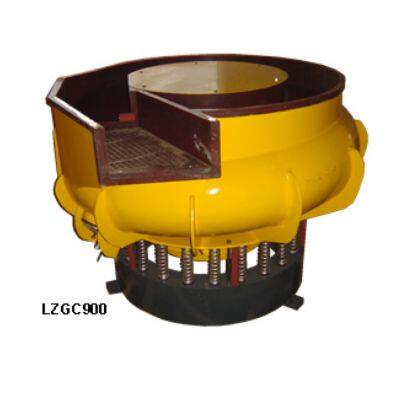

LZGC900 | 900 | 26 | 9 | 2200x2300x1550 | 2470 | |
