Remark: The final prices should be subject to the negotiated prices.

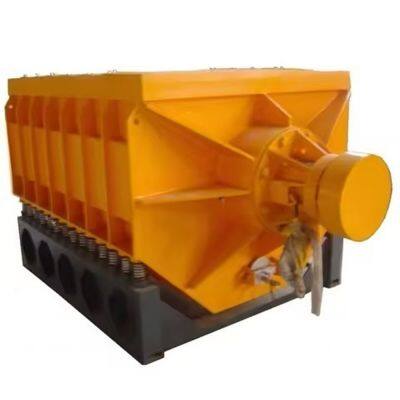

Tub vibratory finishing machines is suitable for processing medium and large sized delicate components with complex profile for deburring, chamferring, polishing, cleaning, burnishing, brightening, smoothing all kinds of metal, plastic and ceramic parts.
Tub vibratory finishing machine is also widely used for process marble stone to achieve antique appearance.
Feature
1. Driven by two vibratory motors, one each at the end of tub.
2. Tub can be divided into separate processing chambers by PU coated dividers to process delicate components to prevent part-on-part impact.
3. Tub is lined wear resistant polyurethane for longer working life
XZG |
Capacity L |
Tub Inter Dimension L x W x H (mm) |
PU mm |
Power Kw |
Overall Dimension L x W xH (mm) |
Weight Kg |
XZG15* |
15 |
440 x 208 x 215 |
10 |
0.37 |
526 x 380x 555 |
85 |
XZG100 |
100 |
664 x 400 x 460 |
20 |
2 x 1.1 |
1320 x 615 x 860 |
350 |
XZG140* |
140 |
610 x 500 x 515 |
20 |
1.5 |
7400 x 715 x 1100 |
250 |
XZG500 |
500 |
1310 x 690 x 700 |
25 |
2 x 2.2 |
2670 x 1000 x 985 |
700 |
XZG900 |
900 |
1200 x 900 x 850 |
25 |
2 x 4.0 |
2700 x 1050 x 1100 |
900 |
XZG1000 |
1000 |
2200 x 730 x 645 |
25 |
2 x 4.0 |
3662 x 970 x 1080 |
1600 |
XZG1200 |
1200 |
2000 x 750 x 854 |
25 |
2 x 4.0 |
3000 x 1050 x 1100 |
2100 |
XZG1800 |
1800 |
2020 x 1120 x 940 |
25 |
2 x 5.5 |
3500 x 1336 x 1256 |
2800 |
XZG2800 |
2800 |
1580 x 1510 x 1270 |
25 |
2 x 9.0 |
3300 x 1830 x 1740 |
4000 |
XZGC |
Capacity L |
Tub Inter Dimension L x D/W **x H (mm) |
PU mm |
Power Kw |
Overall Dimension L x W xH (mm) |
Weight Kg |
XZG240C** |
240 |
690 x 670/524 x 625 |
16 |
2 x 1.1 |
1880 x 880 x 920 |
450 |
XZG500C** |
500 |
1310 x670/ 524 x 625 |
16 |
2 x 2.2 |
2870 x 880 x 920 |
700 |
XZG750C** |
750 |
2000 x/670/ 524 x 625 |
16 |
2 x 2.2 |
3354 x 880 x 920 |
800 |
Remark |
* one motor only ** Processing tub with curved well. *** D=tub diameter, W=top open wide |
|||||
Remark: The final prices should be subject to the negotiated prices.
