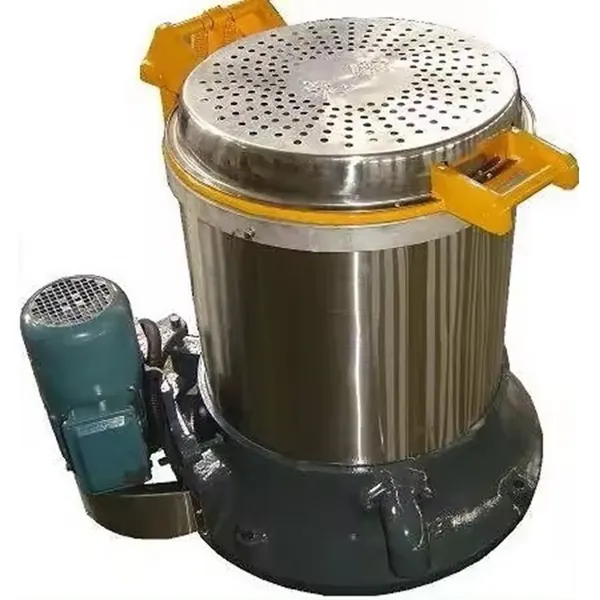

Centrifugal Hot air dryer is used to ensure the parts stain-free and corrosion free dried, following wet mass finishing processing, which is very important for the parts to be painted or plated as a final operation, most suitable for processing small parts.
Features
. Drying by hot air and vacuum.
. Inner centrifugal basket made of stainless steel with holes, water removed from the surfaces of the parts by centrifugal force which increases working efficiency.
. Heated air shortens the drying time and evaporates the moisture and protects parts from rust and corrosion.
. Protect device shuts off power automatically when processing finished or the cover opened
Option: Inverter variable speed control for more process options.

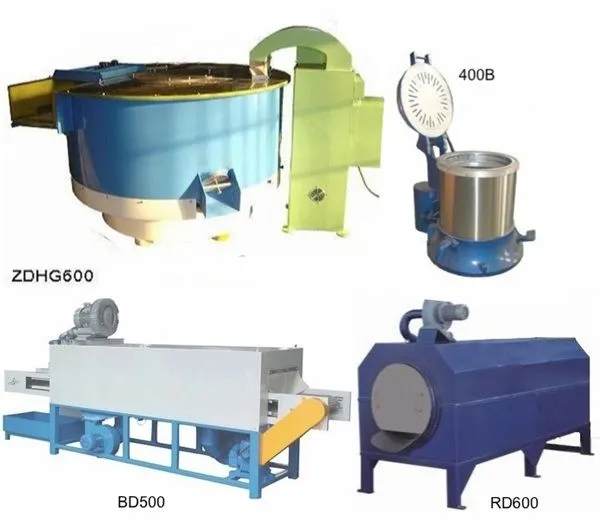

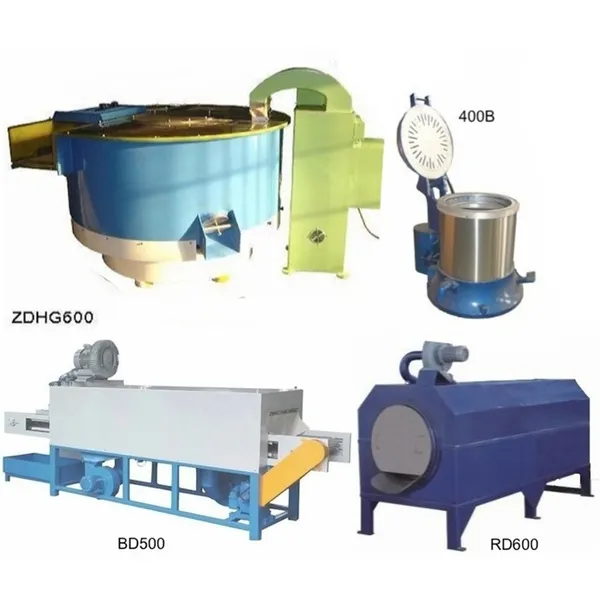

Model |
400B |
500B |
Drum, mm |
Dia.380xH280 |
dia480xH280 |
Drum Loading |
28kg or 1/3 drum high |
40kg or 1/3 drum high |
Drum Speed, rpm, max |
536 |
470 |
Motor Power, kW |
0.75 |
1.5 |
Calorifier Power, kW |
1.8 |
3.0 |
Temperature, °C |
50 - 80 |
50 - 80 |
Dimension, mm |
780x 600x 750 |
1000x 800x 860 |
Weight, kg |
161 |
242 |
Remark: The final prices should be subject to the negotiated prices.
