Home > Lights & Lighting > Lighting Fixtures > Dimmer > 12-48VDC 350mA 4 Channel RJ45 Dimmable Constant Current Dmx Decoder PX704

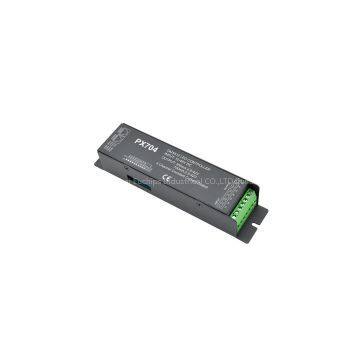

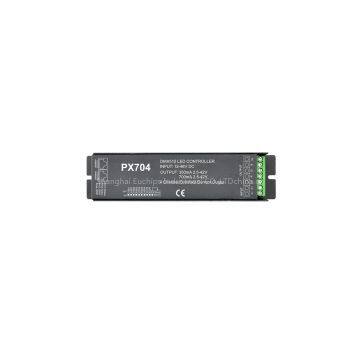

12-48VDC 350mA 4 Channel RJ45 Dimmable Constant Current Dmx Decoder PX704
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
EUCHIPS / OEM / ODM
Place of Origin:
China
Model Number:
PX704
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
12-24VDC 5A 4 Channel Rgb Constant Voltage Dmx Decoder PX24500DNegotiableMOQ: 1 Piece -
12-24VDC 180-360W RJ45 Dimmable Constant Voltage Dmx Decoder PX24507NegotiableMOQ: 1 Piece
-
6VDC DMX512 2 Channel Dmx Touch Panel Controller DMX-P06NegotiableMOQ: 1 Piece
-
100-240VAC 3.75A 3 Channel 12VDC 135W Dimmable Constant Current Dmx Decoder EUP135M-3W12V-0NegotiableMOQ: 5 Pieces
-
12-24VDC 216-432W 6A 3 Channel Constant Voltage Dimmable Dmx DecoderNegotiableMOQ: 5 Pieces
Brand Name
EUCHIPS / OEM / ODM
Place of Origin
China
Model Number
PX704
12-48VDC 350mA 4 channel RJ45 constant current dmx decoder PX704
Feature
1. Meet DMX512(1990) Standard
2. Dimming control of 256 levels of grayscale and full color driver
3. 4 channels of constant current output (350mA/700mA)
4. Over-temperature protection, output short circuit protection
5. Setting the lights DMX address freely
6. 350mA and 700mA can be setted by the Dip switch
Technical Parameter
Product Name: 12-48VDC 350mA 4 channel RJ45 constant current dmx decoder
Item: PX704
Channels: 4
Signal input: DMX-512/1990
Signal output: 350mA/700mA±5%/CH
Power supply: 12-48VDC
Output Voltage: 2.5-42VDC
Working tempeture: -20~85℃
Size: 176(mm)*40(mm)*35.5(mm)
Weight: 286g
More information at
