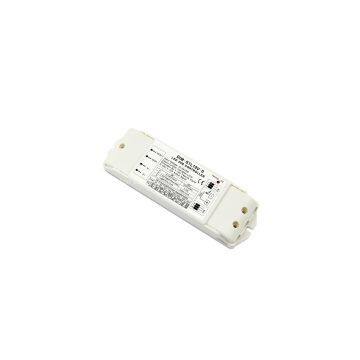

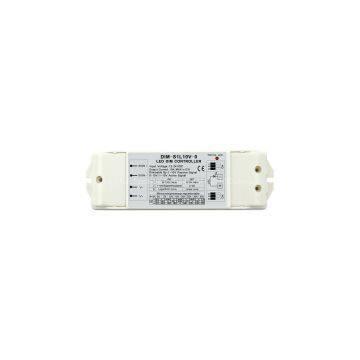

12-24VDC 120-240W 0-10V Constant Voltage Led Dimmer

12-24VDC 120-240W 0-10V constant voltage dimmer DIM-S1L10V-0
Features
1. Support a variety of analog dimming signal;
2. Support the short circuit, over-current protection and alarm function;
3. Support minimum brightness up-regulation function;
4. Support dimmer curve selection function;
5. More than kinds of functions can be selected by switch,please take the switch function tables as reference;
6.F unction default setting is: 0-10V, 0V 100% output Log Dimming Curve, Mini brightness no up-regulation.
Technical Parameter
Product Name: 12-24VDC 120-240W 0-10V constant voltage dimmer
Item: DIM-S1L10V-0
Supply voltage input range:12-24V
Output current ( 1 channel): 10A/ch
Over current protection: When the overcurrent insicator lights up red
Short circuit protection: When short circuit indicator lights up red
Minimum brightness level: 8 level
Support dimmer curve: 2 kinds
