No tension Knitted Washing Machine with open width feeding frame and drum drip washing box
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
- 2500A cardboard box printing machinery equipment Corrugated cardboard honeycomb cardboard kraft cardboard color inkjet printer
- Top Selling KINGT 1016 Small Flatbed UV Printer For Acrylic KT-board Advertisement sign board printing machine
- Super Discounts KINGT 2513G5 250*130 cm Large Format UV Flatbed Printer Machine Manufacturer Supplier
- OMAJIC digital uv 6090 inkjet printing machine for pen bottle phone case A1 small flatbed inkjet printers
- L1800 DTF Printer Machine
- Wholesale China Printer Black and white multi-function machine N510
Product Details
Brand Name: | KD-200 | Place of Origin: | China | Model Number: | KD |
Product Description
Certification:CE Mark

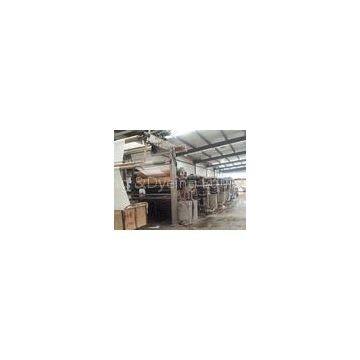

No tension Knitted Washing Machine with open width feeding frame and drum drip washing box
KD-200 type Knitted No-tension Washing Machine
Open width feeding frame — photoelectric translation centring machine — MEX812F high efficiency drum drip washing box*6—XLP681F two rollers seal type padder*6 — spray pipe — vacuum water suction device — TM05-02C pendulous doffing frame
Equipment performance
Machine width: 2000mm
Machine direction: left or right hand.
Machine speed: 20-30m/min(bleaching speed: approx. 8m/min)
Transmission method: AC frequency,PLC control
Water consumption: 0.5~1m³/h
Steam consumption: 150~200kg/h
Power consumption: 36kw/h
Equipment Structure Feauture:
TE08-01 open width feeding frame
type Steel frame,fabric tight deivce,gap bridge guide roller.
Photoelectric translation centring machine.
MEX812F high efficiency drum drip washing box
Box end plate is made of 3mm stainless steel plate,processed through laser cutting,NC machining,Surface shot blast.
Upper drive mesh drip washing roller (big diameter), 4 drip washing pipe are in the top of the mesh roller to flush the fabric,mesh diameter Ф750mm.
Two Down drive guide rollers(big diameter), guide rollers diameterФ250mm, two guide rollers are in the independent wash tank, lotion backflow to improve wash efficiency.Lotion is 130mm higher above the guide roller, this can ensure the adequate exchange between surface dyeing and lotion, and decrease cutting points distance (fabric enter into mesh roller) in max limit, keep sure fabric relax synchronous running.
Mesh roller and two big diameter guid rollers dragged by BWD2-43-1.5 motor reducer together,unique driven design ensures fabric relax synchronous running.
Excessive guide roller roller diameterФ150mm,2mm stainless steel plate and 2mm carbon steel composite coated roller, with light weight and good dynamic balance efficiency, the fabric can run in low tension.
Mesh roller, big diameter guide roller,excussive guide roller adopt stainless steel bearing block, external rolling bearings, Ф50mm mechnical seal, decrease fabric running tension in max limit.
Drip washing box inside with low tension tension frame,high precision pneumatic control valve,instrument, air cylinder control, ensure the fabric tension delivery siginal is true,in high speed,sensitive.
Tension frame actuating signal feedback through high precision FJS-R type angular transducer.
Drip washing box equipped with dynamic filter circulation box to ensure lotion clean and full washing of fabric, improve lotion use ratio, low energy and consumption.Circulation pumb model: centrifugal pipeline pumb 100BF100, flow rate: 100m³/h, 4KW.
Internal with Venturi direct heating pipe, uniform heat, reduce noise.
Drip washing box equipped with backflow mouth to achieve backflow box by box, pneumatic dewatering, fast and convenient.
Top open the door,easy to clean.
Temperature self control, 95—98℃±3℃,low energy and consumption, easy to operate.
Box side equipped with temperature gauge,surface and ground into 45°, easy to observe.
Left and right toughened glass door, convenient to observe internal condition.
Annular rubber sealing strips are made of silicon rubber with thermostability,good sealing,acid and alkali corrosion.
