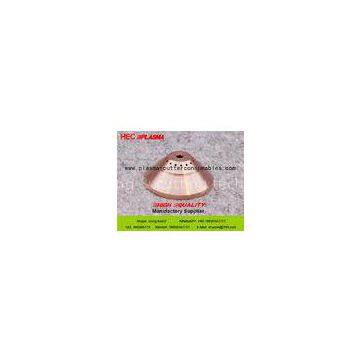

020424 Shield Cap Hypertherm Max 200 Consumables ROHS / SGS

020424 Shield Cap Hypertherm Plasma Consumables For Max200 Plasma Cutting Machine

          We can offer you all plasma consumables for hyptertherm, Kjellberg, Esab, Koike, Komatsu, Thermadyne, such as: electrode, nozzle, shield, swirl ring, inner cap, retaining cap, water tube, torch body and so on.

            We are a professional manufacturer of plasma cutter consumables, Our company is located in the Shanghai City, China ,it was established in 2007,but we had 10 years manufacturing experience in this field, the new factory covers an area of more than 10000 square meters .There are 50-100 workers and 20 research engineers.

Technical Support:

Plasma cutting technology

7 cutting torch and workpiece perpendicular to

If the cutting torch and the material is not vertical, will cut out the angled slot. From the two aspects to check if the torch and workpiece angle of 90 degrees.

8 confirm the cutting direction

The good side is always on the cutting surface along the direction of walking on the right side of the torch (assuming the use of vortex ring is right)

9 setting the initial arcing distance

In the mechanical cutting system based on the arc starting distance guide line (see Rev. Arc adjustment range table) manually adjust the initial starting arc distance. The locking voltage regulator is highly regulated until the test cut and other parameters are determined.

10 adjust cutting speed

Select the initial cutting speed according to the cutting diagram in the operation manual. First cut and observe the angle of the plasma arc cutting workpiece. And then adjust the cutting speed to get the correct cutting arc angle.
