Red Color, Steady Burning, Low Intensity Obstruction Light / Solar LED Obstruction Light for 45m Towers, Building

Red Color, Steady Burning, Low Intensity Obstruction Light / Solar LED Obstruction Light for 45m Towers, Building photo-1
Red Color, Steady Burning, Low Intensity Obstruction Light / Solar LED Obstruction Light for 45m Towers, Building photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
GS
Place of Origin:
China
Model Number:
GS-LS/PA
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
7 days
Brand Name GS
Place of Origin China
Model Number GS-LS/PA
Material Other, Aluminum alloy
Certification CE
Usage Other, warning aircraft
Battery Type Acid
Specifications Other, 36cd
Product Details

adopts low-light but high efficient solar panels integrated design, cooperate with solar dedicated lithium iron phosphate battery as power supply. The battery adopts advance power management system, which can provide good protection when battery ’s voltage and temperature too high or too low, so it can improve the battery’s service life efficiently.

Control circuit adopts micro-power consumption,which reduce controlling circuit ’s power consumption ; Light source adopts high efficient LED chip, which has specific of high Light intensity, low power consumption, long life and so on.
Products shell adopts adopts casted aviation aluminum alloy, this material has specific of light weight,corrosion resistance, it Is convenient to install and transport.
Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock.

Specification
LIGHTING
Effective Intensity
32.5cd
Compliant with
FAA L810, ICAO TYPE A / B
Emitting Color
Red (optional: yellow amber, green blue, white)
Operation Mode
Steady Burning / Flash Pattern
Vertical Divergence
>10°
Horizontal Out-put
360°
Light source
LED
Light lifespan
>100,000 Hours
POWER SUPPLY
Solar panel
2.5W, 9V
Battery
6.4V 6Ah, lithium iron phosphate battery
Power consumption
≤1W
solar panel lifespan
>20 Years
STRUCTURE
Lens
Polycarbonate, UV Stabilize, Corrosion Resistance
Body
Aircraft Aluminum, Die-casting
Temperature Range
-40℃~70℃
Wind Load
>80m/s
Overall size(mm)
Φ255 by 210
Installation size(mm)
Φ234mm by M8
Water-proof
IP65
Weight
>3.5KG

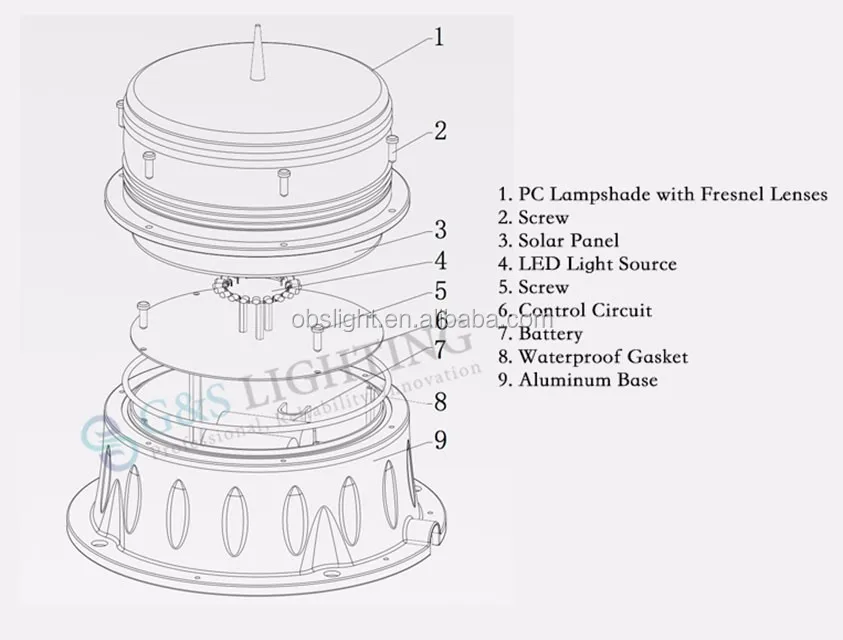

Structure drawing

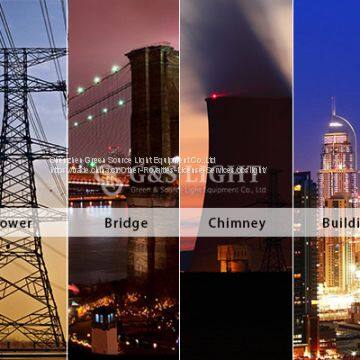

Applications
Related Products
FAQ
Q1. Can I have a sample order for Obstruction light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for Obstruction light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Obstruction light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on Obstruction light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
