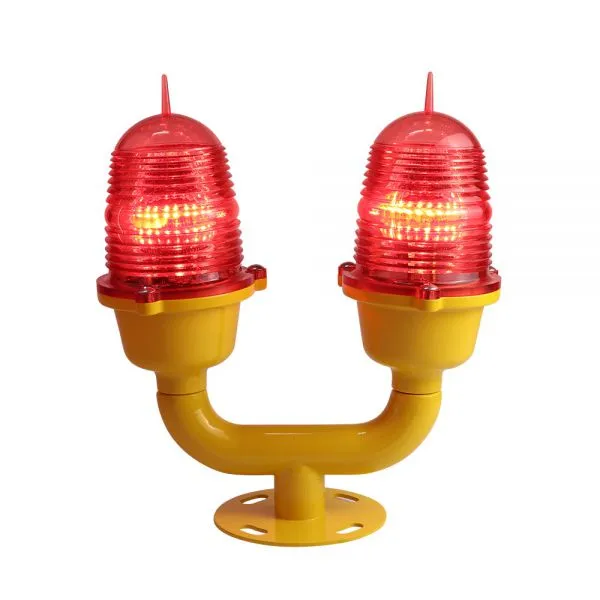

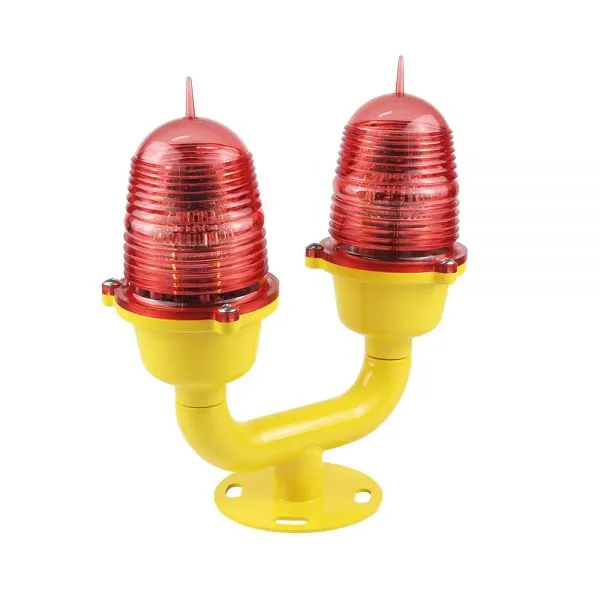

GS-LI/D Low-intensity Double Aviation Obstruction light ,Base with high intensity aviation aluminum casting,Fully sealed structure ;Light source adopt with independent research and development dedicated LED chip ,which have the specific of low power consumption and long long life ;Lampshade adopt with PC material ,it can resist corrosion ,anti-UV ,anti-shock ;management circuit with Strong lightning protection and With the surge protection device,which can adopt to extremity bad working environment .This lamp with photoswich ,it can turn on when light intensity less than 50LUX,and turn off when above 50Lux
Name |
Parameter |
FAA Classify |
L-810 |
Type |
GS-LI/D |
Power Supply |
Optional voltage: AC220V, AC120V, DC12V, DC24V, DC48V |
Power Supply Frequency |
50HZ～60HZ |
Average Power Consumption |
≤3W |
Working Mode |
Optional: steady burning, flashing, steady burning backup, flash alternately |
Light Intensity |
Type B ≥32.5cd Type A ≥10cd |
Horizontal Out-put |
360° |
10° |
|
Light Source service Life |
≥20 years |
Emitting Color |
Red |
Overall Size |
285mm×130mm×315mm |
Installation Size |
100mm×M10mm×4 |
IP Protection |
IP65 |
Optical Ambient Brightness |
50/100Lux |
Ambient Temperature |
-40℃～70℃ |
Weight |
3kg |
Anti-Wind Ability |
120m/s |
Function &Features
l Adopts Fresnel lens PC lamp shade ,converging angle meets FAA standard
l With automatically light control function that can change to working mode at rainy day and night.
l LED light source, its service life can up to 100000hours.
l Low voltage design, high safety degree for using.
l With the impact resistance, anti lightning, resistant to sunlight, anti snow, can resist typhoons, hail and other severe weather
l Possess lightning protection function.
l It can be added warning function at dry contact.
l Built-in switch function，can be adjusted 4 kinds of working mode
l No radio frequency (rf), no electromagnetic interference.
Application
l Building
l Airport
l High Mast lamp
l Chimney
l Bridge
l High-rise Buildings
l Iron tower
l Communication towers
