Description

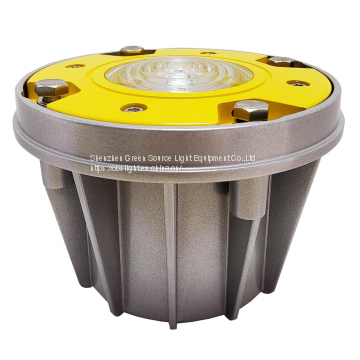

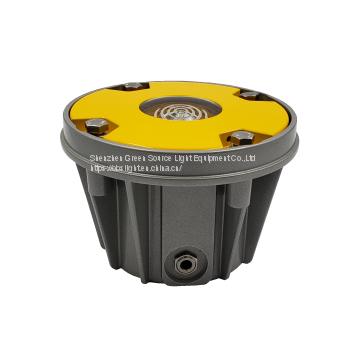

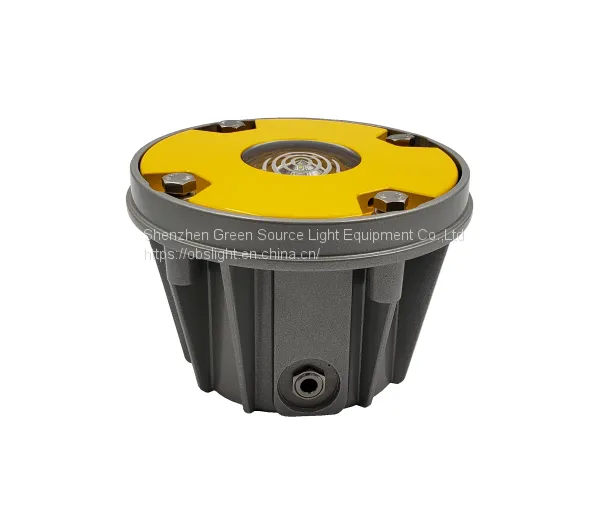

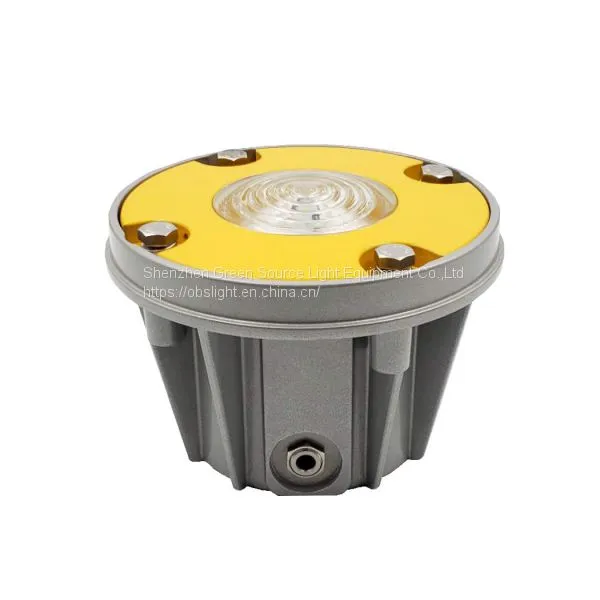

GS-HP/I Touchdown and Lift-off Area Light shell adopts aluminum aravity casting,it is good at waterproof and heat dissipation .the inner adopt LED light resource and cooperate with advanced optical glass design ,emitting angle meet FAA standard .The product is set in the area of heliport ground connection and lift off ,it can send out green light signal at night or during low visibility weather,which can indicate the edge location of helicopter ‘s ground connection and lift-off.
Name |
Parameter |
Type |
GS-HP/I |
Power Supply |
Optional voltage: AC220V, AC120V, DC48V |
Supply Frequency |
50HZ～60HZ |
Average Power Consumption |
≤10W |
Working Mode |
Steady-burning |
Max Intensity |
≥55CD |
Light Source Service Life |
≥20 years |
Emitting Color |
Optional color:Green & Orange |
Overall Size |
￠194mm（D）×140mm（H） |
Minimum Embedded Pit Size |
￠199mm×145mm |
IP Protection |
IP66 |
Ambient Temperature |
-20℃～60℃ |
Net Weight |
4.5Kg |
Humidity |
＜95% |
Altitude |
＜4500M |
.Function Features
l With work stability, strong anti-interference ability and shock resistance.
l Full sealed structure base, with superior waterproof performance.
l With storm surge protection device.
l Shielding sealed power supply, with excellent waterproof and anti-jamming.
Adopt independent encapsulation of high-power LED light source,which has the specific of high light brightness, and long service life.
