Introduction

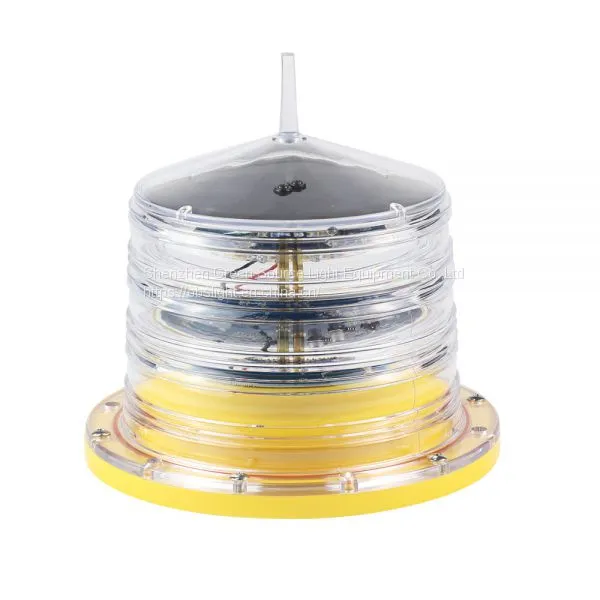

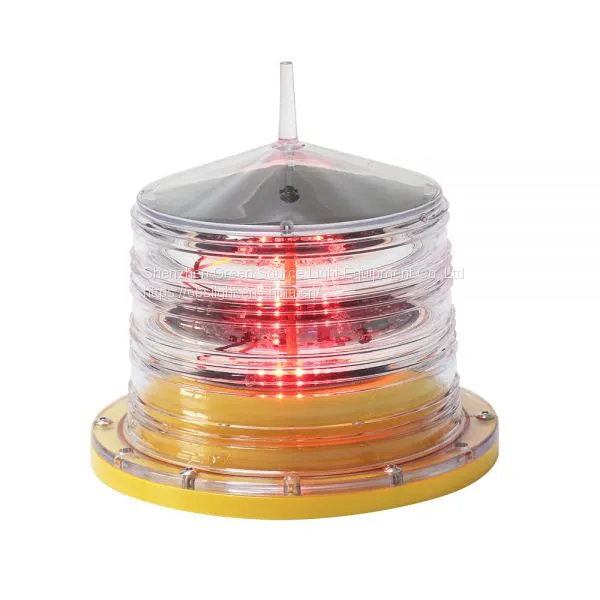

GS-LS-E Integrated Digital Marine Lantern is specially designed for special area such as sea, river way,lakes. Adopts special customized LED chip, which has the specific of high light intensity, low power consumption,long service life.Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock. The base adopts marine-grade dedicated plastic material,it can apply to seaways and chemical plant that have hostile and strong corrosive environment.
Parameter |
Name |
Parameter |
|
Type |
GS-LS/E |
Light Source Service Life |
>100000 hours |
Power Supply |
Class A high efficient solar panel |
Optional Emitting Color |
Optional color: Red, yellow, Green,White, Blue |
Battery capacity |
6.4V6AH |
Battery Type |
Replaceable lithium iron phosphate battery |
Battery life |
5-8year |
Solar panel voltage |
5V |
Solar panel power |
1.8W |
Solar panel life |
>30years |
Power consumption |
≤0.3W |
Vertical Divergence |
>8° |
Visual range |
Adjustable from 1~4NM |
Horizontal Out-put |
360° |
Light source |
LED |
Overall Size(mm) |
186mm（D）×190mm（H） |
Storage temperature |
-55℃～85℃ |
Installation Size |
￠170mm×M6 |
Working Temperature |
-55℃～85℃ |
Anti-wind Ability |
80m/s |
Weight |
1kg |
light intensity |
Red 20cd,yellow 20cd,green 20cd,white 32cd |
IP Standard |
IP68 |
Working mode |
350 flash characteristics |
Rainy weather Continuous working time |
> 30days( work 10 hours a day) |
Optically Controlled Ambient Brightness |
300±100LUX |
Optional |
GPS sync flash |
Function&Features
l Photocell can switch ON/OFF the light in rainy days or at night automatically.
l Standardization of optical design, high photoelectric conversion efficiency.
l The integration of the waterproof design, it can work in soaking in sea water, High protection grade IP68.
l Adopts special customized LED chip,transfer efficiency and service life is higher than normal LED.
l The lamp extend state switch, it can adjust steady or flashing light working mode base on requirement.
l Provides strong corrosion resistance, UV resistance, impact resistance.
l Adopts marine-grade dedicated plastic material,it can apply to seaways and chemical plant that have hostile and strong corrosive environment..
l With bird needle to prevent bird drop.
l No radio frequency (rf), no electromagnetic interference
l Steady working, low cost.
Application
l Sea ways
l River way,
l Lakes
l Mariculture zone
l Block
l Bridge
l Towersr
l Chimney
l Airport runway
l Heliport
l Traffic barrier
l Tower cranes
