Description

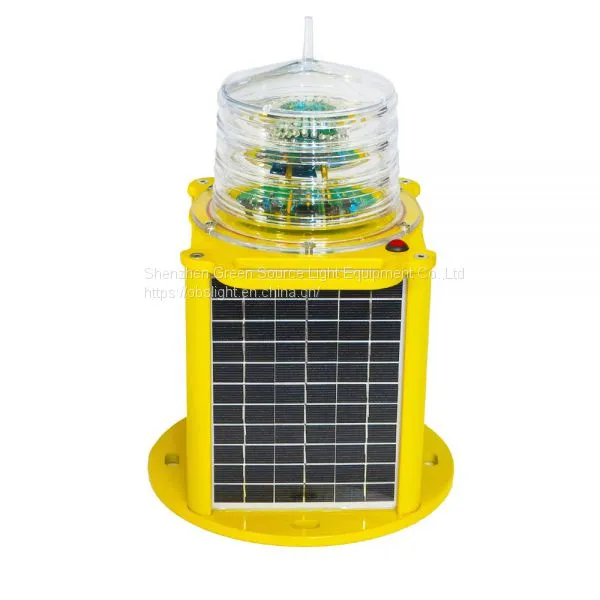

GS-LS/S LED Solar Powered Marine Lanterns used advanced structure design, adopts 4 groups of solar panels which can angle adjustable and high efficiently, co-operate with solar dedicated battery as power supply.Advanced power management system will be used to charge the power in a comprehensive protection in order to save the service life of battery when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.
The control circuit adopts the micro power control chip, which effectively reduces the static power consumption of the circuit.Its shell is die casting with aviation aluminum ,this material has the specific of light weight and corrosion resistance ,which can reduce the weight of light equipment, it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion anti-UV, anti-shock an so on.
Parameter |
Name |
Parameter |
|
GS-LS/S |
Light Source Service Life |
＞100000 hours |
|
Power Supply |
Mono-crystalline silicon solar panel |
Optional Emitting Color |
|
Solar panel voltage |
16.5V |
Solar panel power |
6W x 4pcs |
Battery Capacity |
12V12AH |
Battery Type |
Sealed Lead Acid Battery |
Power Consumption |
≤6W |
Vertical Divergence |
＞7° |
Visible Range |
6-10NM(s) |
Horizontal Out-put |
360° |
Light Intensity |
/ |
Overall Size |
￠260×420mm |
Light Source |
LED |
Installation Size |
Pitch circle 220 mm distributed 4M12 holes |
Working temperature |
-20℃~60℃ |
Anti-wind Ability |
80m/s |
Storage Temperature |
-40℃～70℃ |
||
Weight |
7.1kg |
Sun Switch Illuminance Threshold |
300LUX±100LUX |
Continuous Light-emitting time |
＞15days (10 hours a day) |
IP standard |
IP68 |
Worning mode |
350 light characteristics |
Optional function |
GPS sync flash |
Function&Features
l Continuous working time in rainy day can reach more than 15 days. (10 hours a day)
l Photocell can switch ON/OFF the light in rainy days or at night automatically.
l Standardization of optical design, high photoelectric conversion efficiency.
l Special LED chips for aviation obstruction lights, conversion efficiency is much higher than other general LED
l Provide ability of lightning protection, light fastness, resist snow and rain.
l Base on LED technology, its color meet the ALA Recommendations E-200-1 requirement.
l Bird spike against bird drop.
l No radio frequency (RF), no electromagnetic interference.
l Optional GPS, remote control function.
Application
l Sea buoy
l River way
l Shore beacon
l Fixed light pile
