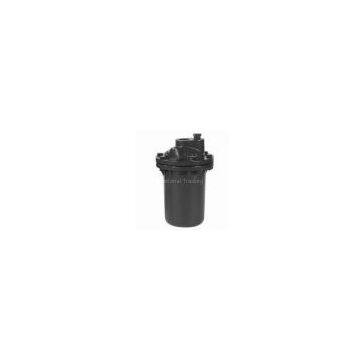

40 Series Cast Iron IB Steam Trap
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Thanswer | Place of Origin | China | |
| Model Number | 40 series |
Product Description
40 Series Inverted Bucket Steam Trap
Size: 1/2”~2”
Feature:
Max. Capacity: 9,000 Kg/HR
Working Pressure: 17 Kg/Cm2
Material:
|
Part |
Cast Iron |
Cast Steel |
|
Cap & Body |
Cast Iron |
ASTM A216.GR WCB |
|
Mechanism |
Stainless Steel |
Stainless Steel |
|
Bucket |
Stainless Steel |
Stainless Steel |
|
Seat & Valve |
Hardened S.S.440C |
Hardened S.S.440C |
|
Inlet Tube |
Steel Pipe |
Steel Pipe |
|
Gasket |
Compressed Non-Asbestos |
Compressed Non-Asbestos |
|
Strainer |
Stainless Steel |
Stainless Steel |
|
Bolts |
Carbon Steel |
ASTM A193 GR. B7 |
|
Nuts |
Carbon Steel |
ASTM A194 GR. 2H |
Trap No. 40 Series Dimensions (mm). MOP(kg/cm2). WT(kg)
|
Trap No. |
CONN. SE. |
A |
B |
MOP |
MT |
|
41 |
15 |
108 |
62 |
17 |
2.8 |
|
42 |
20 |
133 |
203 |
17 |
5.5 |
|
43 |
25 |
162 |
273 |
17 |
9.5 |
|
44 |
32 |
184 |
314 |
17 |
16 |
|
45 |
40 |
216 |
380 |
17 |
21.5 |
|
46 |
50 |
260 |
432 |
17 |
35 |
