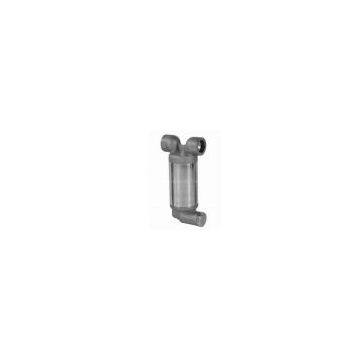

701S Series S.S. Inverted Bucket Steam Trap
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Thanswer | Place of Origin | China | |
| Model Number | 701S series |
Product Description
Model 701S Series S.S. IB Steam Trap
Size: 1/2”~1”
Features:
Max. Capacity: 470 Kg/HR
Working Pressure: 28 Kg/Cm2
Material:
|
Cap & Body |
Stainless Steel |
|
Mechanism |
Stainless Steel |
|
Bucket |
Stainless Steel |
|
Seat & Valve |
Hardened S.S 400C |
|
Inlet Tube |
Steel Pipe |
|
Strainer |
Stainless Steel |
|
Bolts |
Stainless Steel |
|
Nuts |
Stainless Steel |
Trap NO. 701S Series Dimensions (mm). MOP(kg/cm2). WT(kg)
|
Trap No. |
CONN. SE. |
A |
B |
C |
D |
MOP |
WT |
|
701S |
15.20.25 |
96 |
19 |
179 |
80 |
28 |
1.3 |
