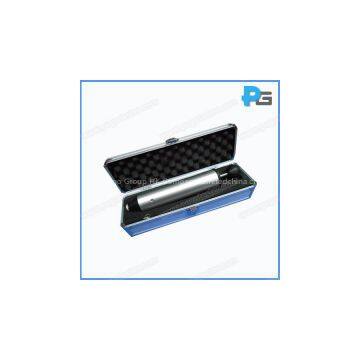

IEC60068-2-75 IK07 to IK10 Free Fall Steel Hammers

IEC60068-2-75 IK07 to IK10 Free Fall Steel Hammers thumbnail-1
IEC60068-2-75 IK07 to IK10 Free Fall Steel Hammers thumbnail-2
IEC60068-2-75 IK07 to IK10 Free Fall Steel Hammers thumbnail-3
IEC60068-2-75 IK07 to IK10 Free Fall Steel Hammers photo-1
IEC60068-2-75 IK07 to IK10 Free Fall Steel Hammers photo-2
IEC60068-2-75 IK07 to IK10 Free Fall Steel Hammers photo-3
US$ 300 - 300 MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Contact Supplier Request Quote Chat Now
Pego Group HK Company Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

IK07-IK10 Striking Elements

1.Introduction

IK07-IK10 striking elements are designed according to IEC60068-2-75 figure A.2, figure A.3, figure A.4, figure A.5, figure A.6. A striking elements falls freely from rest through a vertical height, the impact energy will be generated accordingly.

2.Parameter

●Model

Model (energy) 2J 5J 10J 20J 50J

Equivalent mass/kg 0.5 1.7 5 5 10

Height of fall±1%/mm 400 300 200 400 500

Diameter(mm) 35 60 80 100 125

●Material: stainless iron
