Home > Instruments & Meters > Test Instrument > Test Machine > 50KV/30KV/20KV/10KV/5KV AC DC Withstand Voltage Tester

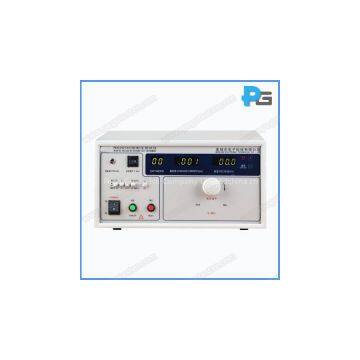

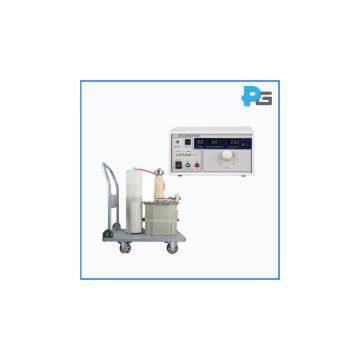

50KV/30KV/20KV/10KV/5KV AC DC Withstand Voltage Tester
US$ 500 - 800
MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
IEC60695-11-4 Horizontal and Vertical Flame Test ApparatusUS$ 3500 - 3800MOQ: 1 Piece -
Glow Wire LoopUS$ 500 - 800MOQ: 1 Piece
-
IEC60112 Tracking Index Test ApparatusUS$ 3500 - 3800MOQ: 1 Piece
-
JIS1091 Textiles Vertical Flammability Test ApparatusUS$ 3500 - 3800MOQ: 1 Piece
-
Electric Safety Test Equipment Leakage Current TesterUS$ 500 - 800MOQ: 1 Piece
Withstand voltage tester is applied to the fields of household appliance, motor, lighting appliance, compressor and etc. to test the break voltage, leakage current and other electronic safety performance. The tester meets the requirements of IEC60335,IEC60598 and IEC60950.
| Model | RK2674-50 | RK2674-100 | RK2674C |
| Output voltage | AC:0-50KV DC:0-70KV; | AC:0-100KV DC:0-140KV | AC:0-50KV DC:0-50KV |
| Leakage current | AC: 0-100mA,DC:0-10mA | AC:0-2/40mA DC:0-2/20mA | |
| Transformer Capacity | 5000VA | 10000VA | 2000VA |
| Wave sharp | 50Hz/60Hz sine wave | ||
| Accuracy of voltage | ±5% | ||
| Accuracy of current | ±5% | ||
| Time setting | 1s~100h 1-99s±1% | ||
| Power consumption | ≤30W | ||
| Power | AC 220V±10% 50Hz/60Hz | ||
