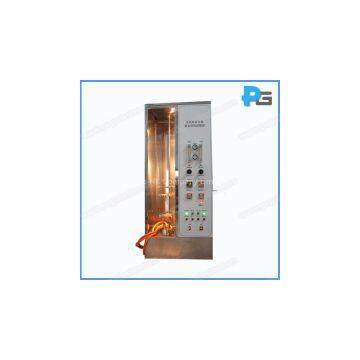

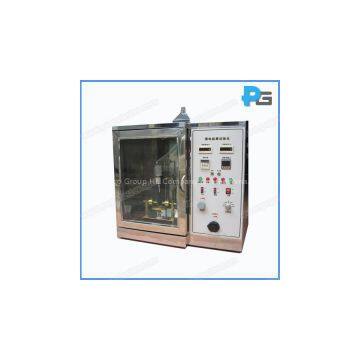

IEC60695-11-4 Horizontal and Vertical Flame Test Apparatus

‍‍‍‍UL94 Horizontal and Vertical Flame Test Apparatus‍‍

‍‍1.Introduction‍‍‍‍‍‍

HVR-4 Horizontal and vertical flame test apparatus is designed according to UL94, IEC60695-11-4 and IEC60695-11-3. The fire hazard is evaluated by burning rate, after glow time, after flame time and damage length of the specimen. HVR-4 horizontal and vertical flame test apparatus is applied to the V-0, V-1, V-2, HB and 5V materials, it is widely used in the R&D department, QC department and production department of lighting equipment, low-voltage apparatus, household appliance, motor and etc.. And also can be used in the industries of insulation material, plastic and other solid combustible material.

2.Parameter

●Burner: Φ9.5mm ± 0.3mm bunsen burner

●Dip angle:0⁰, 20⁰, 45⁰ (manual adjustment)

●Flame height: 20mm ± 2mm to 180mm±10mm (adjustable)

●Flame time: 0-999.9s±0.1s (adjustable)

●After flame time: 0-999.9s±0.1s (auto record, manual pause)

●After glow time: 0-999.9s±0.1s (auto record, manual pause)

●Fuel gas: 98%  methane

●Flow and pressure record: flowmeter and manometer

●Test temperature range: 0-1000⁰C

●Flame temperature required: heat up from 100⁰C±5⁰C to 700⁰C±3⁰C  within the time of 44s±2s and 54s±2s

●Thermocouple: diameter of 0.5mm K type thermocouple (2 pieces)

●Test background: black

●Volume of chamber: 0.75 CBM

●Dimension of apparatus: 1100mm(W)*700mm(D)*1300mm (H)

●Power supply: AC220V, 50Hz, ≤500W‍‍

‍‍‍‍‍‍‍‍
