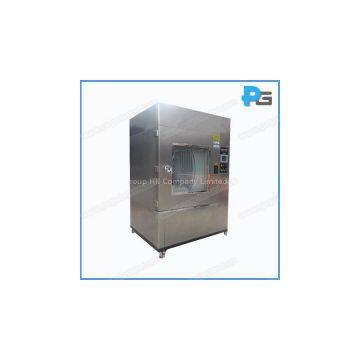

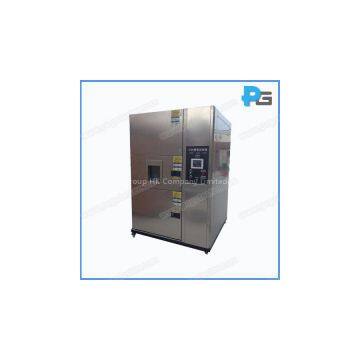

High-low temperature and humidity chamber
1.Introduction:
High-low temperature and humidity chamber is a kind of environment test chamber, designed according to IEC60068-2-1, IEC60068-2-2 and IEC60068-2-3. It can accurately simulate the conditions of low temperature, high temperature, low temperature & humidity and high temperature & humidity. It is applied to the industries of electronic, battery, plastic, food, paper, car, LED lamps and so on.
2. Specification:
Model 80L 120L 150L 225L 408L 800L 1000L
Working dimension(cm） 40*40*50 50*40*60 50*50*60 60*50*75 80*60*85 100*80*100 100*100*100
Interior dimension(cm) 100*87*170 105*87*175 105*97*175 115*97*190 135*115*195 145*130*210 147*140*210
Temperature range 0~+150℃ -20℃~+150℃ -40℃~+150℃ -60℃~+150℃
Humidity range 20%~98% R.H.
Accuracy: Temperature: ±0.01℃; humidity: ±0.1% R.H
Send Inquiry to This Supplier
