Help CenterIEC60068-2-75 Pendulum Impact Hammer Test Apparatus
Related Products
-
IEC62262 IK01 Spring Hammer for 0.14JUS$ 280 - 280MOQ: 1 Piece -
IK07 2J Steel Hammer According to IEC60068-2-75US$ 300 - 300MOQ: 1 Piece
-
2J to 50J IK Striking Elements According to IEC60068-2-75US$ 500 - 500MOQ: 1 Piece
-
IK01 to IK06 Low Energy Pendulum Test Device According to IEC60068-2-75US$ 2000 - 2000MOQ: 1 Piece
-
IEC60068-2-75 IK07 to IK10 Free Fall Steel HammersUS$ 300 - 300MOQ: 1 Piece

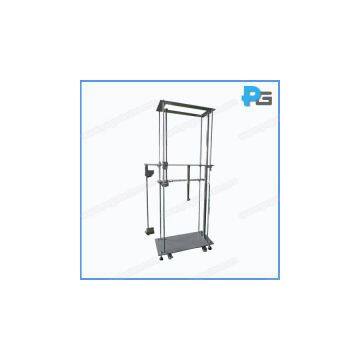

IK07-IK10 Pendulum Impact Hammer
Introduction:
This device is designed according to IEC60068-2-75-1997 and IEC62262, and can meet the test requirements of IEC60598, EN50102, GB2423.55-2006, GB20138-2006 and etc. It is apply to sheet metal for manchanical impact testing. The device can be adjusted back and forward, left and right, and the angle also can be adjusted.
Note:
The standard configuration includes 0.5kg, 1.7kg and 5kg hammers for IK 07 to IK09 testing, 10KG hammer for IK10 test is a optional device.
1. Impact energy/J: 0.2, 5, 10, 20, 50
2. Equivalent mass/kg: 0.5, 1.7, 5, 5, 10
3. Fall height±1%/mm: 400, 300, 200, 400, 500
Degrees of protection against external machanical impacts
IK01: 0.14J; IK02: 0.2J; IK03: 0.35J; IK04: 0.5J; IK05: 0.7J; IK06: 1.0J; IK07: 2J; IK08: 5J; IK09:10J; IK10: 20J
