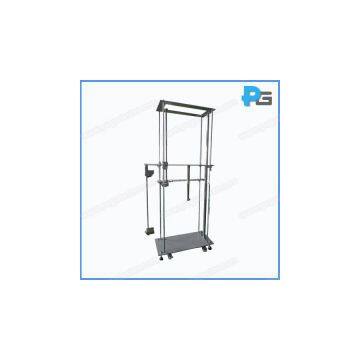

2J to 50J IK Striking Elements According to IEC60068-2-75
US$ 500 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Trading Company
Total Employees:
101 - 200 People
Main Markets:
North America, South America, Eastern Europe
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
IK01 to IK06 Low Energy Pendulum Test Device According to IEC60068-2-75US$ 2000 - 2000MOQ: 1 Piece -
IEC60068-2-75 IK07 to IK10 Free Fall Steel HammersUS$ 300 - 300MOQ: 1 Piece
-
IEC60068-2-75 Pendulum Impact Hammer Test ApparatusUS$ 4500 - 4500MOQ: 1 Piece
-
IEC62262 IK01 Spring Hammer for 0.14JUS$ 280 - 280MOQ: 1 Piece
-
IK07 2J Steel Hammer According to IEC60068-2-75US$ 300 - 300MOQ: 1 Piece
IK07-IK10 Striking Elements
1.Introduction
IK07-IK10 striking elements are designed according to IEC60068-2-75 figure A.2, figure A.3, figure A.4, figure A.5, figure A.6. A striking elements falls freely from rest through a vertical height, the impact energy will be generated accordingly.
2.Parameter
●Model
Model (energy) 2J 5J 10J 20J 50J
Equivalent mass/kg 0.5 1.7 5 5 10
Height of fall±1%/mm 400 300 200 400 500
Diameter(mm) 35 60 80 100 125
●Material: stainless iron
