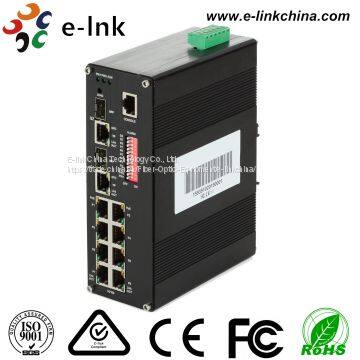

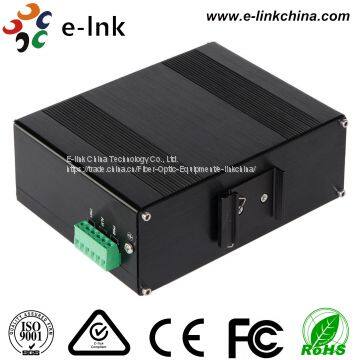

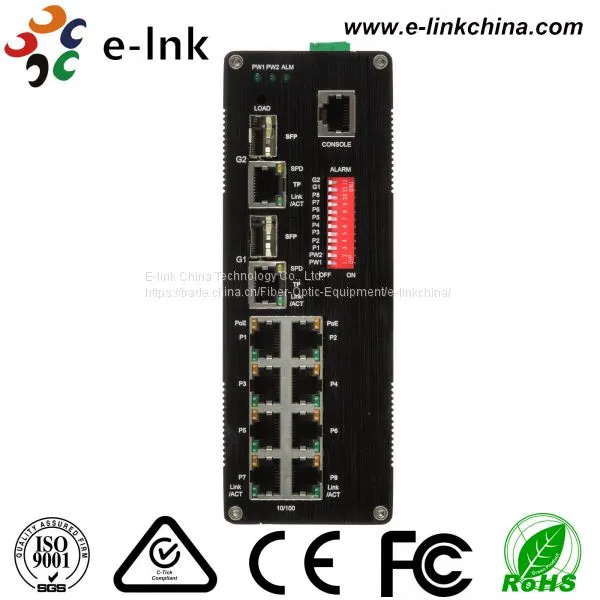

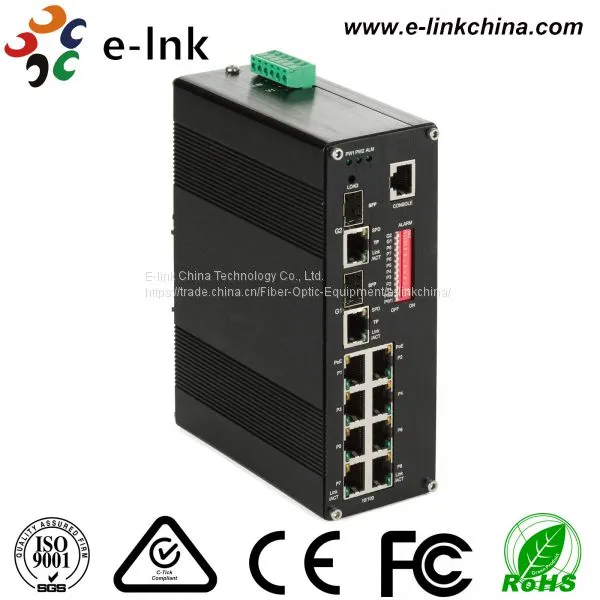

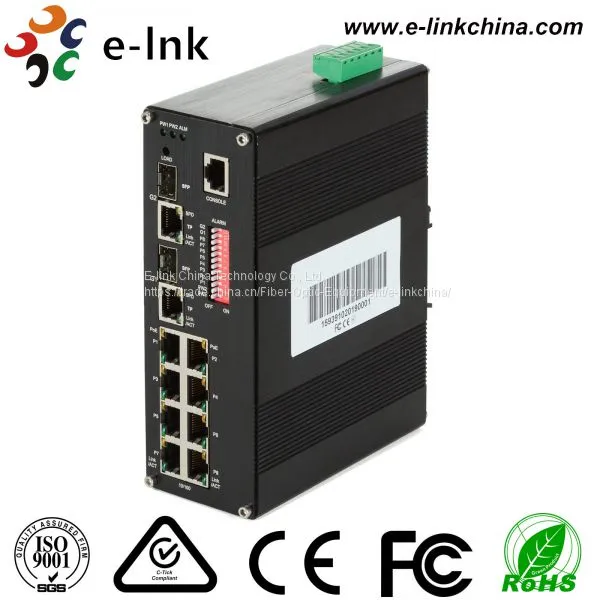

Hardened Managed 8-port 10/100Base-TX (PoE) + 2-port 10/100/1000Base-TX/SFP+1 Console Combo Ethernet Switch

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3af/at Power over Ethernet

Processing Type

Store-and-Forward

Switch Fabric

5.6 Gbps

Forward Filter Rate

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory

1M bits

Max Packet Length

1522 Bytes

Address Table Size

8K MAC Addresses

Connector

10 x RJ45

Optical Port

2 x SFP 1000Base-FX

Environmental

Operating Temperature:

-40°C to 85°C (-40°F to 177°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

24VDC or 48VDC (6-pin Terminal Block)

Power Consumption:

5W Max. 0.2A@24VDC

Port:

RJ45 Port 1 ~ Port 8

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power Status

Ethernet(Per Port):

Link/Activity, Speed

SFP:

Link/Activity

Dimensions (WxDxH):

59 x 120.5 x 165 mm

Weight:

1.0Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

EMS

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)
