Overview
The LNK-IMC2400GP-SFP product is a Self-Configured Hardened Ethernet switch which provides 4 port 10/100/1000Base-TX + 2x1000Base-FX SFP port. The 10/100/1000Base-TX ports supports PoE+ (Power Sourcing Equipment) and compliant with IEEE 802.3at.
Comply with IEEE 802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE 802.3x, and IEEE802.3at. The product will provide PoE power to any IEEE802.3at/af compliant network device. It supports IGMP snooping which significantly saves the network bandwidth and reduces network load. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Features
Automatically support IGMP (Multicasting)
Supports 10/100/1000Mbps-Full/Half-duplex,
Auto-negotiation, Auto MDI/MDI-X
Supports external 1000BASE SFP
Supports Daisy-Chain connection
Supports IEEE 802.3at PoE+(30W per port)
Supports Light Hardware IGMP V1, V2, V3
Supports Broadcast Storm Control
Supports Relay output for power failure
1M bits frame buffer memory
Supports 9K Bytes Jumbo Frame
Supports the transmission of extra-long VLAN packets
Supports Quality of Service (QoS) and ensuring the transmission of VoIP packets;
Supports Energy Efficient Ethernet IEEE802.3az
Redundant Power Inputs
Supports Wall-mount and DIN-Rail installation
Environmentally hardened -40°C to 80°C
(-40°F to 176°F) operating temperature
Warranty
5-Year Warranty

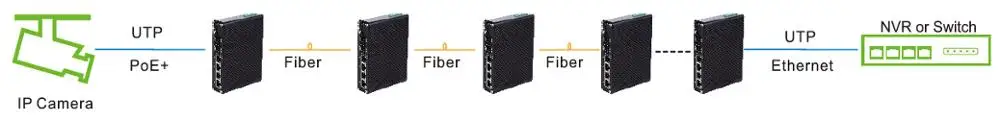

Typical Application
Technical Indexes
Ethernet | |
Standards: | IEEE802.3 10BASE-T |
IEEE802.3u 100BASE-TX/FX | |
IEEE802.3ab 1000BASE-T | |
IEEE802.3z 1000BASE-X | |
IEEE802.3q VLAN | |
IEEE802.3p QoS | |
IEEE802.1d Spanning Tree | |
IEEE802.3af Power over Ethernet | |
IEEE802.3at Power over Ethernet | |
Forward & Filtering Rate: | 14,880pps (10Mbps) |
148,800pps (100Mbps) | |
1,488,000pps (1000Mbps) | |
Packet Buffer Memory: | 1M bits |
Processing Type: | Store-and-Forward |
Max Packet Length: | 9K Bytes Jumbo Frame |
Address Table Size: | 2048 MAC Addresses |
Connector: | 4 x RJ45 |
Optical Port: | 2 x SFP 1000Base-X |
Environmental | |
Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
Relative Humidity: | 5% to 95% non-condensing |
Electrical and Mechanical | |
Input Power: | 2x48~57VDC (Terminal Block) |
Power Consumption: | 135W Max. 2.8A@48VDC (PoE in use) |
5W Max. 0.1A@48VDC (PoE not in use) | |
Standard: | IEEE802.3at |
PoE: | |
Port: | RJ45 Port 1 ~ Port 4 |
Max. Power per Port: | 30W Max per port (Alternative B Mode) |
Protection: | |
Power Input Overload: | Automatic Resettable |
Reverse Polarity: | Present |
LED Indicators: | |
Power: | Power Status |
Ethernet(Per Port): | Link/Activity |
SFP: | Link/Activity |
Dimensions (WxDxH): | 148 x 120 x 31 mm |
Weight: | 0.5Kg |
Casing: | Metal Case |
Mounting Options: | DIN-Rail / Wall-mount |
Regulatory Approvals | |
ISO9001 | |
EN55022 Class A, FCC part 15 Class A | |
Surge Protection: | |
RJ45: 1KV | |
Power: 500W | |
Ordering Information
Model | Description |
LNK-IMC2400GP-SFP | Self-configured Hardened 4-Port 10/100/1000BASE-T + 2-Port 1000BASE SFP Ethernet Switch with PoE+ |
SFP Options | SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
SFP module is to be purchased separately. | |
Mounting Options | Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
Power Options | 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block. 220W/4.6A 48VDC Power Supply. Open Wire for Terminal Block. |
Power Supply is to be purchased separately. |
